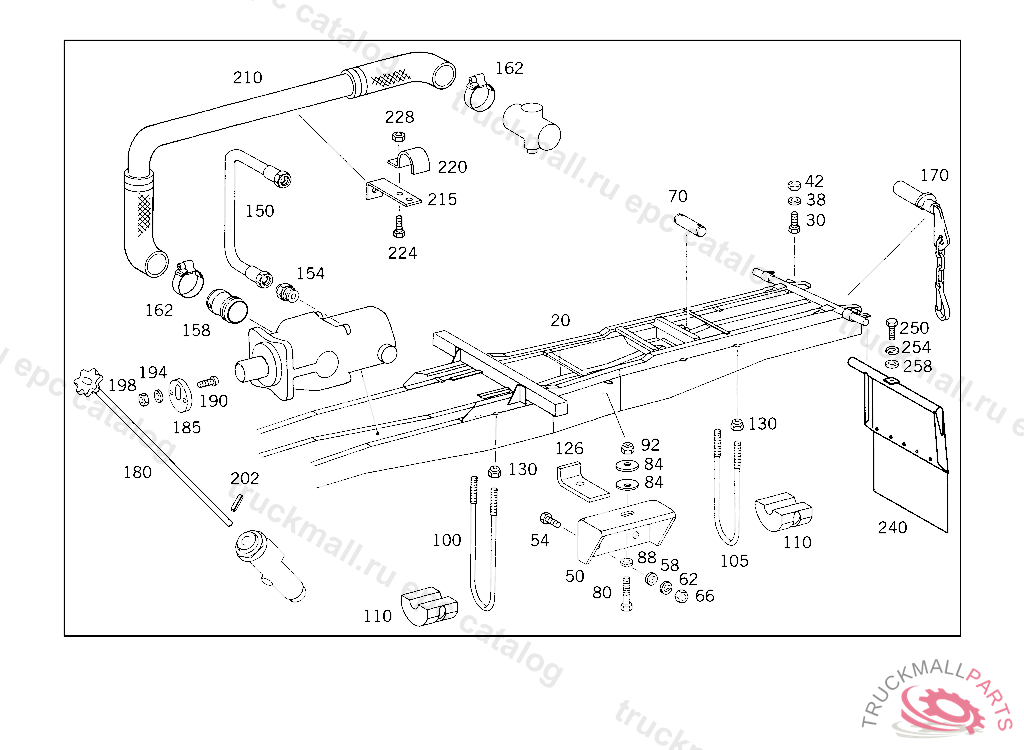

Поз.
Артикул
Описание
30
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
38
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
38
WASHER , Replaced By: N007349013005
42
NUT SUPPORT TO SIDE MEMBER
50
CONSOLE , Replaced By: A3438910431
54
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
54
SCREW , Replaced By: N308676014020
54
SCREW REAR EXHAUST PIPE TO MUFFLER
58
WASHER RADIATOR TO RUBBER MOUNTING
58
WASHER , Replaced By: N000125010532
62
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
66
NUT BRACKET TO SUPPORT AND TO END PIECE
70
PIN RETAINING ROPE TO DUMPER PLATFORM SUBSTRUCTURE,4 813549
70
PIN RETAINING ROPE TO DUMPER PLATFORM SUBSTRUCTURE,4 813548
80
SCREW AUXILIARY FRAME MOUNTING,4 659010
84
DISC SPRING CLAMP TO FRAME,5 521212
88
WASHER SPARE WHEEL CARRIER
92
NUT STEERING SUPPORT TO FRAME
92
NUT , Replaced By: N910113014000
100
CLAMP AT FRAME 385 MM,4 942834
100
CLAMP AT FRAME 385 MM,4 942834
105
CLAMP AUXILIARY FRAME 335 MM
110
BASE CLAMP TO FRAME,5 521212
110
BASE CLAMP TO FRAME,5 521212
126
ANGLE AUXILIARY FRAME
130
NUT BRACKET TO SIDE MEMBER
130
NUT , Replaced By: N910113014001
150
HOSE DELIVERY LINE TO PUMP,5 452682
154
FITTING DELIVERY LINE TO PUMP
158
CONNECTOR SUCTION LINE
158
FITTING , Replaced By: A0019909478
162
CLAMP
162
CLAMP , Replaced By: N000000000671
170
COUPLING PIN DUMPING PLATFORM MOUNTING
180
SHAFT DUMPER VALVE OPERATION
185
GUIDE DUMPER SHAFT, TO BE ADAPTED DURING ASSEMBLY
185
GUIDE , Replaced By: A3436470021
190
SCREW ATTACHMENT, MARKER LIGHT M 4X12
194
WASHER COVERING TO CYCLONE AIR TRAP
194
WASHER , Replaced By: N009021004207
198
RIVETED NUT AT CAB
198
RIVETED NUT , Replaced By: N913024004100
202
CLAMPING SLEEVE
240
MUD APRON LEFT
250
SCREW BRACKET TO TRANSMISSION
250
SCREW , Replaced By: N308676012038
254
WASHER
258
LOCK WASHER FITTING TO BRACKET
999
BRACKET FOR CHOCK
999
BRACKET , Replaced By: A3355800290
999
CONSOLE AUXILIARY FRAME MOUNTING,4 659011
999
SHIM FRAME,5 506056
999
SHIM AUXILIARY FRAME MOUNTING
999
SUBSTRUCTURE DUMPING PLATFORM MOUNTING 346.675, DUMPER PLATFORM AND COMPONENTS THEREOF ARE TO BE ORDERED FROM THE PLATFORM MANUFACTURERS,MESSRS. F.X. MEILLER,MUNICH4 659010
999
SUBSTRUCTURE DUMPING PLATFORM MOUNTING 346.675, DUMPER PLATFORM AND COMPONENTS THEREOF ARE TO BE ORDERED FROM THE PLATFORM MANUFACTURERS,MESSRS. F.X. MEILLER,MUNICH4 659011
999
MUD APRON , Replaced By: A3938800108
999
MUD APRON , Replaced By: A3938800208
999
SPACER TUBE AUXILIARY FRAME MOUNTING,4 659011
999
CLAMP CHOCK FIXTURE
999
MUD APRON RIGHT
999
COTTER PIN6.3X63 MM
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
WASHER SPARE WHEEL TO BRACKET
999
SCREW , Replaced By: N308676012031
999
SCREW , Replaced By: N308676012015
999
SCREW AUXILIARY FRAME TO FRAME M 14X360
999
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
999
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
999
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
999
WASHER TORSION BAR TO BEARING BRACKET
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
SCREW LEFT AND RIGHT CONSOLES TO CAB
999
SCREW , Replaced By: N308676012011
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
