Поз.
Артикул
Описание

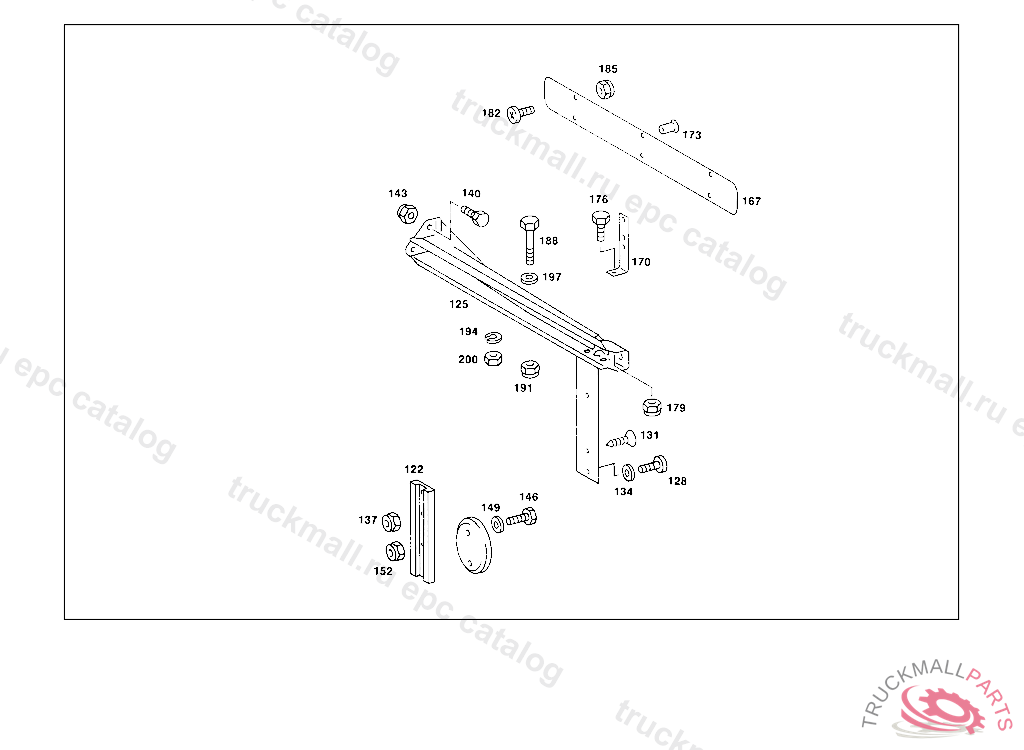

122
BRACKET REFLECTOR
122
BRACKET REFLECTOR
125
BRACKET TAIL LAMP,5 453766
125
BRACKET TAIL LAMP,5 453766
128
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
131
SCREW BRACKET TO TAIL LAMP BRACKET,5 453766
134
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
134
WASHER COMPRESSED AIR LINE TO BRACKET
137
NUT , Replaced By: N913002006009
137
NUT OIL TANK TO BRACKET
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
143
NUT , Replaced By: N910113010000
143
NUT STRAP TO BRACKET
146
SCREW , Replaced By: N304017006020
146
SCREW LICENSE PLATE TO BRACKET
149
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
149
WASHER COMPRESSED AIR LINE TO BRACKET
152
NUT VOLTAGE TRANSFORMER
167
NAME PLATE
170
SUPPORT
173
RIVET NAME PLATE TO TAIL LAMP BRACKET
173
RIVET EMBLEM TO MUD APRON
176
SCREW CLAMP TO BRACKET AND TO PIPE
179
NUT , Replaced By: N913004008001
179
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
179
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
182
SCREW LICENSE PLATE TO BRACKET M 6X18,4 707518
185
NUT , Replaced By: N910113006001
185
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
188
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
188
SCREW CONSOLE TO SIDE MEMBER
188
SCREW , Replaced By: N308676012012
188
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
188
SCREW , Replaced By: N308676012038
188
SCREW BRACKET TO TRANSMISSION
191
NUT SUPPORT TO SIDE MEMBER
194
LOCK WASHER
194
LOCK WASHER FITTING TO BRACKET
197
WASHER
200
NUT STRAP TO SUPPORT
999
SCREW AUXILIARY FRAME MOUNTING
999
PLATE AUXILIARY FRAME MOUNTING, NOT USED
999
BASE , Replaced By: A3878910498
999
BRACKET LINE TO SUBSTRUCTURE
999
PIPE CLAMP BRACKET TO CONSOLE
999
BRACKET , Replaced By: A3525422840
999
BRACKET MUD APRON
999
GUIDE , Replaced By: A3436470021
999
CLAMP AUXILIARY FRAME 335 MM
