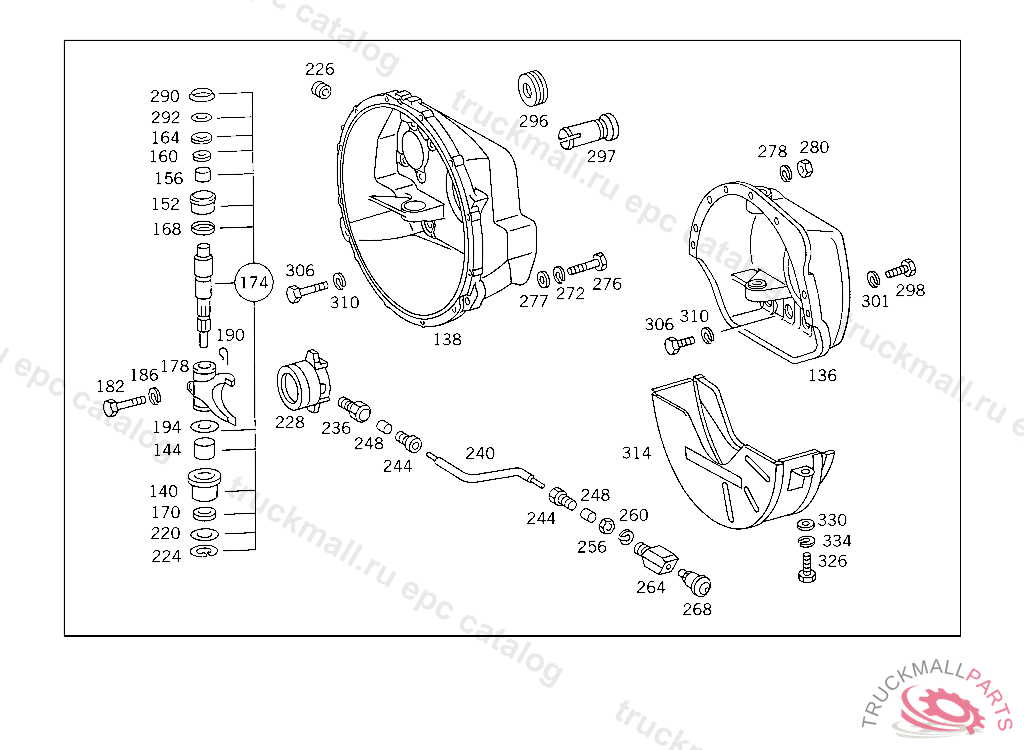

Поз.
Артикул
Описание
136
HOUSING , Replaced By: A3462502005, +001A6202500155
136
HOUSING , Replaced By: A3462502505
136
HOUSING BELL HOUSING WITH BUSHINGS
140
BUSHING RELEASE SHAFT,BOTTOM
144
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
152
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
152
BUSHING RELEASE SHAFT,TOP
156
BUSHING RELEASE SHAFT,TOP 35X39 MM
160
SEAL RING RELEASE SHAFT,TOP
164
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
164
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
168
COVER PLATE RELEASE SHAFT,TOP
170
SEAL RING BOTTOM
174
SHAFT (PARTS KIT),RELEASE SHAFT, DELIVER ADDITIONALLY:AS REQUIRED 1X 317 293 01 77-06 77
178
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
178
RELEASE LEVER CLUTCH ACTUATION
182
SCREW , Replaced By: N000933012102
182
SCREW , Replaced By: N304017012018
182
SCREW RELEASE LEVER TO SHAFT
186
LOCK WASHER FITTING TO BRACKET
190
SPRING RELEASE BEARING TO RELEASE LEVER
194
WASHER AS REQUIRED 0.80 MM
194
WASHER AS REQUIRED 0.90 MM
194
WASHER AS REQUIRED 1.00 MM
194
WASHER AS REQUIRED 1.10 MM
194
WASHER AS REQUIRED 1.20 MM
194
WASHER AS REQUIRED 1.3 MM
220
SPACER WASHER RELEASE SHAFT,BOTTOM
224
LOCK RING RELEASE SHAFT,BOTTOM
226
PLUG BELL HOUSING
226
PLUG BELL HOUSING
228
RELEASE BEARING
236
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
240
HOSE RELEASE COLLAR LUBRICATION 220 MM
244
UNION SCREW RELEASE COLLAR LUBRICATION
248
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
256
NUT , Replaced By: N308675014000
256
NUT , Replaced By: N308675014002
256
NUT RELEASE BEARING LUBRICATION
260
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
264
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
264
GREASE NIPPLE RELEASE COLLAR LUBRICATION
268
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
268
CAP RELEASE BEARING LUBRICATION
278
LOCK WASHERROCKINGER TYP 59 G140,59 G150
280
NUT , Replaced By: N308673016001
280
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
290
COVER RELEASE SHAFT,TOP,5 334244
290
WASHER RELEASE SHAFT,TOP,5 334244
292
SEAL RING LEVER TO RELEASE SHAFT,5 285575
296
PLUG BELL HOUSING
297
PLUG BELL HOUSING
298
SCREW , Replaced By: N304017008016
298
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
301
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
306
SCREW , Replaced By: N308676018010
306
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
310
LOCK WASHER BELL HOUSING TO TRANSMISSION
314
PROTECTIVE PLATE BOTTOM
326
SCREW LINE MOUNTING M 10X20
330
WASHER , Replaced By: N000125010532
330
WASHER RADIATOR TO RUBBER MOUNTING
334
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
999
SPRING , Replaced By: A0002523227
999
CLAMP RELEASE FLANGE TO RELEASE LEVER
999
HOUSING
