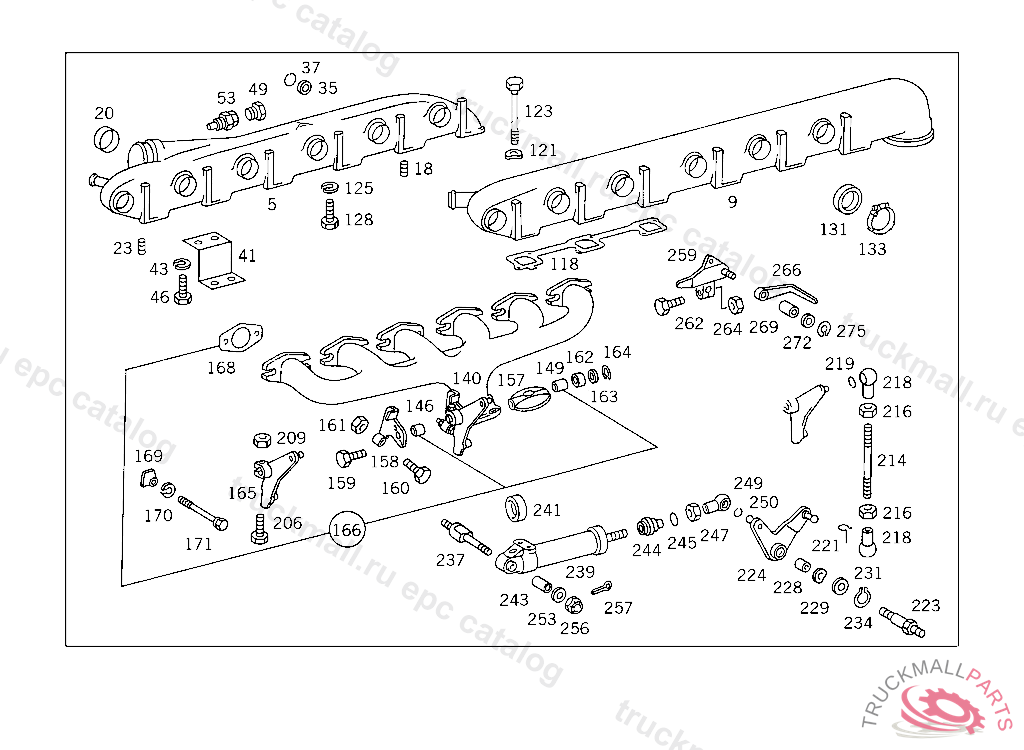

Поз.
Артикул
Описание
5
INTAKE MANIFOLD
18
THREADED INSERT
43
LOCK WASHER FITTING TO BRACKET
46
SCREW END PIECE TO EXHAUST PIPE M 12X30
49
SCREW PLUG AIR DEHYDRATOR
49
SCREW PLUG 4/2-WAY VALVE
53
INJECTION NOZZLE
118
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
118
GASKET , Replaced By: A3551410280
121
SPRING WASHER , Replaced By: N000137008212
121
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
123
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
123
SCREW , Replaced By: N910105008024
125
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
128
SCREW LINE TO SIDE MEMBER
131
SEAL RING
133
BRACKET
140
EXHAUST MANIFOLD
146
BUSHING INCLUDED IN REPAIR KIT
146
BUSHING , Replaced By: A4031440450
149
BUSHING
157
THROTTLE VALVE , 910,912-917,941-946,952 FROM ENGINE 046304,911,918 FROM ENGINE 049369 ORDER REPAIR KIT 355 586 00 14
158
CONSOLE
159
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
159
SCREW , Replaced By: N304017008016
160
SCREW ,938 089545
161
NUT
162
SPACER TUBE
163
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
164
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
165
LEVER
166
REPAIR KIT EXHAUST-BRAKE THROTTLE VALVE
166
REPAIR KIT , Replaced By: A3551400063
168
SEALING FLANGE , Replaced By: A3451420080
168
SEALING FLANGE , Replaced By: A3451420080
168
SEALING FLANGE , Replaced By: A3551420260
168
SEALING FLANGE EXHAUST MANIFOLD TO CYLINDER HEAD
168
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
169
CLAMPING PIECE , 027882
170
LOCK WASHER FITTING TO BRACKET
171
SCREW
206
SCREW SOLENOID VALVE TO TRANSMISSION CASE TOP COVER M 6X32,002,003,006-009 4 263014-4 422632,034,134 4 276784-4 422632
209
NUT BALL PIVOT TO LEVER
214
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
216
NUT BALL PIVOT TO LEVER
218
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
219
SNAP RING SPRING-LOADED PUSH ROD
221
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
223
PIN , 035612
224
LEVER , 035612
228
BUSHING
228
BUSHING
229
SPRING WASHER STEERING COLUMN BRACKET TO CAB
231
WASHER VIBRATION ABSORBER TO BRACKET
231
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
231
WASHER , Replaced By: N000433010510
234
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
234
LOCK RING SHIFT LEVER TO PIVOT PIN
237
PIN BRAKE CYLINDER AND ANGULAR LEVER TO OIL PAN
239
CYLINDER CLUTCH OPERATION, COMPONENT PARTS NOT AVAILABLE
241
GROOVED RING
243
BUSHINGTO 001 260 03 63
244
GUIDE ,938 089545
245
SEALING CORD
247
NUT STRAP TO SUPPORT,5 149419
249
BALL SOCKET POWER CYLINDER
250
SNAP RING
253
WASHER EXHAUST MUFFLER TO STRAP
253
WASHER , Replaced By: N000125008443
256
NUT FROM SHIFT LEVER TO P.T.O.
257
COTTER PINTO 345 460 94 05
259
LEVER
262
SCREW CAB FLOOR COVERING M 6X25
264
NUT BALL PIVOT TO LEVER
266
LEVER
269
BUSHING
272
WASHER VIBRATION ABSORBER TO BRACKET
272
WASHER , Replaced By: N000433010510
275
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
999
INJECTION NOZZLE , ON ENGINES HAVING STARTER PILOT
999
CYLINDER
999
GUIDE , Replaced By: A0004310549
999
LEVER , 035611, Replaced By: A3551400245, +001A3551440274, +001N000433015002, +001N000471015000
999
CLAMPING PIECE , 027881 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3461420012, +001A3463020222, +001A3469900719
999
EXHAUST MANIFOLD , Replaced By: A3461401409
999
THROTTLE VALVE , 910.912-917,941-946,952 UP TO ENGINE 046303,911,918 UP TO ENGINE 049368, Replaced By: A3551440013, +001A3551440014
999
PIN , 035611, Replaced By: A3551440274, +001A3551400345, +001N000433015002, +001N000471015000
999
SHAFT , Replaced By: A3551440014, +001A3551440013
999
LEVER , Replaced By: A3264300223
999
INTAKE MANIFOLD , Replaced By: A3461403301
999
INTAKE MANIFOLD , Replaced By: A3461404501
999
BRACKET , 044037
999
BUSHING , Replaced By: A3551440850
999
SHAFT
999
LEVER , Replaced By: A3551400345
999
SEAL RING , Replaced By: A3559970145
999
SCREW , Replaced By: N914126008002
999
SCREW , Replaced By: A3469900719, +001A3461420012, +001A3463020222
999
SCREW , Replaced By: A3469900819
999
SHAFT , 910.912-917,941-946,952 UP TO ENGINE 046303,911,918 UP TO ENGINE 049368, Replaced By: A3551440014, +001A3551440013
999
THROTTLE VALVE , 910.912-917,941-946,952 UP TO ENGINE 046303,911,918 UP TO ENGINE 049368, Replaced By: A3551440013, +001A3551440014
