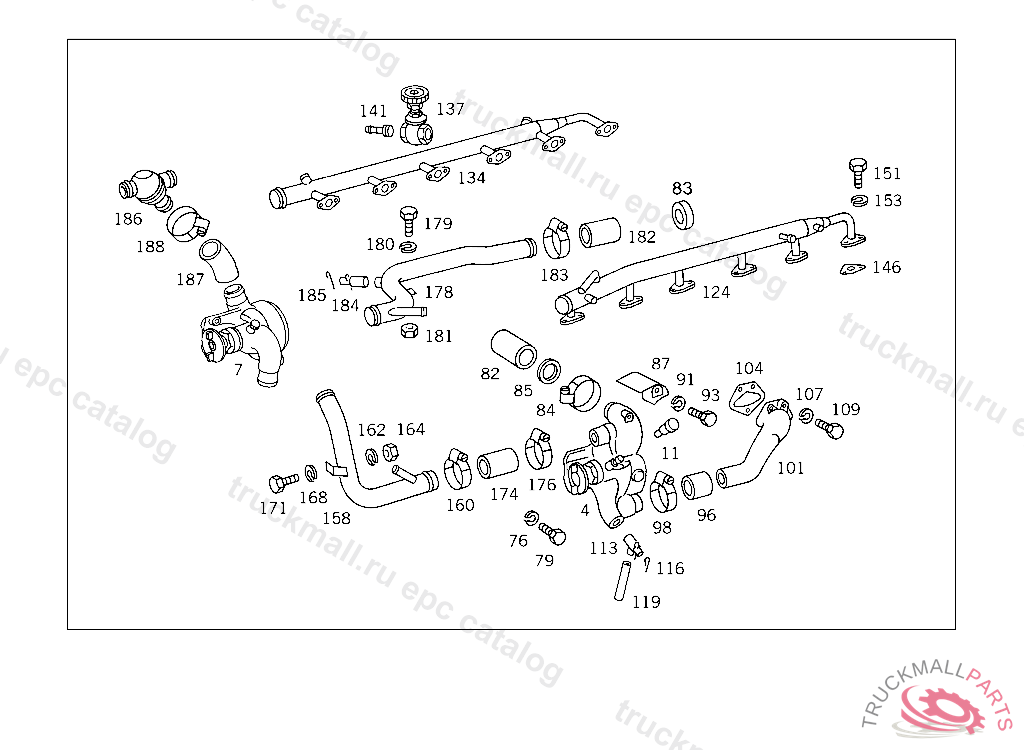

Поз.
Артикул
Описание
4
WATER PUMP , 056064
11
BUSHINGTO 314 200 06 01,000067
11
GREASE NIPPLE
76
LOCK WASHER FITTING TO BRACKET
79
SCREW BRACKET TO TRANSMISSION
82
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
84
CLAMP HOSE FASTENING 50-70X13 MM
84
CLAMP , Replaced By: N000000000672
87
COVER PLATE
91
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
93
SCREW , Replaced By: N304017008016
93
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
96
HOSE FROM ENGINE TO TRANSMISSION
98
CLAMP , Replaced By: N000000000672
98
CLAMP HOSE FASTENING 50-70X13 MM
101
CONNECTOR
104
GASKET CONNECTOR TO CYLINDER CRANKCASE
104
GASKET , Replaced By: A3602030280
107
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
109
SCREW VALVE TO BRACKET, Replaced By: N304014008002
109
SCREW VALVE TO BRACKET
113
VALVE ,4 263013
116
SPRING ,4 263013
119
HOSE
146
GASKET , Replaced By: A3559970049
146
GASKET
151
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
153
SCREW , Replaced By: N304017008021
153
SCREW PIPE CLAMP
158
LINE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3462000852
160
CLAMP MANUAL CONTROL TO BODY, 002221
162
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
164
NUT
174
HOSE RETURN LINE TO THERMOSTAT, ORDER BY THE METER
176
CLAMP
176
CLAMP , Replaced By: N000000000671
186
THERMOSTAT ELEMENT
187
HOSE FEED AND RETURN LINE CONNECTION
188
CLAMP
188
CLAMP , Replaced By: N000000000671
999
THRUST RING , Replaced By: A0002010463
999
SEAL , Replaced By: A0002013719
999
SEAL , Replaced By: A0002016619
999
SEAL , Replaced By: A0002017219
999
SEAL , Replaced By: A0002015719
999
SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002018019
999
SEAL , Replaced By: A0002016719
999
LOOM TIE , Replaced By: N916017040000
999
LOOM TIE , Replaced By: N916017040000
999
LOOM TIE , Replaced By: N916017070000
999
LOOM TIE , Replaced By: N916017050000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
V-BELT , Replaced By: N007753112500
999
HOSE , Replaced By: N900271050012
999
HOSE , Replaced By: N900271045010
999
PRESSURE SPRING. SPRING , Replaced By: A0002012719
999
SLIP RING. SEAL , Replaced By: A0002012719
999
SEALING RING. INTERMEDIATE RING , Replaced By: A0002012719
999
COVER , Replaced By: A0002012719
999
SLIP RING CAGE. SEAL HOLDER , Replaced By: A0002012719
999
SPRINGRING. SNAP RING , Replaced By: A0002012719
999
IMPELLER , 002384, Replaced By: A3462010207, +001A0002019119
999
SCREW
999
SPACER RINGTO 355 200 00 23
999
FAN , Replaced By: A3552000024
999
HOSE , Replaced By: N900271055000
999
WATER PUMP , 056063, Replaced By: A3552000001
999
BODY
999
WATER PUMP , 056063, Replaced By: A3552000001
999
SUPPORT
999
LINE
999
LINE
999
REPAIR KIT , Replaced By: A3552000060
999
REPAIR KIT , Replaced By: A3552000504
999
REPAIR KIT
