Поз.
Артикул
Описание

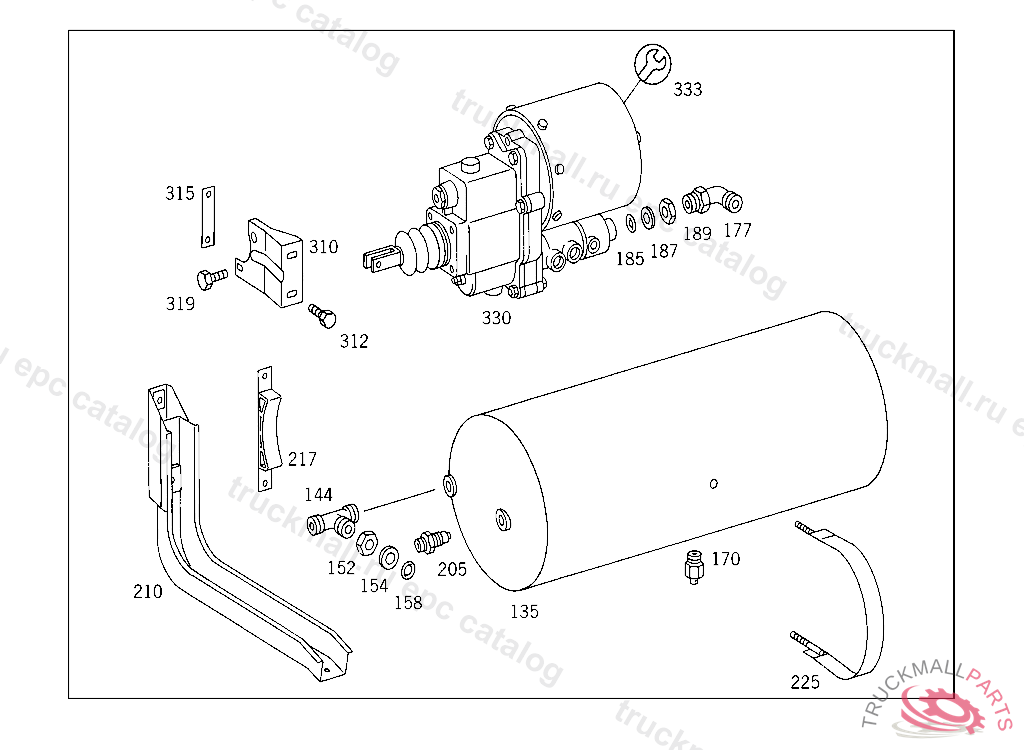

135
RESERVOIR INSIDE, THEFT-RELEVANT PART
144
T-FITTING COMPRESSED AIR VALVE CONNECTION
152
O-RING CHECK VALVE TO AIR RESERVOIR
154
THRUST RING CHECK VALVE TO AIR RESERVOIR
154
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
158
SEAL RINGTO 376 131 74 01
170
VALVE DRAIN, Replaced By: A0004322407
170
VALVE. DRAIN VALVE DRAIN
170
VALVE DRAIN, Replaced By: A0004322107
177
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
185
O-RING CHECK VALVE TO AIR RESERVOIR
187
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
187
THRUST RING CHECK VALVE TO AIR RESERVOIR
189
NUT CHECK VALVE TO AIR RESERVOIR
205
VALVE
210
CONSOLE AIR RESERVOIR
217
BASE AIR RESERVOIR
225
STRAP AIR RESERVOIR TO CONSOLE
310
BRACKET BRAKE BOOSTER
312
SCREW END PIECE TO EXHAUST PIPE M 10X25
315
SHIM BRACKET TO SIDE MEMBER
319
SCREW REAR EXHAUST PIPE TO MUFFLER
330
BRAKE BOOSTER , Replaced By: A0004317014, +001N915048010000
330
BRAKE BOOSTER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
333
REPAIR KIT BRAKE BOOSTER
999
REPAIR KIT CHECK TO 003 429 07 44
999
BUSHINGWABCO,5 433388
999
VALVE SEAT RINGWABCO,5 433388
999
SEAL RINGTO 000 429 75 30
999
LINE , Replaced By: A0005516256
999
VALVE CONEBOSCH
999
VALVE (CHECK VALVE)
999
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
SHUT-OFF COCK , Replaced By: A0004291431
999
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
999
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
COVERWABCO
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
999
ELBOW FITTING , Replaced By: A0019907571
999
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
999
SPACER RING AT BRAKE BOOSTER
999
FILTER BOTTOMTO 000 431 24 14
999
DIAPHRAGM , Replaced By: A0004313186
999
THREADED UNION BRAKE CYLINDER
999
GASKET34X2X6 MM,GRAU
999
VALVE SEATGRAU
999
STRAINERTO 000 431 86 14
999
CUPBOSCH
999
CUPBOSCH
999
STRAINER PRESSURE REGULATOR
999
VALVE104
999
CUPBOSCH
999
PISTONTO 000 431 86 14
999
CUP , Replaced By: A0004319186
999
PROTECTIVE CAP101
999
CUP , Replaced By: A0015864342
999
CUP , Replaced By: A0004313086
999
PROTECTIVE CAPTO 000 431 24 14
999
BRAKE CYLINDER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CUP , Replaced By: A0004318587
999
CUPTO 000 431 76 14
999
VALVE , Replaced By: A0004320807
999
RESERVOIR , Replaced By: A0034321101
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
LENS
999
SHELL TRAILER BLINKER
999
SWITCH 3/2-WAY VALVE
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
REPAIR KITWABCO
999
REPAIR KITWABCO
999
REPAIR KITTO 000 429 14 31,5 116581
999
REPAIR KIT , ON 343.1 FROM CHASSIS 601716 ON 343.3 FROM CHASSIS 601551
999
REPAIR KITTO 000 430 57 81,43 81,WABCO,0020,0120
999
SEALBOSCH 024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
T-FITTING , Replaced By: A0019901070
999
BUSHING , Replaced By: N915062009000
999
SPRING , Replaced By: A0009935205
999
HANDLETO 000 430 85 81,WABCO,004 0
999
FITTING , Replaced By: A0039979972
999
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
999
HANDLETO 000 429 16 31,4 940458
999
VALVE (RELAY VALVE) GRAU
999
VALVE , Replaced By: A0034295244
999
REPAIR KITTO 000 431 76 14
999
GASKET KIT PARKING BRAKE VALVE GRAU
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 86 14
999
CUP
999
CUPTO 000 431 24 14
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
CUP , Replaced By: A0014312386
999
CUPTO BOSCH-NR.0481 027 104
999
CUP101
999
TELL-TALE LAMP , Replaced By: A0005451630, +001A0005452319
999
REPAIR KIT , Replaced By: A0034201724
999
SEALING CORD38X8 MM
999
T-FITTING INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
999
SEAL CONE LINE CONNECTION
999
ELBOW FITTING 3/2-WAY VALVE,CONNECTION "1"
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
REPAIR KITKNORR
999
REPAIR KITWABCO
999
REPAIR KITTO 000 430 85 81,WABCO,004 0
999
SEAL RING
999
REPAIR KITTO 001 431 65 14,000 431 24 14
999
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
999
VALVE RELAY VALVE KNORR
999
RESERVOIR COMPRESSED AIR 20 L., Replaced By: A0064329801
999
RESERVOIR COMPRESSED AIR 60 L.
999
FITTING
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 24 14
999
SEAL RING , Replaced By: A0179974148
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
COMPRESSED AIR RESERVOIR COMPRESSED AIR 20 L.
999
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
SEAL RINGTO 000 431 24 14
999
HOSE , Replaced By: A0009872827
999
SEAL RINGTO 000 429 16 31,4 940458
999
SEAL RING101
999
DRUCKFEDER. SPRING , Replaced By: A3145860142
999
RUBBER STRIP BRACKET TO EXPANSION TANK
999
RUBBER STRIP
999
BEARING BRACKET
999
PIN
999
DAMPING RING
999
SPACER RING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PAWL , Replaced By: A3145860142
999
HANDLE
999
PLATE , Replaced By: A3145860142
999
WASHER BRAKE LEVER TO BEARING BRACKET, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRACKET LINE MOUNTING
999
END PIECE
999
BEARING BRACKET
999
ROD , UP TO CHASSIS 741766
999
BEARING BRACKET
999
SPACER TUBE TRAILER BRAKE VALVE TO FRAME
999
STRAP AIR RESERVOIR,K 125986
999
PLATE CONSOLE TO SIDE MEMBER
999
PLATE ,5 317650
999
REINFORCEMENT
999
BRACKET
999
BRAKE INTERMEDIATE SHAFT , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BRACKET , Replaced By: A3184280240
999
STRAP , Replaced By: A3354300340
999
RESERVOIR ,5 936755, Replaced By: A0034322701, +002A0009970934
999
BRACKET , UP TO CHASSIS 721608 EXCEPTO FOR:500001-599999
999
SHIM , Replaced By: A3604750484
999
ELBOW FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
BUSHING LEVER
999
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LEVER
999
BRACKET , 674068-875476
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO DUMPER CONTROL PRESSURE-SWITCH AND TO GROUND
999
ROD , Replaced By: A3604200474, +001A3584200074, +001A3859900551, +001A3859960034, +001N000934012002
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
BRAKE LEVER , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
FITTING
999
CLAMP , Replaced By: N916016008200
999
BRACKET BRAKE MASTER CYLINDER
999
YOKE
999
BRACKET , Replaced By: A3604300910
999
SHIM BEARING BRACKET TO FRAME
999
WASHER , Replaced By: A4219905440
999
CLAMP , Replaced By: A3604300143
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A6739950001
999
PLUG SOCKET , Replaced By: A3805402181
999
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
999
WASHER BUMPER BRACKET TO COUPLING MOUTH
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
UNION NUT LINE CONNECTION
999
SCREW PROTECTION PLATE TO BRACKET
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
LOCK RING SHIFT LEVER BEARING
999
SCREW PLUG FRONT COVER
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW , Replaced By: N304017008042
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW BRACKET TO FRAME SIDE MEMBER M 8X75
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017010002
999
SCREW BRACKET TO SIDE MEMBER
999
NUT BALL PIVOT TO LEVER
