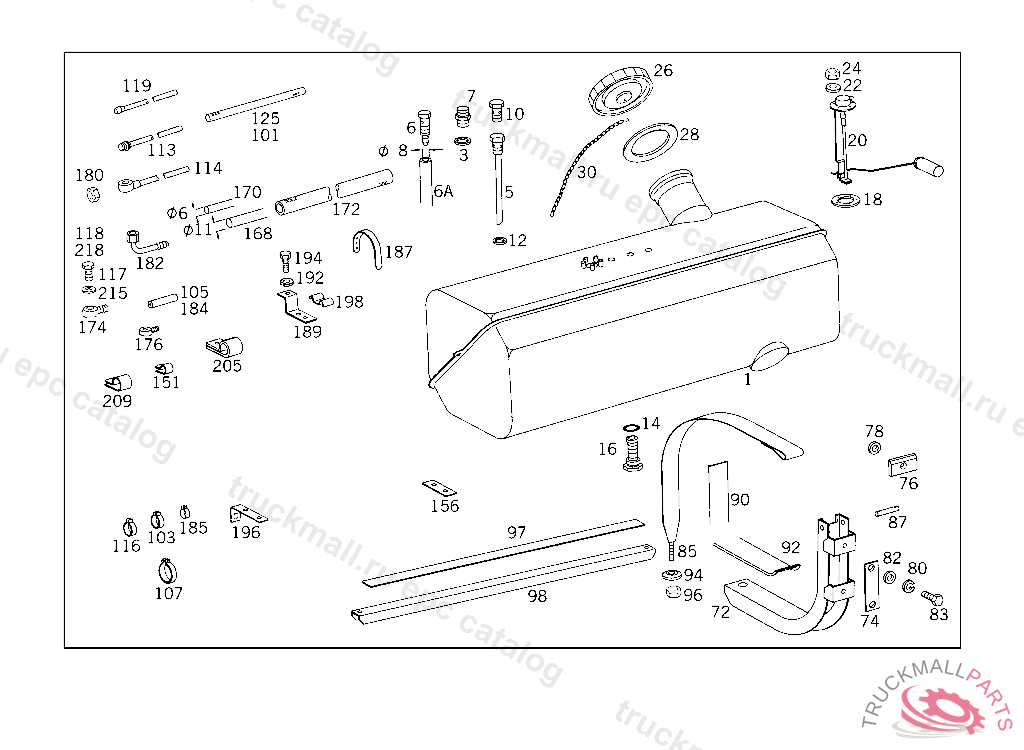

Поз.
Артикул
Описание
1
FUEL TANK105L
1
FUEL TANK , Replaced By: A6734701001
1
FUEL TANK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3834700701, +001A0004710530, +001A0004710235, +001A0085427617, +002A3879900078, +001A0009908188, +001A0119970745, +001A0019975272, +001N007603014302, +001N007604014106, +001N915001006002
1
FUEL TANK105 L.
1
FUEL TANK , Replaced By: A6734701201
1
FUEL TANK , Replaced By: A3834700601, +001A0004710530, +001A0004710235, +001A0085427617, +002A3879900078, +001A0009908188, +001A0119970745, +001A0019975272, +001N007603014302, +001N007604014106, +001N915001006002
3
SEAL RING CONNECTION: 1,4 719029
5
HOLLOW SCREW , Replaced By: A3609900263
5
RISING PIPE , Replaced By: A3609900263
5
RISING PIPE , Replaced By: A3609900263
6
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
7
FITTING
10
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
12
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
12
SEAL RING
14
SEAL RING FUEL STRAINER SCREEN
16
FUEL STRAINER FUEL TANK,K 169122
16
FUEL STRAINER FUEL TANK
16
FUEL STRAINER AT TANK
16
FUEL STRAINER AT TANK
18
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
18
GASKET SENDER UNIT AND COVER TO FUEL TANK
18
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
20
SENDER UNIT FUEL GAUGE,4 316250
20
SENDER UNIT , Replaced By: A0085427617
20
SENDER UNIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 656938, Replaced By: A0055423317
20
SENDER UNIT FUEL GAUGE SENDER UNIT TO FUEL TANK,4 495577
22
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
24
NUT IN CASE OF SUBSEQUENT INSTALLATION
26
FILLER CAP , Replaced By: A0004700305
26
FILLER CAP
26
FILLER CAP , Replaced By: A0004700305
26
FILLER CAP , Replaced By: A0004700305
26
FILLER CAP , Replaced By: A0004717930
26
FILLER CAP
26
FILLER CAP , Replaced By: A3094700005
26
FILLER CAP , Replaced By: A3094700005
28
SEAL RING
30
CHAIN FILLER CAP
72
SUPPORT
72
SUPPORT
72
SUPPORT , 10/20 UP TO CHASSIS 4 829901, 50/60 UP TO CHASSIS 4 899847 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3534700242, +001N000960014167, +002N000961014055, +002N912004014100
72
SUPPORT , Replaced By: A3534700042, +001A6174700340
72
SUPPORT , Replaced By: A3524703142
72
SUPPORT FUEL TANK
74
SHIM SUPPORT TO SIDE MEMBER
74
BRACKET RETURN LINE
74
SHIM , Replaced By: A6245611240
76
SHIM BEARING BRACKET TO FRAME
76
SHIM BEARING BRACKET TO FRAME
76
SHIM , Replaced By: A3604750484
78
WASHER SPARE WHEEL CARRIER
78
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
78
WASHER , Replaced By: N007349013005
80
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
80
LOCK WASHER FITTING TO BRACKET
82
WASHER CROSS MEMBER TO REINFORCEMENT
82
WASHER BRACKET TO SIDE MEMBER
82
WASHER BATTERY CASE TO SIDE MEMBER
83
SCREW CONSOLES TO SIDE MEMBER M 12X48, FROM CHASSIS 734560 ALSO INSTALLED ON:500000-5999994 829901
83
SCREW BEARING BRACKET TO FRAME
83
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
83
SCREW , Replaced By: N308676014020
83
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
83
SCREW , Replaced By: N308676012026
83
SCREW CONSOLE TO SIDE MEMBER
85
STRAP AIR RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
85
STRAP ,4 669107Z5 149419, Replaced By: A6174700340, +001N000934012022
85
STRAP FUEL TANK TO SUPPORT
85
STRAP , Replaced By: A3834700340
85
STRAP FUEL TANK TO SUPPORT, UP TO IDENT NO. 734559 EXCEPT FOR 500001-599999
87
PIN STRAP TO SUPPORT
90
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
90
PAD , Replaced By: A3634750320
92
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
92
PAD , ORDER BY THE METER, Replaced By: A3634750220
94
WASHER STRAP TO SUPPORT
96
NUT STRAP TO SUPPORT
113
LINE FROM TANK TO SCREW CONNECTION, 741958
113
LINE , Replaced By: A3404702665
113
LINE WITH SEAL CONE 1000 MM, TYPE 1113B UP TO CHASSIS 604683,TYP LP 1517 UP TO CHASSIS 600412,TYPE LP 1317 UP TO CHASSIS 601123,TYPE LP 911 B UP TO CHASSIS601688 CONTINUED,SEE FOOTNOTE 003
113
LINE WITH SEAL CONE 3000 MM, 740810
113
LINE , Replaced By: A3404702165, +001A3404701965, +NBN073379009100, +002N915001008000, +002N916002014100
114
LINE FUEL COMPENSATING
114
LINE , Replaced By: A3404701265
114
LINE , Replaced By: A3404701265
116
CLAMP TO CONNECT THE FUEL LINES, 740810
117
SEAL RING FUEL LINE TO FEED PUMP
118
HOLLOW SCREW FUEL LINE TO FEED PUMP
118
HOLLOW SCREW , Replaced By: N915036010108
119
LINE WITH SEAL CONE 1000 MM, TYPE 1113B UP TO CHASSIS 604683,TYP LP 1517 UP TO CHASSIS 600412,TYPE LP 1317 UP TO CHASSIS 601123,TYPE LP 911 B UP TO CHASSIS601688 CONTINUED,SEE FOOTNOTE 003
119
LINE WITH SEAL CONE 3000 MM, 740810
119
LINE WITH SEAL CONE 3000 MM, 740810
119
LINE WITH SEAL CONE 1000 MM, TYPE 1113B UP TO CHASSIS 604683,TYP LP 1517 UP TO CHASSIS 600412,TYPE LP 1317 UP TO CHASSIS 601123,TYPE LP 911 B UP TO CHASSIS601688 CONTINUED,SEE FOOTNOTE 003
119
LINE , Replaced By: A3404701965, +001N915001008000
119
LINE WITH SEAL CONE 3000 MM, 740810
119
LINE , Replaced By: A3404702165, +001N915001008000
125
HOSE LEAK LINE
125
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
151
CLAMP LINE MOUNTING
156
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
156
BRACKET FUEL LINES
168
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
170
PLASTIC PIPE RISING PIPE 4X6 MM
170
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
172
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
174
BANJO UNION , Replaced By: N000000000363
176
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
176
BANJO UNION , Replaced By: N915052004019
182
ELBOW FITTING RETURN
184
HOSE LEAK LINE, ORDER BY THE METER
185
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
187
LOOM TIE FOR LINES, 10 FROM IDENT NO.631934 20 FROM IDENT NO.671517 ALSO INSTALLED ON 500001-5999994 495577
187
LOOM TIE , Replaced By: A0009974390
189
BRACKET OIL LINE MOUNTING
192
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
194
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
196
BRACKET FUEL LINE TO CAB CONSOLE, 10 FROM IDENT NO.631934 20 FROM IDENT NO.671517 ALSO INSTALLED ON 500001-5999994 691315
198
CLAMP
205
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
205
CLAMP , Replaced By: N916016018202
209
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
209
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
SEAL RING FUEL LINE TO FEED PUMP
218
HOLLOW SCREW FUEL LINE TO FEED PUMP
218
HOLLOW SCREW , Replaced By: N915036010108
999
BANJO UNION , Replaced By: N915052008001
999
BANJO UNION , Replaced By: N915052008019
999
BANJO UNION FEED
999
BUSHING , Replaced By: N915062004000
999
FITTING RETURN
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
CLIP LEAK LINE
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
LINE , Replaced By: A3054760126
999
BRACKET FUEL LINE
999
SHIM , Replaced By: A3184924841
999
HOSE RETURN
999
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
999
SHIM RESERVOIR
999
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
999
RISING PIPE
999
RISING PIPE , Replaced By: A3374700126
999
LINE , Replaced By: A3404702165, +001N915001008000
999
LINE , Replaced By: A3404702165, +001N915001008000
999
LINE , Replaced By: A3404702665
999
LINE , Replaced By: A3404702165, +001A3404701965, +NBN073379009100, +002N915001008000
999
LINE , Replaced By: A3404702665
999
LINE , Replaced By: A3404702665
999
LINE , Replaced By: A3404702165, +001A3404701965, +NBN073379009100, +002N915001008000
999
LINE
999
BRACKET , Replaced By: A3274925819
999
BRACKET FUEL LINES TO ENGINE, 10 UP TO IDENT NO.631933 20 UP TO IDENT NO.671516 EXCEPT FOR 500001-599999
999
RUBBER STRIP FUEL TANK
999
ANGLE LINE MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
RUBBER STRIP FUEL TANK TO SUPPORT
999
CONNECTOR RIGHT,177-LITER
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
SCREW BRACKET TO CAB CROSS MEMBER
999
COTTER PINROCKINGER TYP 260 G140
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006034
999
SCREW SHIFT LEVER BEARING TO CAB FLOOR,K 040603
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
SCREW BRACKET TO SIDE MEMBER
999
NUT BALL PIVOT TO LEVER
999
NUT
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW PLUG , Replaced By: N007604014110
999
SCREW PLUG FUEL TANK
999
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT
999
NUT BATTERY CABLE
999
CLAMP FUEL LEAK LINE,FUEL FILTER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT
999
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
999
SLEEVE LEAK LINE
999
SLEEVE FEED
999
CLAMP , Replaced By: N000000000665
