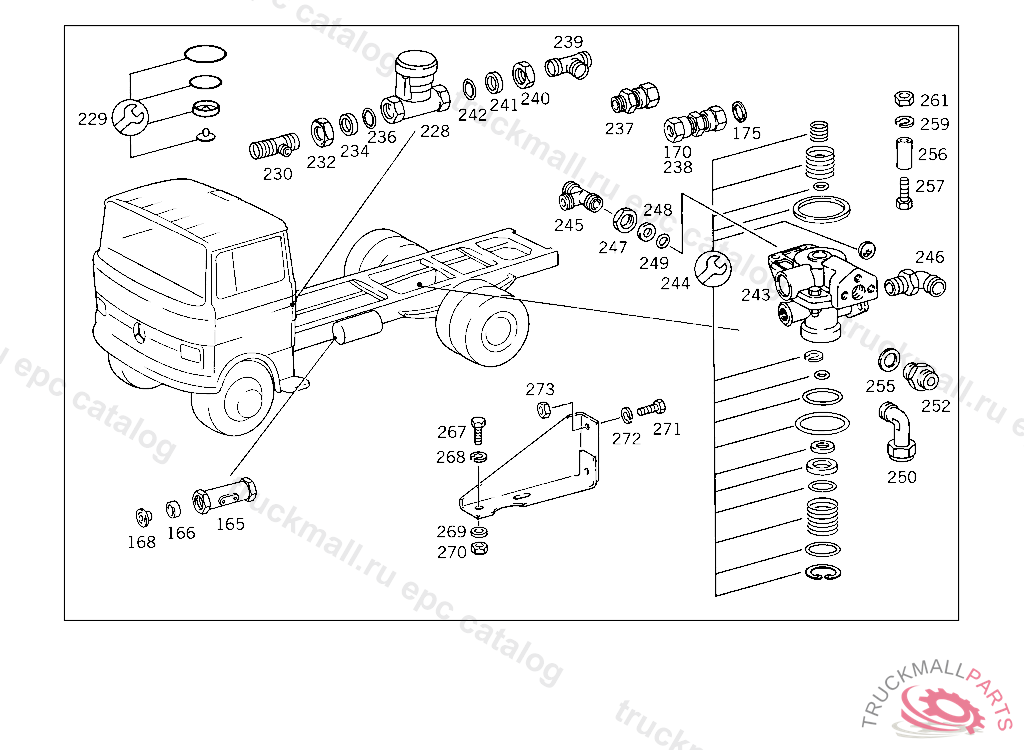

Поз.
Артикул
Описание
165
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
166
VALVE SEAT RINGWABCO,5 433388
168
BUSHINGWABCO,5 433388
170
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
175
SEAL RING LINE CONNECTION
228
VALVE (OVERFLOW VALVE) KNORR
228
VALVE (OVERFLOW VALVE) GRAU
228
VALVE (OVERFLOW VALVE) BOSCH
228
VALVE TRAILER BRAKE
229
REPAIR KITBOSCH
230
T-FITTING LUBRICATING LINE TO DISTRIBUTOR
232
NUT CHECK VALVE TO AIR RESERVOIR
232
NUT CHECK VALVE TO AIR RESERVOIR
232
NUT CHECK VALVE TO AIR RESERVOIR
234
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
234
THRUST RING CHECK VALVE TO AIR RESERVOIR
234
THRUST RING CHECK VALVE TO AIR RESERVOIR
236
O-RING CHECK VALVE TO AIR RESERVOIR
236
SEAL RING LINE CONNECTION
236
O-RING CHECK VALVE TO AIR RESERVOIR
236
O-RING CHECK VALVE TO AIR RESERVOIR
237
FITTING SHUTTLE VALVE,CONNECTION: "20"
237
FITTING SHUTTLE VALVE,CONNECTION: "20"
237
FITTING SHUTTLE VALVE,CONNECTION: "20"
238
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
239
T-FITTING COMPRESSED AIR VALVE CONNECTION
239
T-FITTING COMPRESSED AIR VALVE CONNECTION
240
NUT CHECK VALVE TO AIR RESERVOIR
240
NUT CHECK VALVE TO AIR RESERVOIR
241
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
241
THRUST RING CHECK VALVE TO AIR RESERVOIR
241
THRUST RING CHECK VALVE TO AIR RESERVOIR
242
O-RING CHECK VALVE TO AIR RESERVOIR
242
O-RING CHECK VALVE TO AIR RESERVOIR
243
BRAKE VALVE CONTROL VALVE,549429
243
VALVE ,4 390315
243
BRAKE VALVE CONTROL VALVE,549429
244
REPAIR KITWABCO
244
REPAIR KITTO 001 431 56 05
244
REPAIR KITWABCO
245
T-FITTING COMPRESSED AIR VALVE CONNECTION
246
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
247
NUT CHECK VALVE TO AIR RESERVOIR
247
NUT CHECK VALVE TO AIR RESERVOIR
248
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
248
THRUST RING CHECK VALVE TO AIR RESERVOIR
248
THRUST RING CHECK VALVE TO AIR RESERVOIR
249
O-RING CHECK VALVE TO AIR RESERVOIR
249
O-RING CHECK VALVE TO AIR RESERVOIR
250
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
252
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
252
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
255
SEAL RING LINE CONNECTION
256
SPACER TUBE BRACKET TO REAR AXLE HOUSING
256
SPACER TUBE BRACKET TO REAR AXLE HOUSING
257
SCREW , Replaced By: N000933010192
257
SCREW SHIFTING ROD TO SHIFT LEVER
257
SCREW. HEXAGON HEAD BOLT TRANSMISSION CASE M10X80
259
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
259
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
261
NUT , Replaced By: N308673010000
261
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
261
NUT BRACKET TO SUPPORT AND TO END PIECE
267
SCREW SUPPORT TO CROSS MEMBER M 10X28
268
SPRING LOCK WASHER. LOCK WASHER AT BRACKET
269
WASHER , Replaced By: N000125010532
269
WASHER RADIATOR TO RUBBER MOUNTING
270
NUT BRACKET TO SUPPORT AND TO END PIECE
271
SCREW , Replaced By: N304017008021
271
SCREW PIPE CLAMP
272
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
273
NUT
999
CLAMP ,K 147121, Replaced By: N000000000319
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
FITTING , Replaced By: A0019972372
999
FITTING , Replaced By: A0009970171
999
T-FITTING , Replaced By: A0009902370
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
ANGLE JOINT DUMPER PUMP
999
SCREW , Replaced By: N000000001146
999
CONNECTION FITTING ,880809
999
NUT BALL PIVOT TO LEVER
999
COTTER PIN STRAP TO SUPPORT
999
SCREW CLAMP MOUNTING M 6X16
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP , Replaced By: A6739950001
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A3604300143
999
CLAMP , Replaced By: N916016008200
999
ANGLE LINE MOUNTING
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
BRACKET
999
BRACKET
999
BRACKET , Replaced By: A3184280240
999
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
999
SEAL RINGTO 000 429 16 31,4 940458
999
FITTING , Replaced By: A0029905971
999
FITTING , Replaced By: A0039978972
999
HANDLETO 000 429 16 31,4 940458
999
ELBOW FITTING , Replaced By: A0019904371
999
SCREW , 872789
999
REPAIR KITTO 000 429 14 31,5 116581
999
REPAIR KITWABCO
999
CUP , Replaced By: A0004313086
999
DIAPHRAGM , Replaced By: A0004313186
999
SEAL RINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
DISTRIBUTOR
999
ADAPTER FITTING , Replaced By: A0009970271
999
SHUT-OFF COCK , Replaced By: A0004291431
999
DIAPHRAGMTO 001 429 48 44
999
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
999
DIAPHRAGM
999
DIAPHRAGM
999
VALVE (CHECK VALVE)
999
LINE , Replaced By: A0005516256
