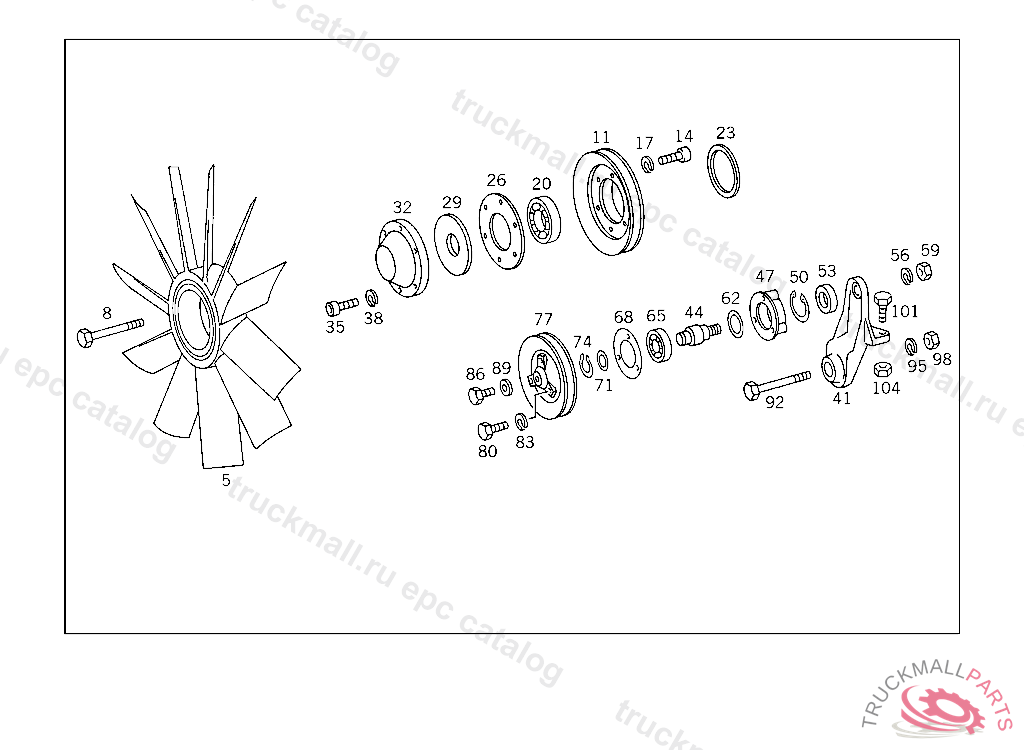

Поз.
Артикул
Описание
5
FAN
11
PULLEY FAN
14
SCREW STEERING SHAFT BEARING TO CAB M 8X22
17
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
20
NEEDLE BEARING
23
THRUST WASHER FAN
26
THRUST WASHER
29
THRUST RING
32
EXPANSION PLUG
35
SCREW
38
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
41
LEVER
44
PIVOT PIN
47
HUB
50
LOCK RING SHIFT LEVER BEARING
53
SEAL RING
56
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
59
NUT RELEASE BEARING LUBRICATION
59
NUT , Replaced By: N308675014002
59
NUT , Replaced By: N308675014000
62
SPACER WASHER
65
GROOVED BALL BEARING
68
GASKET
71
SPACER RING
74
LOCK RING
77
PULLEY
80
SCREW BRACKET TO EXHAUST PIPE BRACKET
80
SCREW , Replaced By: N304017008024
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
SCREW PLUG
89
SEAL RING SCREW PLUG
92
SCREW BEARING BRACKET TO FRONT AXLE M 20X115,5 290345
95
LOCK WASHER SPARE WHEEL TO BRACKET
98
NUT , Replaced By: N913023020001
98
NUT , Replaced By: N308673020002
98
NUT TRAILER COUPLING TO REAR CROSS MEMBER
101
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
101
SCREW BRACKET TO SIDE MEMBER
101
SCREW , Replaced By: N304017008040
101
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
104
NUT
