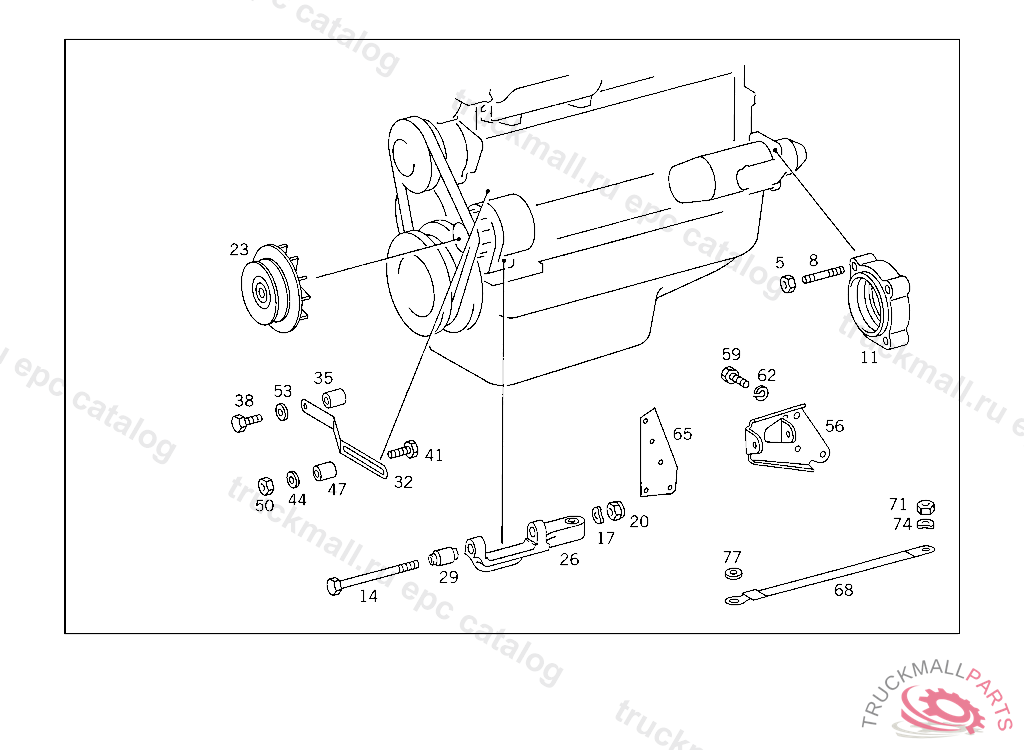

Поз.
Артикул
Описание
5
NUT
8
STUD STARTING MOTOR MOUNTING
11
INTERMEDIATE PIECE STARTING MOTOR INTERMEDIATE FLANGE, UP TO ENGINE 708449 YEAR OF MANUFACTURE 1982
14
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
14
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
17
WASHER , Replaced By: N000125008443
17
WASHER EXHAUST MUFFLER TO STRAP
20
HEXAGON NUT. NUT AIR SPRING BELLOWS,085596
23
FAN WITH PULLEY
23
FAN ALTERNATOR
32
BRACKET (CLAMPING SHACKLE)
38
SCREW SPRING BRACKET TO FRAME
41
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
41
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
44
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
47
WASHER BRACKET TO ENGINE
50
NUT ENGINE MOUNTING M8
53
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
56
BRACKET ALTERNATOR
59
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
59
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
BRACKET
