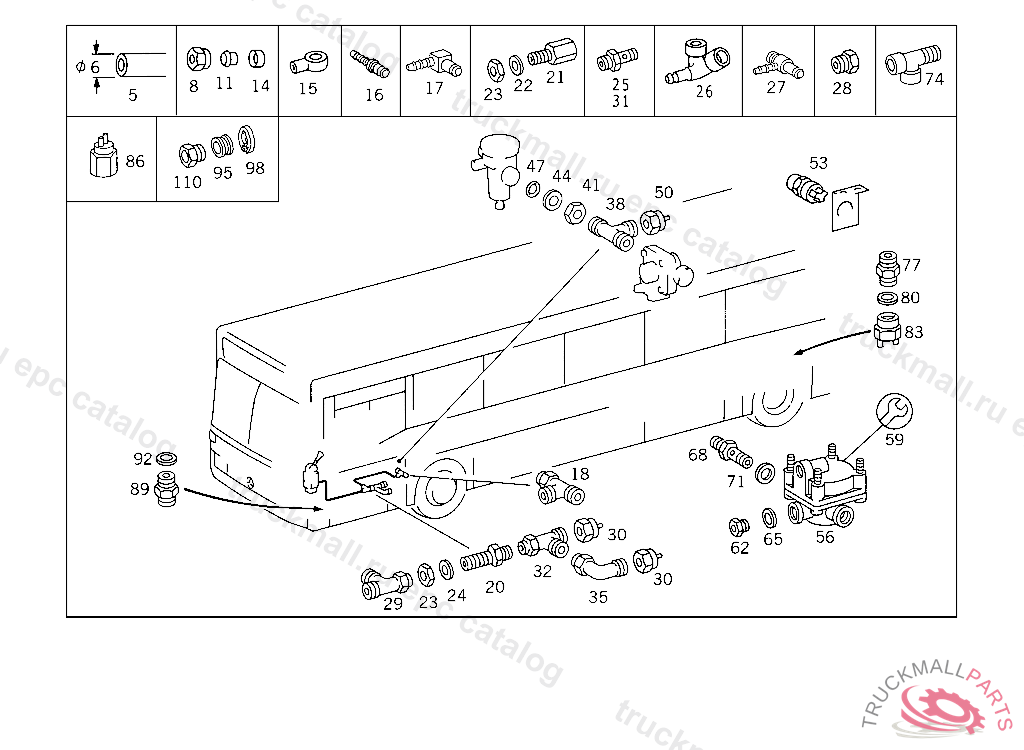

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
UNION NUT
11
SEAL CONE
14
SLEEVE LEAK LINE
15
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
16
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
16
CONNECTORTO M22 / 4MM / VOSS 230
16
CONNECTOR , Replaced By: A0029905378
17
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
18
FITTING BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
18
T-FITTING EXHAUST-BRAKE POWER CYLINDER
20
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
20
FITTING , Replaced By: A0009977172
21
ADAPTER FITTING TEST CONNECTION
22
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
22
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
23
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
23
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
24
WASHER
25
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
26
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
27
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
28
SCREW. UNION SCREW LINE CONNECTION
28
SCREW. UNION SCREW LINE CONNECTION
28
SCREW. UNION SCREW , Replaced By: A0009973734
29
T-FITTING 3/2-WAY VALVE
30
SWITCH 3/2-WAY VALVE
30
SWITCH RETARDER
30
SWITCH TRAILING AXLE CONTROL
30
SWITCH EXHAUST BRAKE,K 251255
30
SWITCH SUPPLY PRESSURE CONTROL
30
SWITCH SHUTTLE VALVE
30
SWITCH AT FITTING
31
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
32
T-FITTING EXHAUST-BRAKE POWER CYLINDER
35
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
35
FITTING FROM PUMP TO CYLINDER
38
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
41
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
44
SEAL RING LINE CONNECTION
44
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
SWITCH SUPPLY PRESSURE,5 966147
50
SWITCH EXHAUST BRAKE
53
SWITCH HAND BRAKE CONTROL TELL-TALE LAMP
56
VALVE FRONT AXLE II RELAY VALVE "WABCO"
59
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
62
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
65
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
65
SEAL RING LINE CONNECTION
68
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
71
SEAL RING VALVE TO VALVE,K 025179
74
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
77
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
77
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
83
SWITCH LOCK-UP COUPLING
83
SWITCH P.T.O. TELL-TALE LAMP
86
SWITCH (PRESSURE SWITCH) 5,5 BAR
89
FITTING 3/2-WAY SOLENOID VALVE,CONNECTION: "20",5 766895, 5 806950
89
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
95
SEAL RING , Replaced By: A0009940747
95
LOCK RING LINE CONNECTION
98
LOCK , Replaced By: A0009945448
98
LOCK LINE CONNECTION
110
SCREW. UNION SCREW LINE CONNECTION
110
SCREW. UNION SCREW , Replaced By: A0009973734
999
FITTING TWO-WAY VALVE
999
T-FITTING
