Mercedes N900271035008 - Шланг

O 405 GTD 357.250

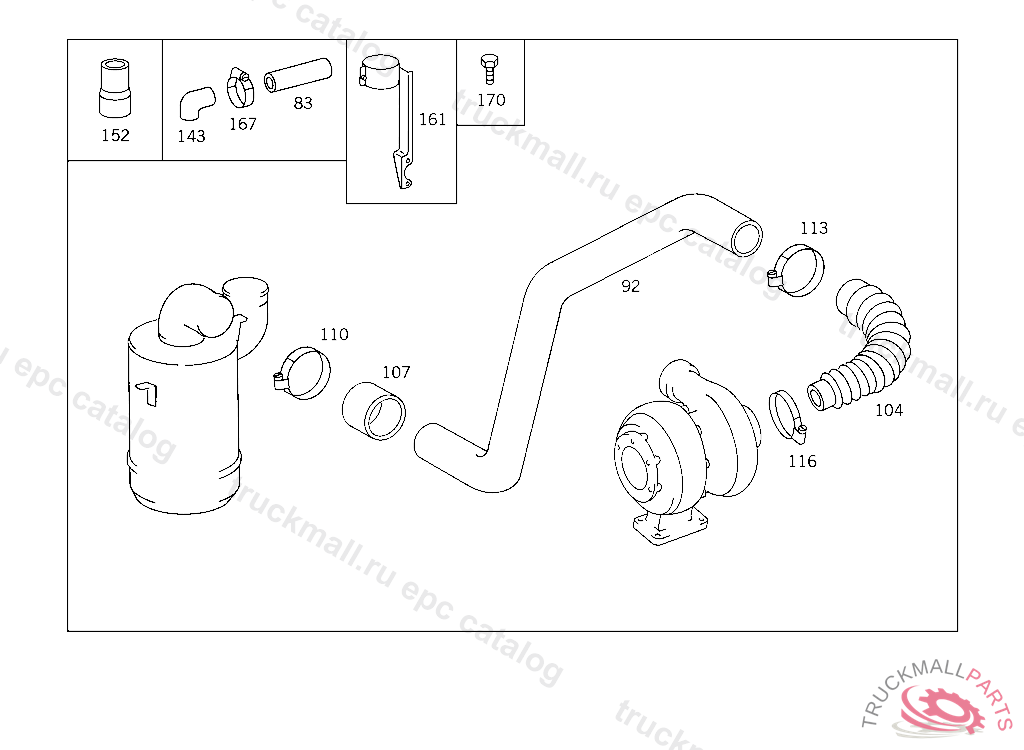

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 4

Поз.
Артикул
Описание
83
N900271035008
HOSE FROM AIR CLEANER TO INTAKE PIPE,086793
110
N916017130000
CLAMP , Replaced By: N000000000678
110
N000000000678
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
110
N000000005892
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
143
A5411341082
HOSE INTAKE MUFFLER TO AIR COMPRESSOR,086973
167
N000000000668
CLAMP25-40X13 MM
167
N916016035205
CLAMP LINE MOUNTING
167
N000000000670
CLAMP
167
N916017032000
CLAMP , Replaced By: N000000000670
167
N916017025000
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
A6125280008
AIR INTAKE PIPE FROM AIR CLEANER TO INTAKE PIPE,086793
999
A6125200002
AIR INTAKE CASE ,086793
