Mercedes A0004290527 - КОЛЬЦО ПРОСТАВОЧНОЕ

O 405 GTD 357.250

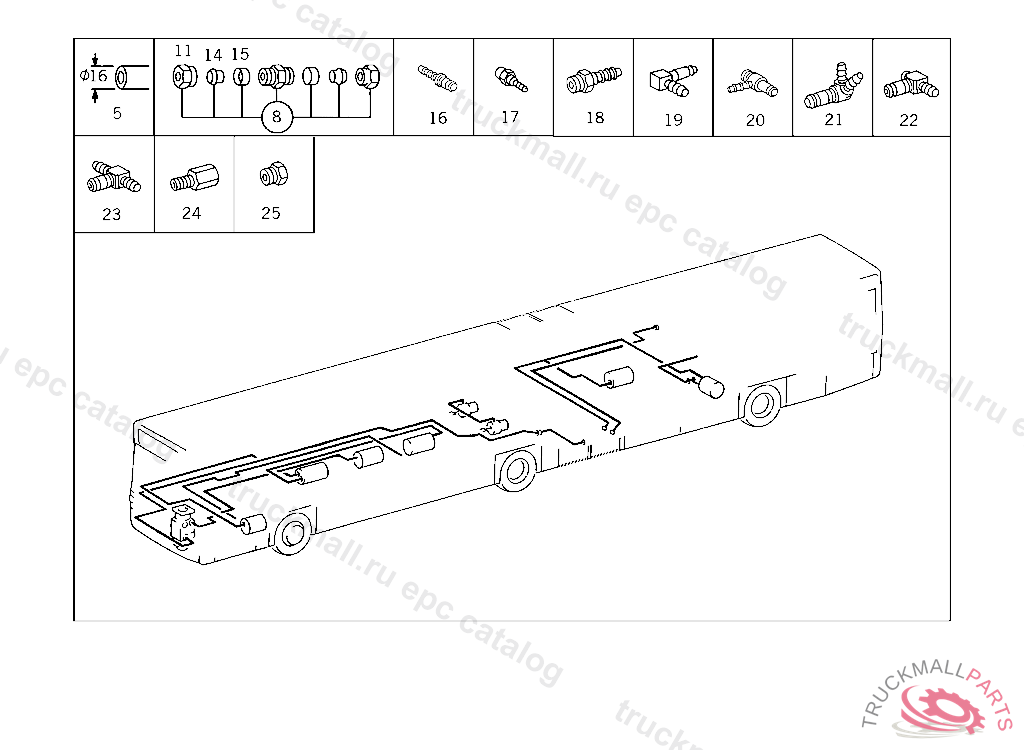

42 BRAKES - 050 16-MM/15-MM COMPRESSED AIR LINES IL. 1

Поз.
Артикул
Описание
5
A0129977682
HOSE , Replaced By: A0009872927
5
A0009872927
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
8
A0059974372
FITTING (PARTS KIT),LINE RUPTURE
11
N915017016101
UNION NUT
14
N003861016003
GLAND
15
N915062012000
SLEEVE
16
A0019901278
CONNECTOR PRESSURE REGULATOR BREATHING
18
N915059012001
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
19
A0029902971
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM, VOSS 230
999
A0039973848
SEAL RING LINE CONNECTION
999
A0004290527
THRUST RING SUCTION LINE TO OIL PUMP
