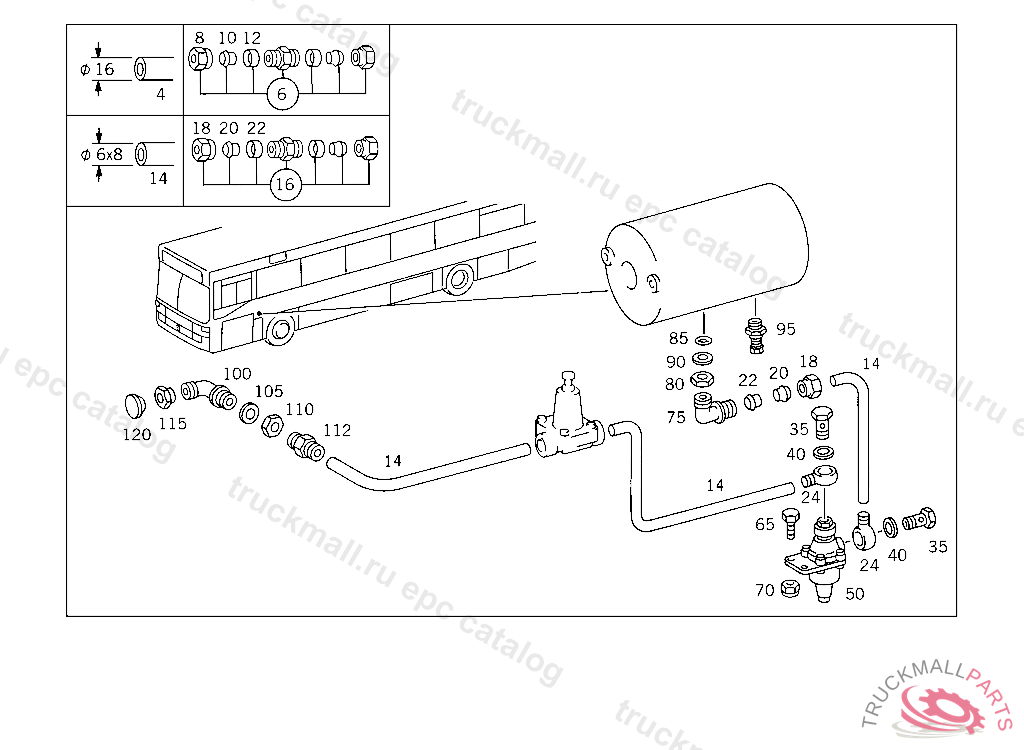

Поз.
Артикул
Описание
4
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
4
HOSE , Replaced By: A0009872927
6
FITTING (PARTS KIT),LINE RUPTURE
8
UNION NUT
10
GLAND
12
SLEEVE
14
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
PLASTIC PIPE AERATION, ORDER BY THE METER
16
FITTING , Replaced By: A0029905971
16
FITTING (PARTS KIT),LINE RUPTURE
18
UNION NUT LINE CONNECTION
20
GLAND LINE CONNECTION
22
SLEEVE LINE CONNECTION
24
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
35
HOLLOW SCREW HEATING CONNECTION
40
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
50
VALVE DRAIN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
65
SCREW , Replaced By: N304017008021
65
SCREW PIPE CLAMP
70
NUT BRACKET TO SIDE MEMBER
75
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
80
NUT CHECK VALVE TO AIR RESERVOIR
85
O-RING CHECK VALVE TO AIR RESERVOIR
90
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
95
SCREW
100
ELBOW FITTING 3/2-WAY VALVE,CONNECTION "1"
105
WASHER , Replaced By: N000125015019
105
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
110
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
112
FITTING (PARTS KIT),LINE RUPTURE
115
NUT TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
120
LOCKING CONE AT T-FITTING,038111
999
SEAL RING LINE CONNECTION
999
FITTING LINE CONNECTION
999
FITTING RELAY VALVE,CONNECTION: "10",950459
999
FITTING SHUTTLE VALVE
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
VALVE (OVERFLOW VALVE) 1.5BAR
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
VALVE. DRAIN VALVE DRAIN
