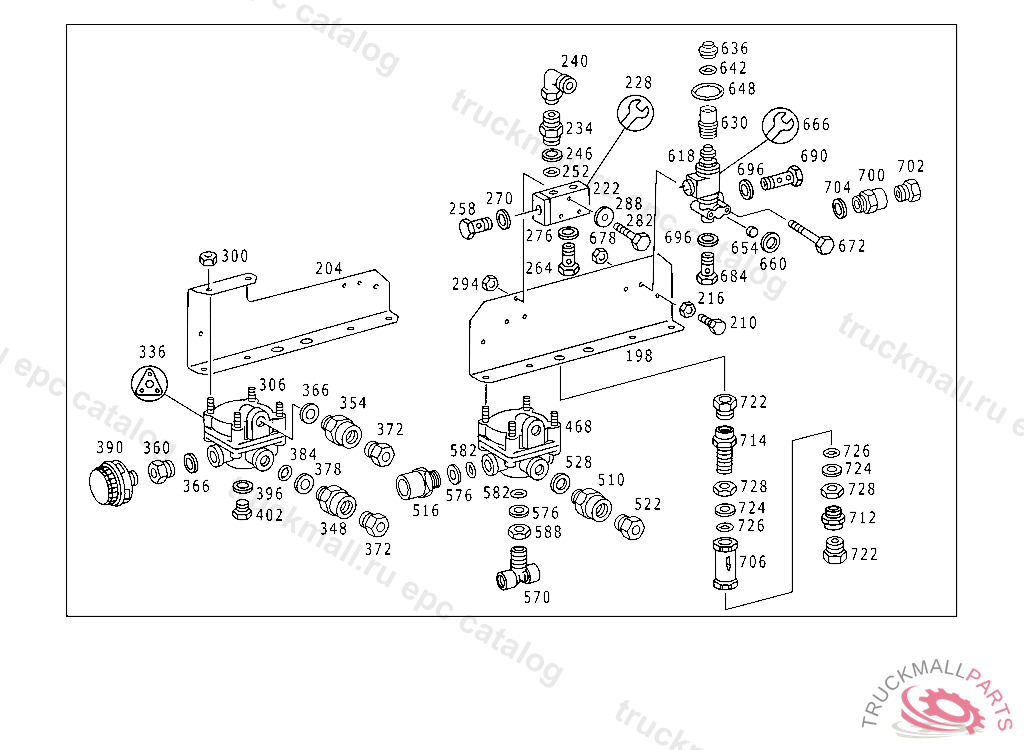

Поз.
Артикул
Описание
198
BRACKET VALVE CLUSTER TO FRAME
204
BRACKET VALVE CLUSTER TO FRAME
210
SCREW BRACKET TO SIDE MEMBER
216
NUT STRAP TO BRACKET
216
NUT , Replaced By: N910113010000
222
VALVE (3/2-WAY SOLENOID VALVE)
228
REPAIR KIT 3/2-WAY SOLENOID VALVE
234
FITTING LINE CONNECTION
240
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
246
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
252
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
258
HOLLOW SCREW LINE CONNECTION
264
HOLLOW SCREW , Replaced By: N915036010108
264
HOLLOW SCREW FUEL LINE TO FEED PUMP
270
SEAL RING LINE CONNECTION
276
SEAL RING FUEL LINE TO FEED PUMP
282
SCREW SWITCH TO BRACKET
288
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
288
WASHER , Replaced By: N009021005205
294
NUT , Replaced By: N910113005001
294
NUT HOOK TO BRACKET
300
NUT , Replaced By: N913004008001
306
VALVE FRONT AXLES I AND II "WABCO"
336
REPAIR KIT RELAY VALVE WABCO
348
FITTING LINE CONNECTION
354
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
360
UNION RELAY VALVE,CONNECTION "2"
366
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
372
SCREW. UNION SCREW LINE CONNECTION
378
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
384
O-RING CHECK VALVE TO AIR RESERVOIR
390
MUFFLER TRAILER CONTROL VALVE
390
MUFFLER , Replaced By: A0004302370
390
MUFFLER BRAKE POWER REGULATOR,CONNECTION: "30"
396
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
402
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
468
VALVE FRONT AXLES I AND II "WABCO"
510
FITTING LINE CONNECTION
516
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
522
SCREW. UNION SCREW LINE CONNECTION
528
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
570
T-FITTING LINE CONNECTION
576
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
582
O-RING CHECK VALVE TO AIR RESERVOIR
588
NUT CHECK VALVE TO AIR RESERVOIR
618
VALVE (3/2-WAY SOLENOID VALVE) EKS
618
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
618
VALVE , Replaced By: A0049975736
630
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
636
PROTECTIVE CAPWABCO
642
SEAL RINGWABCO
648
SEAL RING24X2 MM
654
SEAL RING VALVE TO VALVE
660
SEAL RINGTO 000 429 24 30
666
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
672
SCREW , Replaced By: N304017008028
672
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
678
NUT , Replaced By: N913004008001
684
HOLLOW SCREW HEATING CONNECTION
690
HOLLOW SCREW LINE CONNECTION
696
SEAL RING SRREW PLUG
700
FITTING LINE CONNECTION
702
SCREW. UNION SCREW , Replaced By: A0009973734
702
SCREW. UNION SCREW LINE CONNECTION
704
SEAL RING LINE CONNECTION
706
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
712
FITTING LINE CONNECTION
714
FITTING LINE CONNECTION
722
SCREW. UNION SCREW LINE CONNECTION
724
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
726
O-RING CHECK VALVE TO AIR RESERVOIR
728
NUT CHECK VALVE TO AIR RESERVOIR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING LINE CONNECTION, Replaced By: N000000006446
