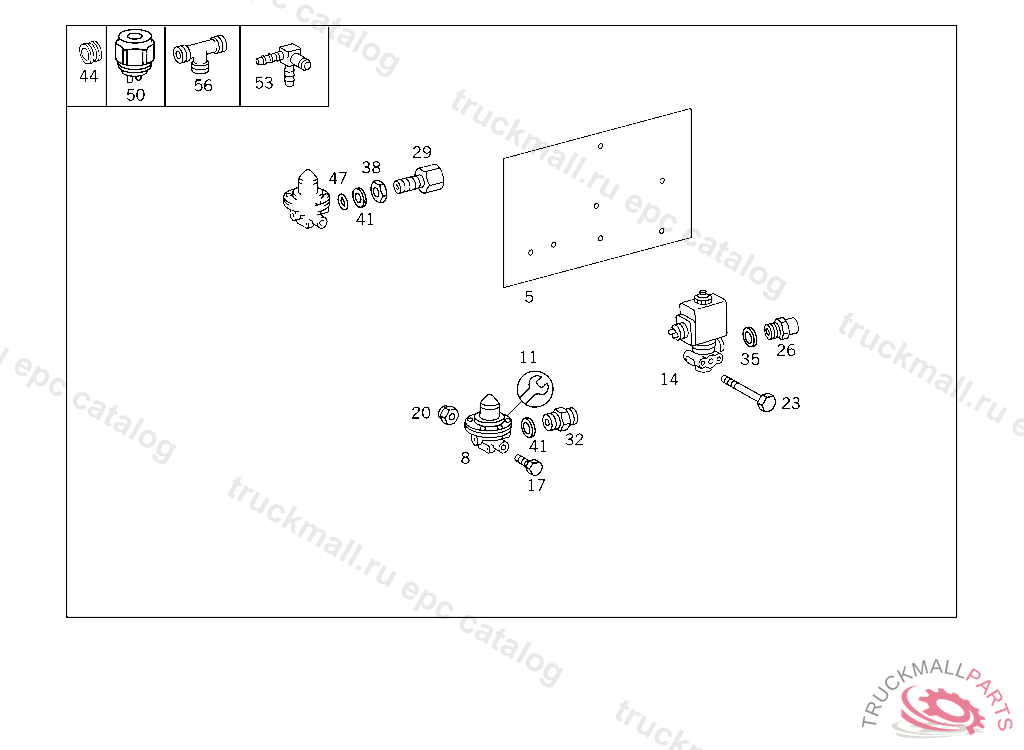

Поз.
Артикул
Описание
5
BRACKET APPARATUS SUPPORT
8
VALVE PRESSURE LIMITER
8
VALVE REDUCTION VALVE 2 BAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
REPAIR KIT REDUCTION VALVE
14
VALVE (3/2-WAY SOLENOID VALVE) WABCO
17
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
17
SCREW CENTRAL LOCK TO CAB M 10X16
20
HEXAGON NUT. NUT BRACKET TO FRAME
23
SCREW VALVE TO CAB M 8X85
26
FITTING LINE CONNECTION
29
ADAPTER FITTING TEST CONNECTION
32
FITTING RELAY VALVE,CONNECTION "2"
35
SEAL RING SRREW PLUG
38
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
41
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
41
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
44
LOCK RING LINE CONNECTION
44
SEAL RING , Replaced By: A0009940747
47
O-RING CHECK VALVE TO AIR RESERVOIR
50
SWITCH RETARDER,5 0695295 220080
53
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
56
T-FITTING EXHAUST-BRAKE POWER CYLINDER
999
PRESSURE SWITCH MAKE PULSE 0.5BAR
