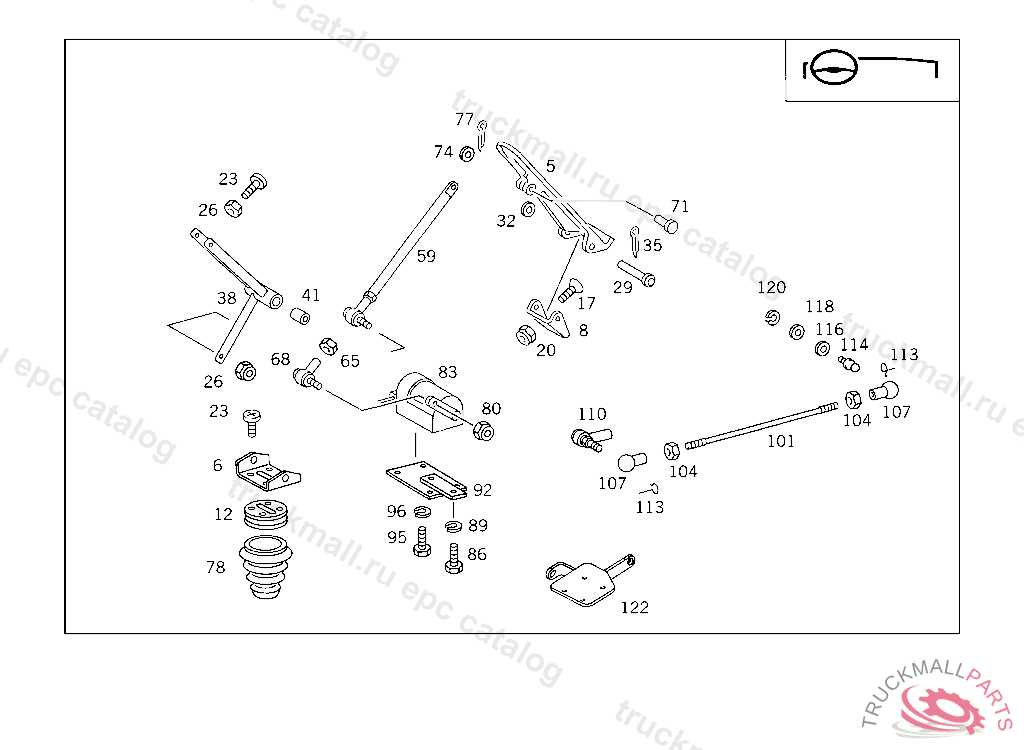

Поз.
Артикул
Описание
5
PEDAL PLATE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL
17
SCREW ARTICULATION ELEMENT TO FLOOR
20
NUT , Replaced By: N913004008001
23
SCREW , Replaced By: A0009906233
23
SCREW PEDAL STOP
26
NUT , Replaced By: N304035008001
26
NUT
29
PIN ACCELERATOR PEDAL TO JOINT
32
WASHER , Replaced By: N000125010532
32
WASHER RADIATOR TO RUBBER MOUNTING
35
COTTER PIN CYLINDER TO BRACKET
59
ROD FROM ACCELERATOR PEDAL TO SENDER UNIT
65
NUT
68
JOINT
71
PIN LEVER WITH SPRING TO STAY
74
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
77
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
80
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
83
SENDER UNIT (SET POINT SENDER UNIT)
86
SCREW , Replaced By: N304017006018
86
SCREW COVER PLATE TO COVER PLATE M 6 X 12
89
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
BRACKET SENDER UNIT
95
SCREW , Replaced By: N304017008039
95
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
96
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
101
PULL ROD INJECTION PUMP CONTROL 600 MM
101
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
104
NUT BALL PIVOT TO LEVER
107
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
110
JOINT WIRE CABLE TO TRANSMISSION,5 264278
113
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
114
BALL PIVOT ACCELERATOR PEDAL,4 859026
114
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
114
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
116
SEAL RING MODULATION PRESSURE CONTROL
118
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
120
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
122
BRACKET RANGE SELECTOR SENDER UNIT
