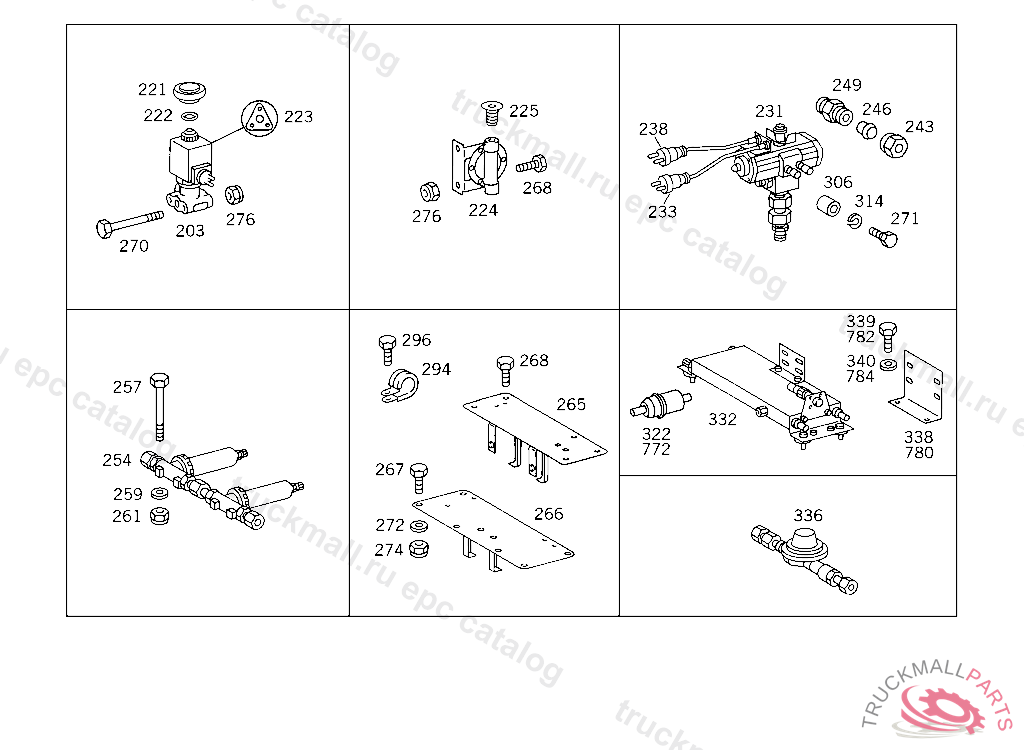

Поз.
Артикул
Описание
203
VALVE (3/2-WAY SOLENOID VALVE) EKS
203
VALVE (3/2-WAY SOLENOID VALVE) WABCO
203
VALVE (3/2-WAY SOLENOID VALVE) KNORR
203
VALVE (3/2-WAY SOLENOID VALVE) EKS
203
VALVE , Replaced By: A0049975736
221
PROTECTIVE CAPWABCO
222
SEAL RINGWABCO
223
GASKET KITKNORR
224
VALVE (3/2-WAY SOLENOID VALVE)
225
NOZZLE COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER
231
VALVE COOLING AIR
233
SWITCH
238
SWITCH
243
UNION NUT
246
GLAND , Replaced By: A0019901267
249
FITTING HIGH PRESSURE LINE TO STEERING
254
SEPARATOR (WATER SEPARATOR)
257
SCREW CURRENT LIMITER M4 X 25,5 4475325 584018
259
WASHER BRACKET TO SUPPORT
259
WASHER , Replaced By: N000125004319
261
NUT ATTACHMENT, MARKER LIGHT
261
NUT , Replaced By: N913002004001
265
PLATE VALVE MOUNTING
266
PLATE VALVE MOUNTING,074199
267
SCREW CLAMP TO BRACKET AND TO PIPE
268
SCREW COVER PLATE TO BRACKET
268
SCREW FROM AIR CLEANER TO AIR INTAKE PIPE
268
SCREW , Replaced By: N304017004010
268
SCREW , Replaced By: N304017004010
268
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
268
SCREW COVER PLATE TO COVER PLATE M 6 X 12
268
SCREW , Replaced By: N304017006018
270
SCREW , Replaced By: N304017008028
271
SCREW REAR EXHAUST PIPE TO MUFFLER
272
WASHER EXHAUST MUFFLER TO STRAP
272
WASHER , Replaced By: N000125008443
274
NUT , Replaced By: N913004008001
276
NUT ATTACHMENT, MARKER LIGHT
276
NUT , Replaced By: N913002004001
276
NUT , Replaced By: N913004008001
276
NUT PUMP TO BRACKET
276
NUT , Replaced By: N913004006001
294
CLAMP DELIVERY AND SUCTION LINES TO FRAME
294
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
296
SCREW COVER PLATE TO BRACKET
306
SPACER TUBE SOLENOID VALVE TO BRACKET
314
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
322
FILTER FUEL FILTER
332
PUMP (METERING PUMP)
336
VALVE (PRESSURE CONTROL VALVE)
338
BRACKET METERING UNIT
339
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
339
SCREW , Replaced By: N304017008039
340
WASHER EXHAUST MUFFLER TO STRAP
340
WASHER , Replaced By: N000125008443
772
FILTER FUEL FILTER
780
BRACKET METERING UNIT
782
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
782
SCREW , Replaced By: N304017008039
784
WASHER EXHAUST MUFFLER TO STRAP
784
WASHER , Replaced By: N000125008443
999
SEPARATOR (WATER SEPARATOR)
999
VALVE COOLING AIR
999
VALVE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
CONNECTOR HEATER PLUG
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
ACTIVATING AGENT
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
RUBBER BUFFER COVERING TO FRAME
999
FITTING LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE,079546
999
CONNECTOR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
LINE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
VALVE PRESSURE RELIEF VALVE
999
PUMP (METERING PUMP)
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
999
BRACKET AT BRACKET
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE CONNECTOR
999
FLEXIBLE METAL TUBE FRONT LEFT
