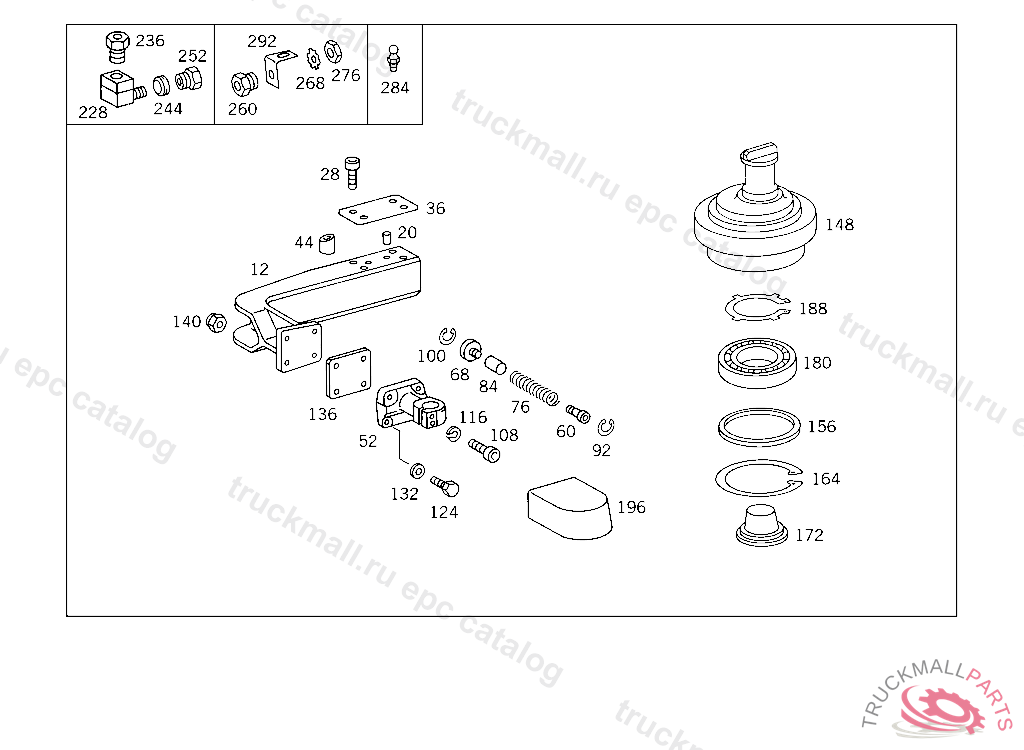

Поз.
Артикул
Описание
12
FEELER ARM
20
DOWEL PIN FEELER ARM TO STEERING KNUCKLE
28
SCREW FEELER ARM TO STEERING KNUCKLE M 20X1.5X130
36
SHIM FEELER ARM TO STEERING KNUCKLE
44
CLAMPING PIECE FEELER ARM TO STEERING KNUCKLE
52
BRACKET FEELER ARM TO STEERING KNUCKLE
60
PIN FEELER ARM TO STEERING KNUCKLE
68
PIN FEELER ARM TO STEERING KNUCKLE
76
SPRING FEELER ARM TO STEERING KNUCKLE
84
BEARING TUBE
92
LOCK RING FEELER ARM TO STEERING KNUCKLE
100
LOCK RING FEELER ARM TO STEERING KNUCKLE
108
HEXALOBULAR BOLT. SCREWM 8X45
108
SCREW , Replaced By: N000000001448
116
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
116
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL, Replaced By: N912006008000
124
SCREW. HEXAGON HEAD BOLT RADIATOR PROTECTION,BOTTOM
124
SCREW , Replaced By: N304017010039
132
WASHER STRUT TO CROSS MEMBER
132
WASHER , Replaced By: N007349010007
136
SHIM BRACKET TO BODY
140
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
148
ROLLER FEELER ROLLER
156
SEAL RING FEELER ROLLER
164
RETAINING RING. LOCK RING DRIVE SHAFT
172
PLUG FEELER ROLLER
180
BALL BEARING FEELER ROLLER
188
LOCK RING INTERMEDIATE SHAFT BEARING
196
DUST CAP BRACKET TO BODY
228
ELBOW LINE CONNECTIONS VOGEL, M 10X1
236
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
244
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
244
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
252
UNION SCREW RELEASE COLLAR LUBRICATION
252
UNION SCREW RELEASE COLLAR LUBRICATION
260
BULKHEAD FITTING RELEASE BEARING LUBRICATION
268
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
276
NUT JOINT TO BRACKET
276
NUT , Replaced By: N308675014001
284
GREASE NIPPLE
292
BRACKET LINE TO BRACKET
292
BRACKET LINE TO BRACKET
999
DUST CAP TOP
999
LINE LEFT
999
LINE RIGHT
