Главная
›
Mercedes
›
CAR
›
E 280
›
210.053 TO MODELLJAHR CODE 809
›

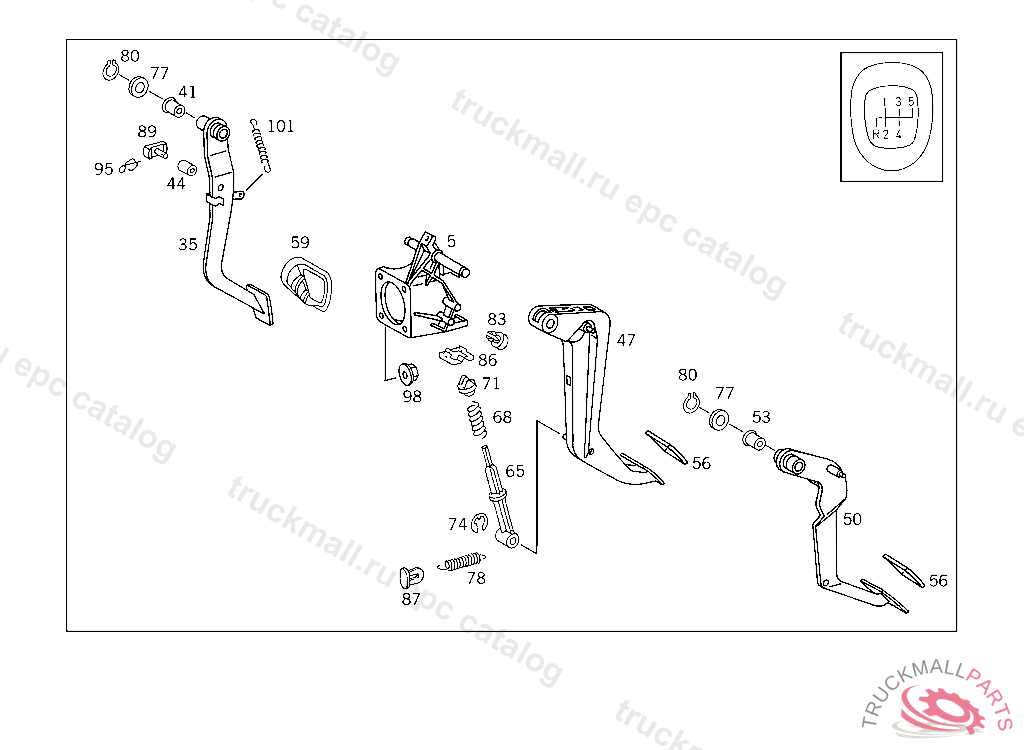

29 PEDAL ASSEMBLY
›
015 PEDAL ASSEMBLY WITH BEARING IL. 1
Mercedes A1242920074 - Болт
E 280 210.053 TO MODELLJAHR CODE 809
29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING IL. 1
Поз.
Артикул
Описание
5
A2102900519
BEARING BRACKET , Replaced By: A2102901319
35
A2102901618
BRAKE PEDAL , B 19111220000705 X 04509620000704
41
A1242920050
BUSHING BRAKE PEDAL
44
A1262920050
BUSHING
47
A2022901416
CLUTCH PEDAL
53
A2022910150
BUSHING
56
A2012910282
PAD CLUTCH PEDAL
59
A2012920082
PAD BRAKE PEDAL
65
A2012910633
ROD
68
A1249931001
SPRING OVER-CENTER ACTING SPRING,028,126:A521684 F655710
71
A1232910491
SPRING RETAINER OVER-CENTER ACTING SPRING
77
A1152910076
WASHER PEDALS TO PIVOT PINS
80
N000471016001
LOCK RING , Replaced By: A0079942041
80
A0079942041
LOCK STOP TO BEARING BRACKET
83
A1232910286
STOP BRAKE PEDAL
86
A2109880978
CLIP
89
A1242920074
PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
95
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
98
N913017008000
NUT COVERING TO RAIL
101
A1409930510
SPRING BRAKE PEDAL RELEASE SPRING
