LAK 1513
360.112
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
001 REDUCTION GEARING AND ANGLE DRIVE,UP TO IDENT NO.5 223296

Mercedes A0005420747 - Соединит. элемент

LAK 1513 360.112

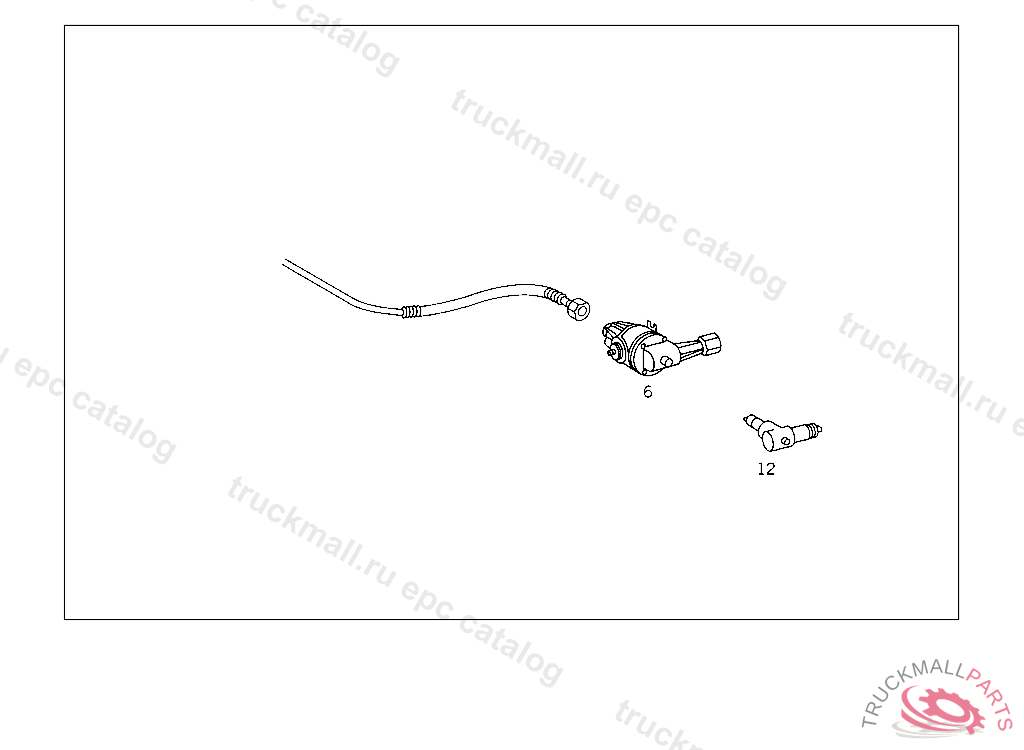

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 REDUCTION GEARING AND ANGLE DRIVE,UP TO IDENT NO.5 223296

Поз.
Артикул
Описание
6
A0025423030
REDUCTION GEARING1.100
6
A0035425330
REDUCTION GEARING RATIO: N10.8500 N21.1934
6
A0025427930
REDUCTION GEARING , Replaced By: A0035425330
6
A0025425830
REDUCTION GEARING0.769
6
A0025423630
REDUCTION GEARING , Replaced By: A0015424330
6
A0015429930
REDUCTION GEARING24 V
6
A0015425230
ANGLE DRIVE. REDUCTION GEARING , Replaced By: A0025425830
6
A0015424330
REDUCTION GEARING0.643
6
A0025423030
REDUCTION GEARING1.100
6
A0015429730
REDUCTION GEARING
6
A0015429830
REDUCTION GEARING , Replaced By: A0025429130
6
A0025425730
REDUCTION GEARING
6
A0025421230
REDUCTION GEARING RATIO: N11.000 N21.404
6
A0015424230
REDUCTION GEARING0.792
6
A0025428130
REDUCTION GEARING
6
A0025429130
ANGLE DRIVE RATIO: N11.1764 N21.6516
6
A0015429630
ANGLE DRIVE. REDUCTION GEARING , Replaced By: A0015424830
6
A0025421530
REDUCTION GEARING RATIO: N10.9629 N21.3519
6
A0015424430
REDUCTION GEARING1.000
6
A0015425630
REDUCTION GEARING1.071
6
A0015424830
REDUCTION GEARING1.176
6
A0015427430
REDUCTION GEARING RATIO: N11.0714 N21.5042
6
A0025421130
REDUCTION GEARING , Replaced By: A0015425630
6
A0025427530
REDUCTION GEARING RATIO: N10.6428 N20.9024
6
A0035420730
REDUCTION GEARING RATIO: N11.2105 N21.6995
6
A0015425630
REDUCTION GEARING1.071
6
A0015425930
REDUCTION GEARING0.643
6
A0035420630
REDUCTION GEARING1.210
6
A0025429030
REDUCTION GEARING RATIO: N10.9375 N21.3162
12
A0005422830
ANGLE DRIVE1.1000
12
A0015423330
ANGLE DRIVE , Replaced By: A0005422830
12
A0005426330
ANGLE DRIVE RATIO: 1:0.818
12
A0005424230
ANGLE DRIVE RATIO: 1:0.882
12
A0025422630
ANGLE DRIVE
12
A0015427630
ANGLE DRIVE RATIO: 1:0.850
12
A0025428730
ANGLE DRIVE , Replaced By: A0005424230
12
A0005424530
ANGLE DRIVE , Replaced By: A0025424530
12
A0025426130
ANGLE DRIVE , Replaced By: A0025423830
12
A0035423130
ANGLE DRIVE RATIO: 1:0.961
12
A0035422330
ANGLE DRIVE1.3750
12
A0005421330
ANGLE DRIVE RATIO: 1:1.100
12
A0035423530
ANGLE DRIVE0.9615
12
A0035424230
REDUCTION GEARING0.818
12
A0005429330
ANGLE DRIVE1.2105
12
A0005423530
ANGLE DRIVE
12
A0015422230
ANGLE DRIVE , Replaced By: A0035423530
12
A0025427830
ANGLE DRIVE , Replaced By: A0035424230
12
A0005420630
ANGLE DRIVE SPEEDOMETER
12
A0025423830
ANGLE DRIVE0.8500
12
A0025429930
ANGLE DRIVE1.2500
12
A0015421130
ANGLE DRIVE , Replaced By: A0005420630
12
A0015421930
ANGLE DRIVE RATIO: 1:0.736
12
A0025428530
ANGLE DRIVE0.6250
12
A0025424530
ANGLE DRIVE0.8181
12
A0035421730
ANGLE DRIVE1.1420
12
A0005422930
ANGLE DRIVE TACHOGRAPH
12
A0015429530
ANGLE DRIVE
12
A0025422730
ANGLE DRIVE1.1764
12
A0025424730
ANGLE DRIVE , Replaced By: A0025424530
12
A0025427430
ANGLE DRIVE0.6400
12
A0025422130
ANGLE DRIVE0.7895
12
A0025425530
ANGLE DRIVE
12
A0025424030
ANGLE DRIVE
12
A0005423430
ANGLE DRIVE , Replaced By: A3445420230
12
A0015421730
ANGLE DRIVE RATIO: 1:0.909
12
A0025427030
ANGLE DRIVE0.375
12
A0015426030
ANGLE DRIVE1.0714
12
A0025427630
ANGLE DRIVE0.8823
12
A0025426030
ANGLE DRIVE , Replaced By: A0025427630
12
A0035425430
REDUCTION GEARING RATIO: N11.0400 N21.4602
12
A0025421330
ANGLE DRIVE , Replaced By: A0035425430
12
A0025423930
ANGLE DRIVE0.9090
999
A0005420646
CONNECTOR ANGLE DRIVE
999
A0005420730
ANGLE DRIVE , Replaced By: A0015422730
999
A0005420747
COUPLER ANGLE DRIVE
999
A0005422730
ANGLE DRIVE , Replaced By: A0015429430
999
A0005424330
ANGLE DRIVE , Replaced By: A0035423130
999
A0015420830
ANGLE DRIVE RATIO: 1:1.210
999
A0015421830
ANGLE DRIVE RATIO: 1:1.071
999
A0015424530
ANGLE DRIVE. REDUCTION GEARING0.882
999
A0015424630
REDUCTION GEARING0.909
999
A0015429230
ANGLE DRIVE , Replaced By: A0015421830
999
A0025423730
REDUCTION GEARING
999
A0025427730
ANGLE DRIVE. REDUCTION GEARING12 V
999
A3375425140
BRACKET REDUCTION GEARING,065793
999
A3525846440
DECALCOMANIA SHOWING GEARSHIFT PATTERN
999
N000125005317
WASHER , Replaced By: N000433005304
999
N000433005304
WASHER BOOT TO CAB FLOOR
999
N000933005073
SCREW BRACKET TO CROSS MEMBER 5X18
999
N304032005002
NUT , Replaced By: N304032005005
999
N304032005005
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
