Главная
›
Mercedes
›
BUS
›
OH 1626 L/30
›
368.150
›
46 STEERING
›

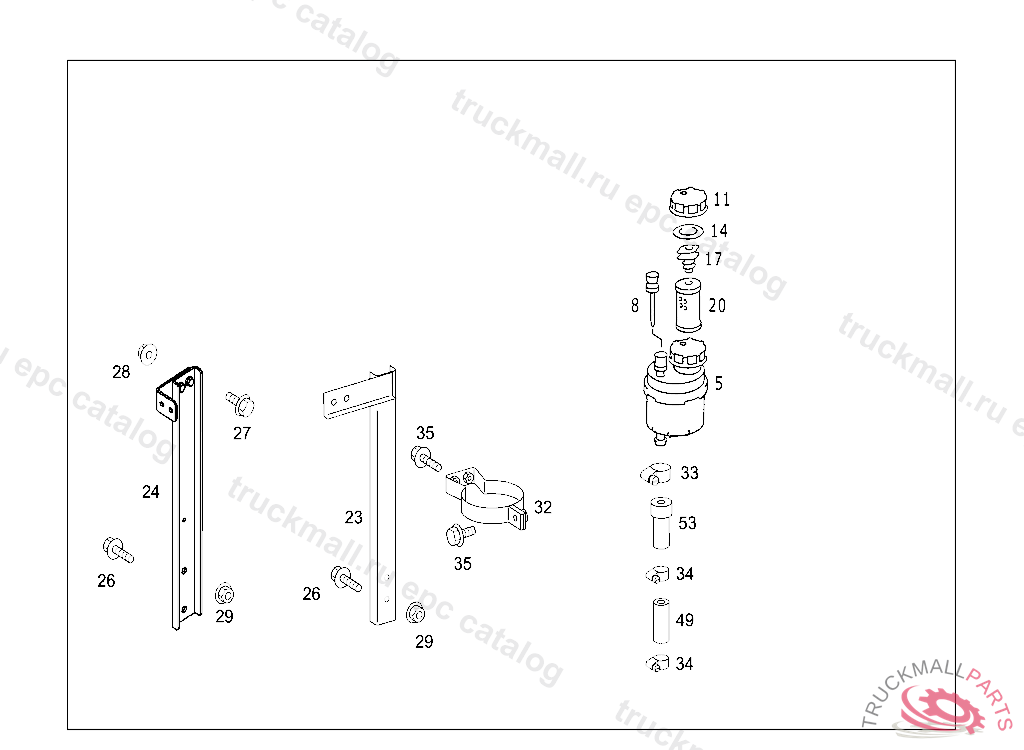

090 OIL TANK AND HYDRAULIC LINES IL. 1
Mercedes N916017016000 - SCHELLE 16-25
OH 1626 L/30 368.150
46 STEERING - 090 OIL TANK AND HYDRAULIC LINES IL. 1
Поз.
Артикул
Описание
5
A6954667102
TANK POWER STEERING
8
A0004661067
OIL DIPSTICK ,D 523393
11
A0004660568
FILLER CAP
14
A0004661760
SEAL RING
17
A0004660740
BRACKET
20
A0001842225
FILTER ELEMENT ,D 441028D 523393
23
A3824600135
BRACKET OIL TANK
23
A6344600235
BRACKET OIL TANK
24
A3684601135
BRACKET OIL TANK
26
N910105014013
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
26
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
27
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
28
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
29
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
29
N000000005662
NUT SUPPORT TO FRAME
32
A3844607065
STRAP OIL TANK
33
N916017016000
CLAMP HOSE TO FITTING AND TO OIL TANK
34
N916017020000
CLAMP , Replaced By: N000000000667
35
N910105010006
SCREWM 10X20
49
A3824660957
LINE FROM HOSE TO HOSE,D 291813
53
A3824667281
HOSE POWER STEERING
