Поз.
Артикул
Описание
5

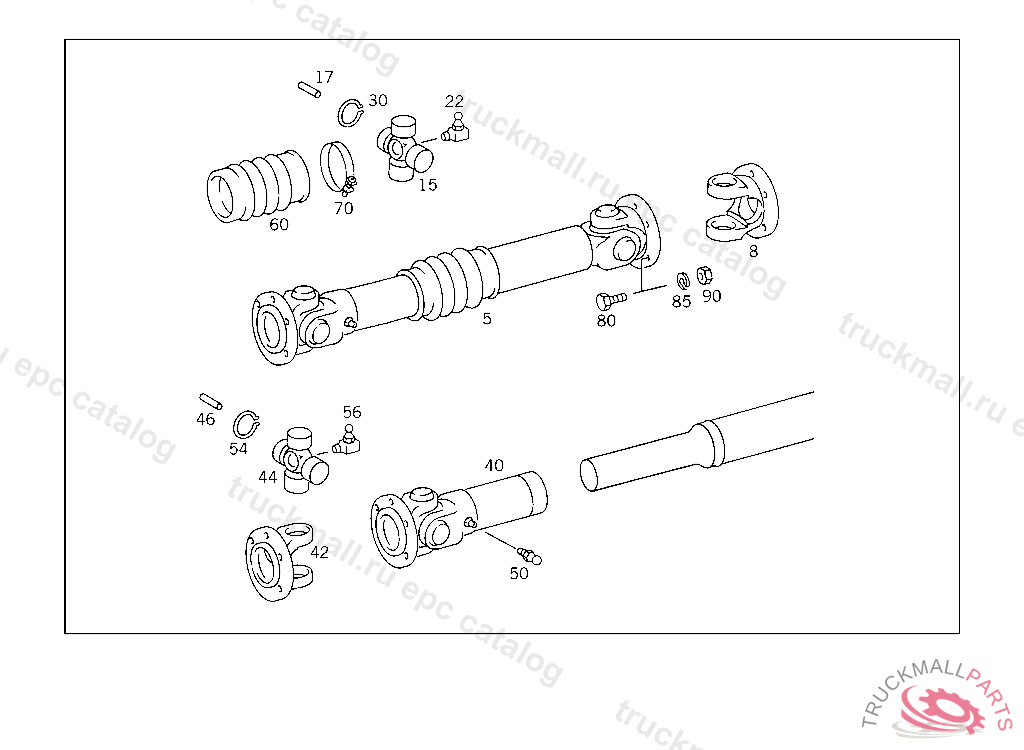

PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 803 MM
8
DRIVE FLANGE
15
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
17
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
17
NEEDLE , Replaced By: A3189810287
22
GREASE NIPPLE
22
GREASE NIPPLE
30
SNAP RING2.750 MM
30
SNAP RING2.700 MM
30
SNAP RING2.650 MM
30
SNAP RING2.600 MM
30
SNAP RING2.550 MM
30
SNAP RING2.500 MM
40
UNIVERSAL JOINT YOKE
42
DRIVE FLANGE
44
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
46
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
46
NEEDLE , Replaced By: A3189810287
50
GREASE NIPPLE
50
GREASE NIPPLE INTERMEDIATE LEVER
54
SNAP RING2.750 MM
54
SNAP RING2.700 MM
54
SNAP RING2.650 MM
54
SNAP RING2.600 MM
54
SNAP RING2.550 MM
54
SNAP RING2.500 MM
56
GREASE NIPPLE
56
GREASE NIPPLE INTERMEDIATE LEVER
60
BOOT
70
CLAMP , WITH BOOT
80
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
85
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
90
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
90
NUT FROM PROPELLER SHAFT TO FRONT AXLE
