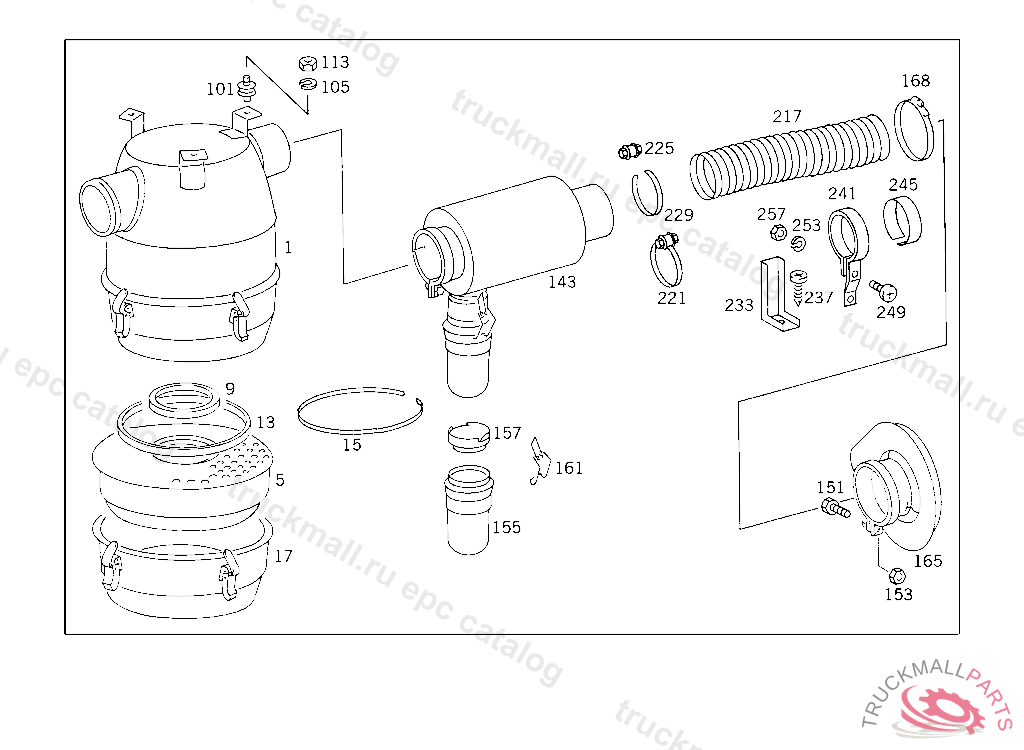

Поз.
Артикул
Описание
1
AIR CLEANER SEE GROUP: 52
5
FILTER ELEMENT
9
GASKET INSIDE
13
GASKET OUTSIDE
17
FILTER BOWL
101
RUBBER MOUNTING AIR CLEANER TO BODY
101
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
105
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
113
NUT , Replaced By: N304032008006
143
AIR CLEANER SEE GROUP: 52, 044506
151
HEX. -HD. SCREW. SCREWTO 006 094 88 02
153
NUTTO 345 094 81 02
155
DUST COLLECTOR BOWL
157
SCOOP
161
FASTENER
165
RAIN DEFLECTOR CAP
217
HOSE FROM INTAKE ELBOW TO COOLING AIR INTAKE CHAMBER
221
LOOM TIE INTAKE PIPE TO AIR CLEANER
225
LOOM TIE ALTERNATOR BREATHING
229
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE
233
BRACKET HOSE
237
SHEET METAL SCREW BRACKET TO WINDOW LEVEL GIRDER
241
BRACKET HOSE TO BRACKET
245
RUBBER SEAL HOSE TO BRACKET
249
SCREW SWITCH TO APPARATUS PLATE, 10/20 UP TO IDENT NO. 4 422632, 50/60 UP TO IDENT NO. 4 422723
253
LOCK WASHER WIRE CABLE TO LEVER
257
NUT SPRING-LOADED PUSH ROD
257
NUT BALL PIVOT TO LEVER
999
999
SEAL CONE
