Mercedes A1154710079 - УПЛОТНЕНИЕ

E 420 210.072 TO MODELLJAHR CODE 809 / MB GUARD

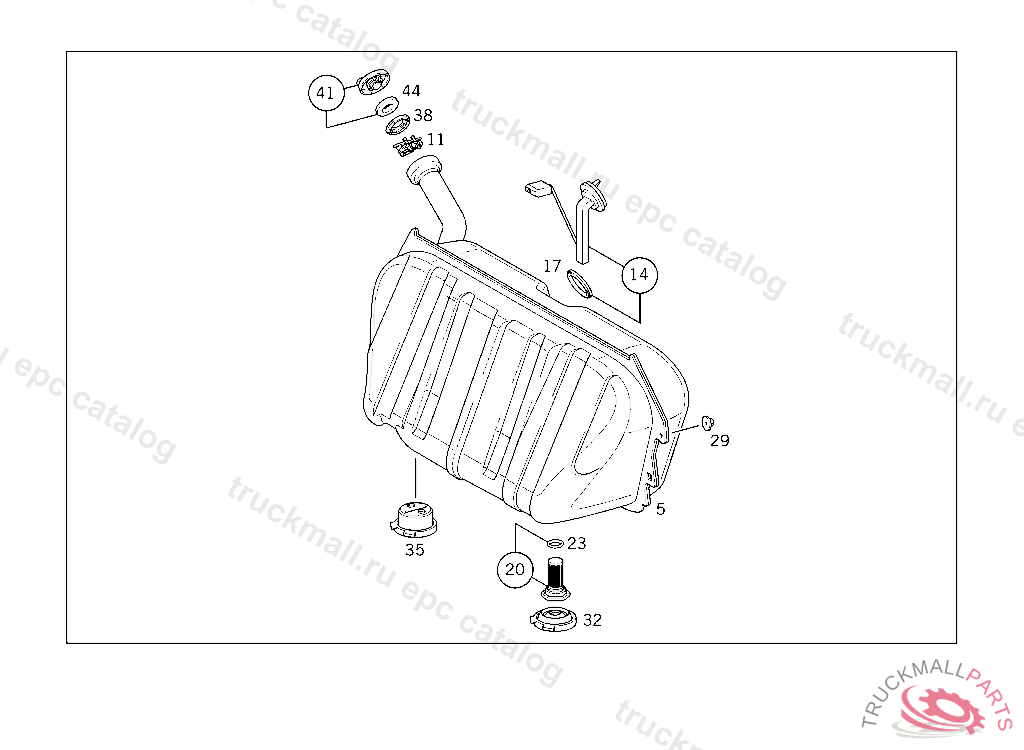

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
5
A2104704901
FUEL TANK
11
A1694700029
FILLER NECK
11
A1164700129
FUNNEL , Replaced By: A1694700029
14
A2105424017
SENDER UNIT
14
A2105422317
SENDER UNIT , Replaced By: A2105424017
14
A2105421617
SENDER UNIT
14
A2105421117
SENDER UNIT , Replaced By: A2105421617
17
A2104710079
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
17
A2104710179
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806, Replaced By: A2104710079
20
A2104700106
FUEL STRAINER PARTS KIT
23
A1109970145
SEAL RING
29
A0009903350
NUT , Replaced By: N913002008004
32
A1244710481
BOOT RIGHT
35
A2104710081
BOOT BODY SEAL LINE TERMINALS
38
A1409973981
GROMMET FILLER NECK
41
A1404700005
FILLER CAP CENTRAL LOCKING MECHANISM TO 124 470 08 04 / 09 04
44
A1154710079
SEAL RING
