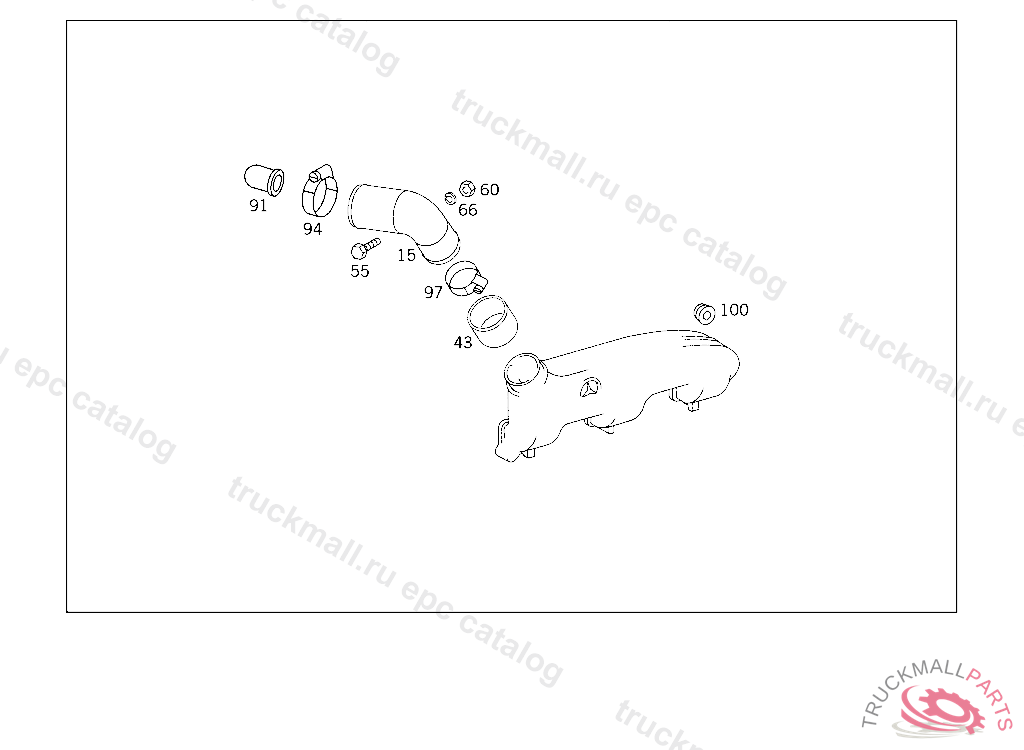

Поз.
Артикул
Описание
15
PIPE ELBOW AIR CLEANER
43
HOSE CHARGING AIR ELBOW TO COMPRESSED AIR ELBOW
43
SLEEVE , Replaced By: A3829977782
55
SCREW PULLEY
55
SCREW AIR INTAKE PIPE TO BRACKET M 8X16
60
NUT LEVER TO SHIFTING SHAFT
66
LOCK WASHER
91
LOCKING CAP AIR COMPRESSOR
94
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
94
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
97
CLAMP , Replaced By: N000000000674
97
CLAMP HOSE 70-90X13 MM
97
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
97
CLAMP MOLDED HOSE TO TURBOCHARGER AND TO INTAKE PIPE
97
CLAMP AIR INTAKE PIPE TO ENGINE "100"
100
SCREW PLUG STABILIZER
999
SLEEVE , UP TO ENGINE 328004 YEAR OF MANUFACTURE 1994
999
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
999
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
999
AIR INTAKE PIPE
999
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
999
BRACKET
999
ELBOW , Replaced By: A3640981515
999
HOSE (MOLDED HOSE),AIR INTAKE
999
BRACKET , Replaced By: A3660983139
999
AIR INTAKE PIPE , NOT USED
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE
999
BRACKET CLAMPED UNDER FUEL FILTER
999
BRACKET BRACKET TO POWER STEERING PUMP SUPPORT
999
SLEEVE , Replaced By: A3829977782
999
PIPE ELBOW
999
HOSE PIPE ELBOW TO CHARGING AIR INTERCOOLER
999
LOOM TIE FROM CHARGING AIR INTERCOOLER TO ENGINE
999
CLAMP AIR INTAKE PIPE
999
WASHER , Replaced By: N000125008443
999
SCREWM 8X18
999
NUT
999
CLAMP , Replaced By: N000000000674
