Mercedes A0139900701 - Болт

OM 366LA - MTU 377.994

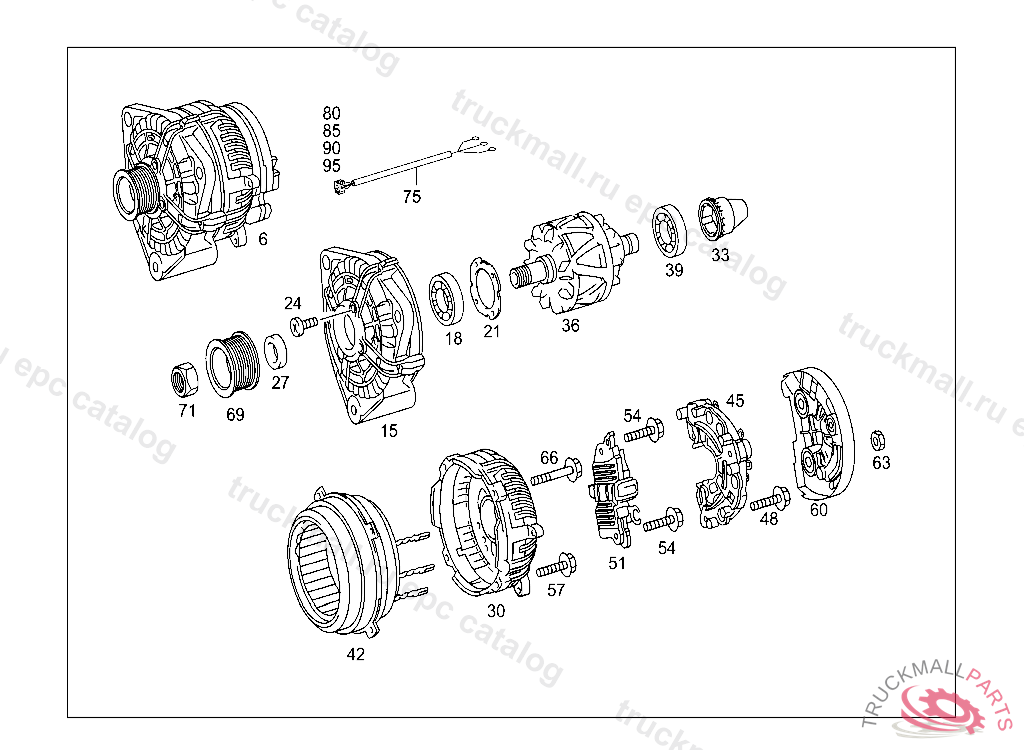

15 ELECTRICAL EQUIPMENT - 030 ALTERNATOR

Поз.
Артикул
Описание
6
A3761540302
ALTERNATOR WITH REGULATOR INCORPORATED AND PULLEY "BOSCH", 14V, 55A
15
A0001542649
BEARING
18
A0089818425
BALL BEARING
21
A0001540452
SPACER WASHER
24
A0009901206
SCREW
27
A0001540451
SPACER RING
30
A0001542749
BEARING
33
A0001541757
RINGTO A 376 154 03 02
36
A0001548315
ROTOR
39
A0089818625
BALL BEARING REAR
42
A0001547625
COIL
45
A0011544116
RECTIFIER
48
A0139900601
SCREW
51
A0001542905
REGULATOR
54
A0019906121
SCREW REGULATOR AND CUT-OUT
57
A0139900701
SCREW
60
A0001561924
SUPPRESSOR CAP
63
A0059903651
NUT
66
A3819900721
SCREW SHELL TO STEERING COLUMN M 5X70,D 020659
69
A0011555015
PULLEY
71
A0009902250
NUT PULLEY TO ALTERNATOR
