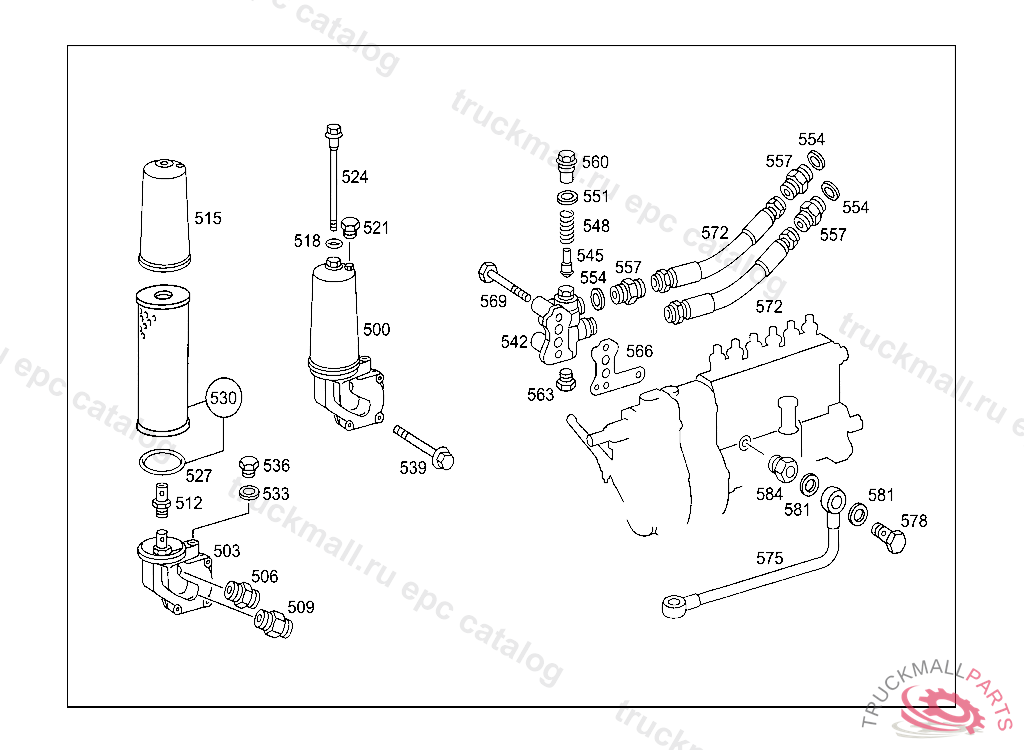

Поз.
Артикул
Описание
500
OIL FILTER COVER TO OIL PAN
503
COVER
506
FITTING OIL COOLER HOUSING
509
FITTING
512
THREADED UNIONTO 364 180 04 10,366 180 09 10, 343.910 FROM ENGINE 187540,344.912 FROM ENGINE 981244
515
FILTER BOWL ,525468
518
SEAL RINGTO 001 431 72 14
518
GASKETTO 366 180 09 10
521
SCREW PLUGTO 366 180 09 10
524
SCREW FILTER BOWL TO FILTER HEAD TO 366 180 09 10
527
SEAL RING
530
FILTER ELEMENT WITH GASKETS TO 366 180 09 10
533
SEAL RING INJECTION PUMP
536
SCREW PLUG WATER SEPARATOR
539
SCREWTO 376 131 74 01
542
CONNECTOR OIL DELIVERY LINE TO CYLINDER CRANKCASE, 343 FROM ENGINE 128149, 344 FROM ENGINE 729031
545
VALVE
548
SPRING BY-PASS VALVE
551
SEALING RING. SEAL RING OIL DRAIN
554
SEAL RING VALVE TO VALVE,K 025179
557
SCREW FITTING
560
SCREW PLUG , Replaced By: A3221840056
563
SCREW PLUG , Replaced By: N007604018101
566
GASKET OIL FILTER TO CYLINDER CRANKCASE, FROM ENGINE 923827-999999 YEAR OF MANUFACTURE 1988-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
569
SCREW FILTER HEAD TO CYLINDER CRANKCASE
572
OIL LINE FROM CONNECTOR TO OIL FILTER, FEED AND RETURN
575
OIL LINE
578
HOLLOW SCREW BREATHER LINE TO HEAT EXCHANGER
581
SEAL RING BRAKE CYLINDER STROKE INDICATOR
