Главная
›
Mercedes
›
TRUCK
›
1017 A
›
380.113
›

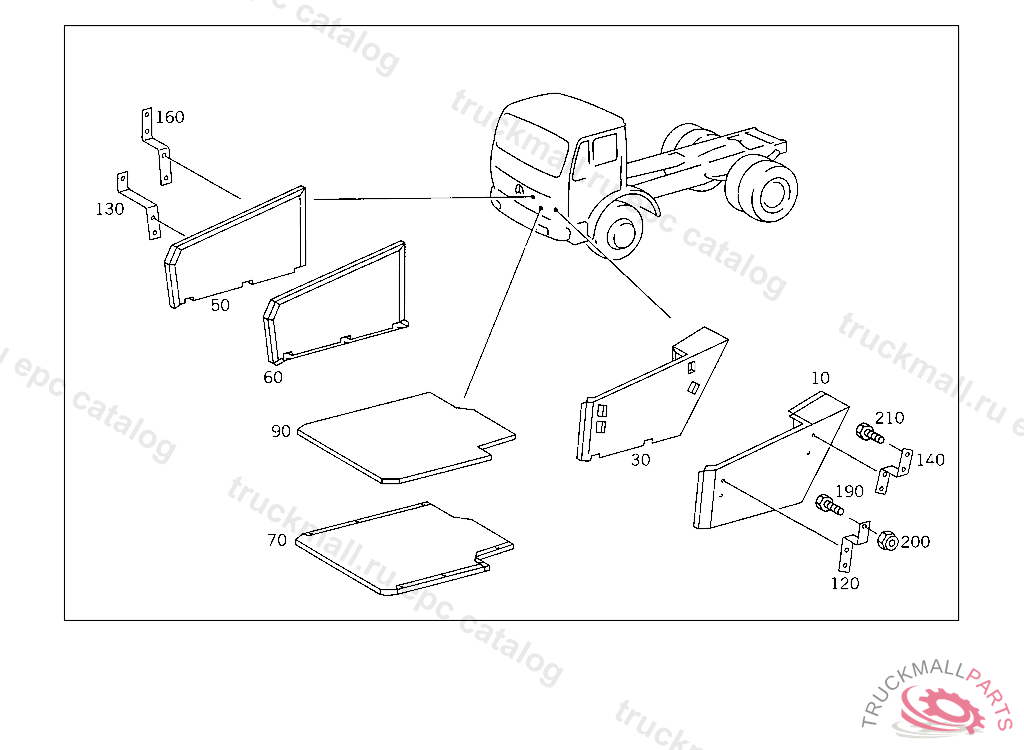

47 FUEL SYSTEM
›
001 FUEL TANK AND SUSPENSION
Mercedes N913002012004 - ГАЙКА М12
1017 A 380.113
47 FUEL SYSTEM - 001 FUEL TANK AND SUSPENSION
Поз.
Артикул
Описание
10
A6175203922
COVERING LEFT
30
A6175241997
SEALING PLATE
50
A6175203822
COVERING RIGHT
50
A6525200322
COVERING RIGHT
60
A6525240197
SEALING PLATE
60
A6175241697
SEALING PLATE
70
A6175203722
COVERING BOTTOM
90
A6175241897
SEALING PLATE
120
A6155240240
BRACKET LEFT FRONT, NOT USED
130
A6175245340
BRACKET RIGHT FRONT
140
A6175246140
BRACKET REAR LEFT
160
A6175244940
BRACKET REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
190
N000961012106
SCREW BRACKET TO FRAME M 12X35
200
N000961012164
SCREW BRACKET TO LEFT SIDE MEMBER
210
N910113012002
NUT SUPPORT TO SIDE MEMBER
999
A0009842336
LOCKING PIN
999
A0009941210
LOCK PROTECTIVE PLATE TO BRACKET
999
A6155240497
SEALING PLATE , Replaced By: A6175241897
999
N000961012122
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
N913002012004
NUT END PIECE TO EXHAUST PIPE
