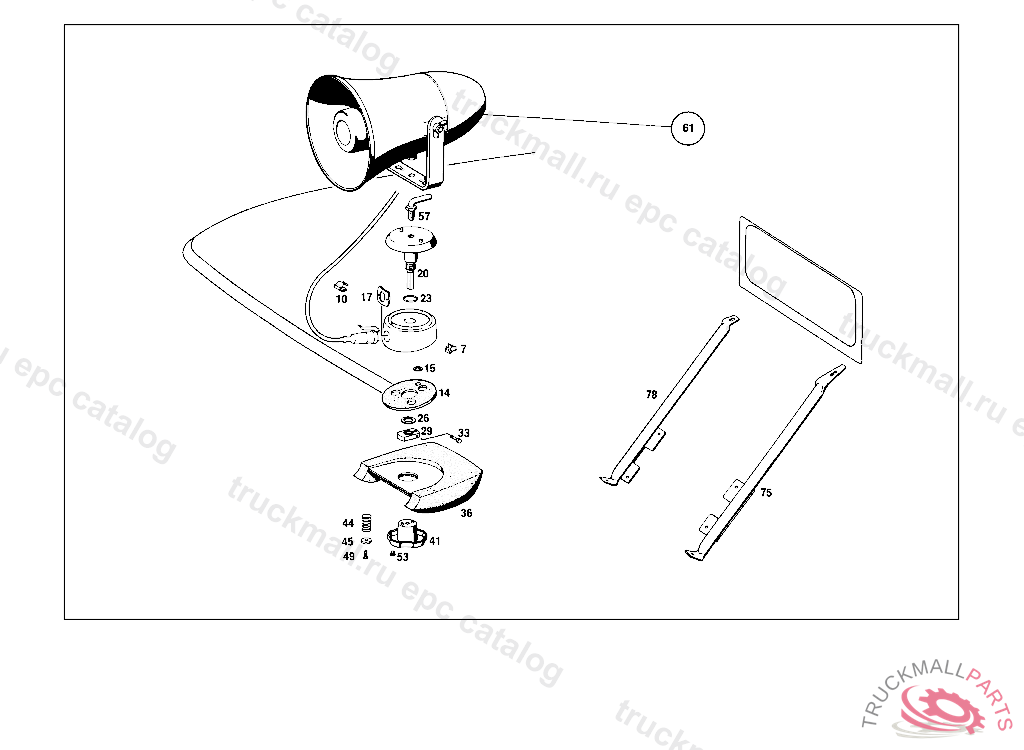

Поз.
Артикул
Описание
7
CLIP
10
CLIP CABLE HARNESS TO ROOF RAIL
14
PAD
15
SEAL RING
17
PAD
20
FASTENER
23
SEAL RING
26
SPRING WASHER LEVER TO BRACKET
29
NUT
33
SCREW
36
PAD
41
HANDLE , Replaced By: A1158200181
44
SPRING HANDLE
45
WASHER
49
SCREW
53
PLUG TO PLUG THE BORES
57
HANDLE LOUDSPEAKER ON FASTENER
61
RADIO COMMUNICATION UNIT
75
BRACKET LEFT
78
BRACKET RIGHT
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021005205
999
SCREW APPARATUS PLATE TO CAB,K 062140
999
SCREW ,K 062140, Replaced By: N007985006580
999
SCREW LINE TO CROSS MEMBER
999
SCREW REGULATOR AND CUT-OUT M 6X12
999
SHEET METAL SCREW
999
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
999
SHEET METAL SCREW , FROM CHASSIS: 010 012069 110 026452
999
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203
999
SHEET METAL SCREW BRACKET TO CAB
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
TAPPING SCREW
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
RUBBER BUFFER
999
ELECTRIC CABLE
999
BRACKET
999
RADIO COMMUNICATION UNIT
999
RADIO COMMUNICATION UNIT
999
HANDLE LOUDSPEAKER CONTROL
999
SELECTOR
999
PANELLING , STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS:108.016 089157 108.018 094768 108.057 009167 109.056 008707
999
LOOM TIE , Replaced By: A0019974390
999
NUT RETAINER HEATER CASE TO FIRE WALL
999
WASHER
