Поз.
Артикул
Описание

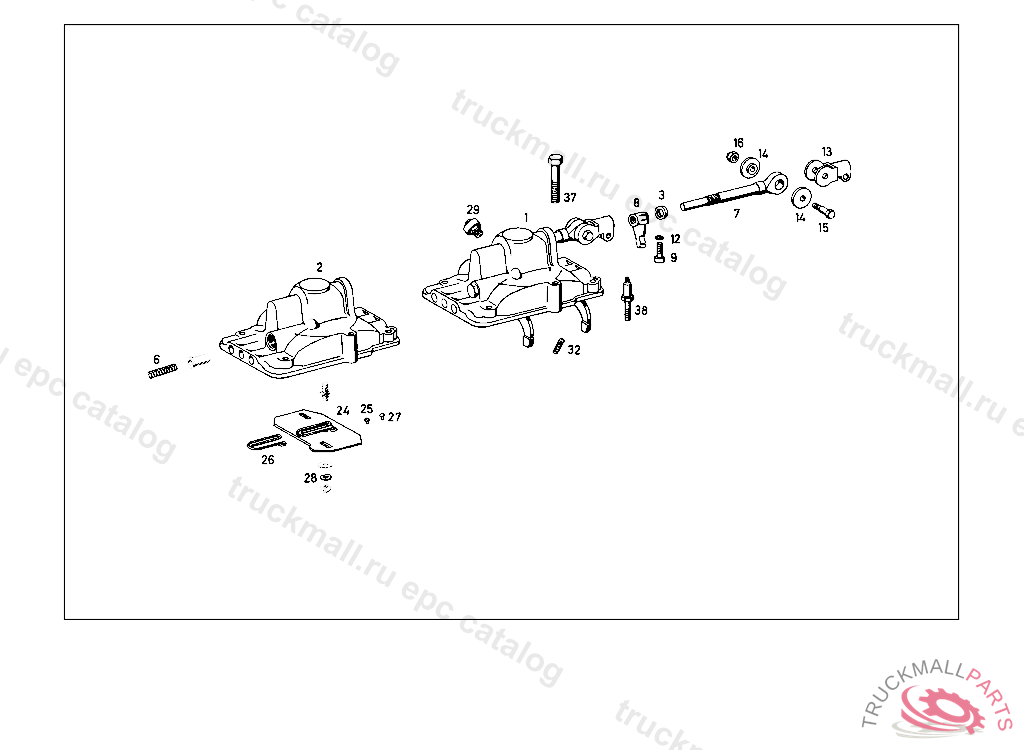

1
TRANSMISSION CASE COVER
1
TRANSMISSION CASE COVER , Replaced By: A1112603414
2
TRANSMISSION CASE COVER , ON SPECIAL REQUEST, FLOOR SHIFT
3
SEAL RING , ON SPECIAL REQUEST, FLOOR SHIFT
6
PRESSURE SPRING INTERLOCK PIN, 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1556499
7
SHAFT , Replaced By: A1112600038
7
SHAFT
8
SHIFTING FINGER , ON SPECIAL REQUEST, FLOOR SHIFT
9
SCREW , ON SPECIAL REQUEST, FLOOR SHIFT
12
LOCK WASHER , ON SPECIAL REQUEST, FLOOR SHIFT
13
YOKE , ON SPECIAL REQUEST, FLOOR SHIFT
14
SEAL , ON SPECIAL REQUEST, FLOOR SHIFT
15
PIN , ON SPECIAL REQUEST, FLOOR SHIFT
16
NUT
24
GUIDE PLATE , ON SPECIAL REQUEST, FLOOR SHIFT
25
PIN , ON SPECIAL REQUEST, FLOOR SHIFT
26
PRESSURE SPRING
27
RIVET , ON SPECIAL REQUEST, FLOOR SHIFT
28
SPRING WASHER , ON SPECIAL REQUEST, FLOOR SHIFT
29
BREATHER TRANSFER CASE
32
SPRING
37
SCREW , Replaced By: N304017008043
37
SCREW VALVE TO BRACKET M 8X55
38
PIN , ON SPECIAL REQUEST, FLOOR SHIFT
999
SEAL RING
999
DETENT PLATE
999
TRANSMISSION WITH BELL HOUSING
999
WASHER 0.30 MM, ON SPECIAL REQUEST, FLOOR SHIFT
999
WASHER 0.20 MM, ON SPECIAL REQUEST, FLOOR SHIFT
999
TRANSMISSION
999
TRANSMISSION WITH BELL HOUSING
999
SHIFTING FINGER
999
LEVER
