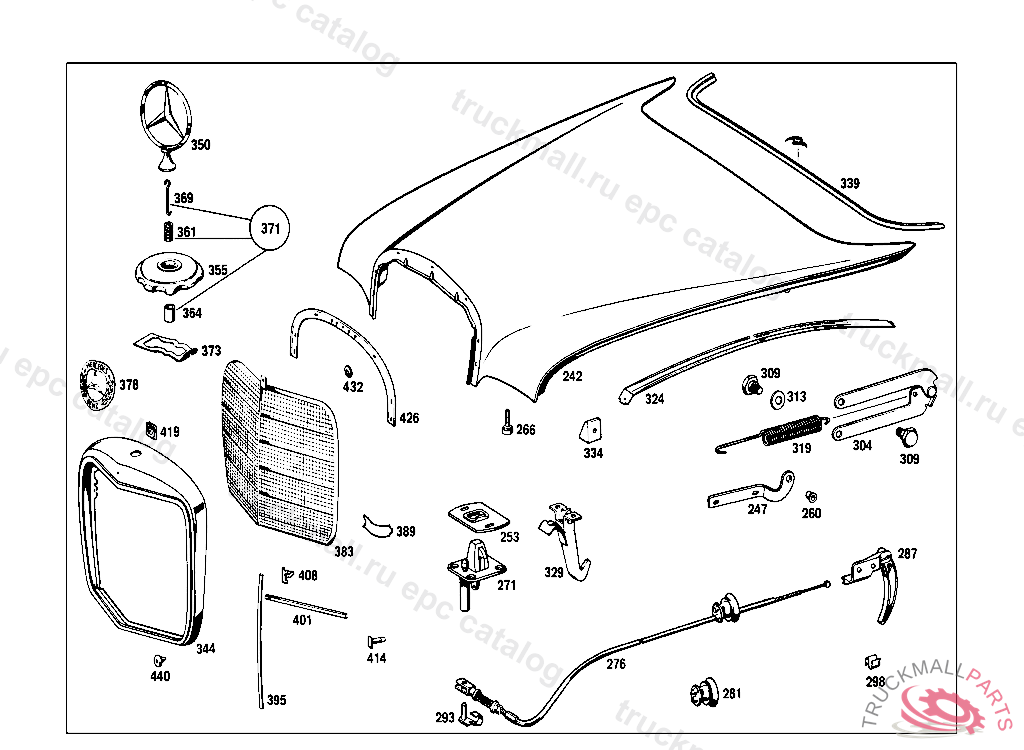

280 S - 108.016 - 88 FRONT AND REAR END SHEET METAL

242

ENGINE HOOD

247

LEVER , Replaced By: A1078870174

247

LEVER , Replaced By: A1088870174

253

ENGINE HOOD CATCH

253

ENGINE HOOD CATCH , Replaced By: A1078800060

260

BUSHING HINGE LEVER TO COWL

266

BUFFER LEFT, FROM CHASSIS: 010 077937

266

BUFFER , Replaced By: A2019880511

266

SCREW , Replaced By: A2019880211

266

STOP SCREW , Replaced By: A2019880211

271

ENGINE HOOD CATCH

276

ENGINE HOOD RELEASE CABLE , 010 FROM CHASSIS 043738 ALSO INSTALLED ON 043732,043734,043736,012 FROM CHASSIS 094513 ALSO INSTALLED ON,SEE FOOTNOTE 31

281

GROMMET

287

LEVER

287

HANDLE

293

PIN ENGINE HOOD RELEASE CABLE TO ENGINE HOOD CATCH LOWER PART

298

CLIP CABLE HARNESS TO ROOF RAIL

304

SUPPORT LEFT

309

SCREW HINGE LEVER TO SUPPORT UPPER PART, ONLY FOR REPAIR PURPOSES,IN PLACE OF SERIES EQPUIPMENT CLINCH-BOLT

313

WASHER HINGE LEVER TO SUPPORT UPPER PART

319

SPRING HOOD SUPPORT, 010 FROM CHASSIS 012612 ALSO INSTALLED ON,SEE FOOTNOTE 29,012 FROM CHASSIS 025533 ALSO INSTALLED ON,SEE FOOTNOTE 30

324

STRUT

329

SAFETY HOOK , UP TO CHASSIS: 010 077936

334

RUBBER BUFFER

339

SEAL 1240 MM

344

RADIATOR GRILLE SHELL , FROM CHASSIS: 108.012 072017 108.014 055073, ALSO INSTALLED ON: 054680,054681,054721,054723,054728,054730,054747,054749,054751,054753-054755,054760,054797,054806- 054808,054810,054812-054816,054830,054832,054878,054880,054882-054886. 108.016 000052 FROM CHASSIS:108.018 000046 108.019,067,068 000001 109.016 000031 109.018,056,057 000001

350

REPAIR KIT WITH MERCEDES STAR 110 888 01 15, FROM CHASSIS: 111.024,025 000138 UP TO CHASSIS: 111.024,025 003544, EXCEPT FOR: 003479,003498,003515-003519,003521,003522,003524,003530,003532-003534,003536-003543.

355

ESCUTCHEON

361

SPRING , Replaced By: A1085860088

364

SLEEVE , Replaced By: A1085860088

369

HOOK , Replaced By: A1085860088

371

REPAIR KIT , UP TO CHASSIS: 111.024,025 003544, EXCEPT FOR: 003479,003498,003515-003519,003521,003522,003524,003530,003532-003534,003536-003543.

373

LOCK

378

MERCEDES BADGE

383

RADIATOR GRILLE

414

CLIP , Replaced By: A0029888578

419

LOCK GROMMET TO CAB,4 940046

426

SEAL

432

WASHER

440

RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.

999

LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE

999

LOCK WASHER CLAMP TO BRACKET AND TO PIPE

999

LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER

999

SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER

999

NUT

999

SCREW BRACKET TO CROSS CONNECTION STRUT

999

SCREW PIPE CLAMP

999

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

999

SCREW LICENSE PLATE TO BRACKET

999

SCREW PUMP TO BRACKET

999

WASHER BRACKET TO COVERING

999

WASHER , Replaced By: N009021010209

999

WASHER COMPRESSED AIR LINE TO BRACKET

999

WASHER , Replaced By: N009021006208

999

WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.

999

WASHER , Replaced By: N009021005205

999

SCREW

999

SCREW

999

SCREW ELECTRIC CABLE TO FUSE BOX

999

SHEET METAL SCREW FRONT FENDER TO FRONT STIFFENING

999

SHEET METAL SCREW CONTROL UNIT TO CAB B 5.5X19

999

SHEET METAL SCREW HOSE TO FIRE WALL

999

SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22

999

SHEET METAL SCREW6.3X16

999

SHEET METAL SCREW BRACKET TO WINDOW SILL

999

SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083

999

SHEET METAL SCREW

999

SHEET METAL SCREW

999

TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733

999

NUT , Replaced By: N304032008006

999

NUT BALL PIVOT TO LEVER

999

NUT TACHOGRAPH TO BRACKET

999

NUT BOOT TO AIR DUCT AND TO AIR CLEANER

999

SCREW END PIECE TO EXHAUST PIPE M 10X25

999

SCREW , Replaced By: N304017008034

999

SCREW , Replaced By: N304017008021

999

SCREW , Replaced By: N304017008016

999

SCREW COVER PLATE TO BRACKET

999

SCREW , Replaced By: N304017006020

999

SCREW COVER PLATE TO BRACKET

999

WASHER BOOT TO CAB FLOOR

999

SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER

999

SPRING WASHER , Replaced By: N000137008212

999

LOCK WASHER TAIL LAMP TO BRACKET

999

WASHER RADIATOR TO RUBBER MOUNTING

999

WASHER , Replaced By: N000125010532

999

WASHER EXHAUST MUFFLER TO STRAP

999

WASHER , Replaced By: N000125008443

999

WASHER , Replaced By: N000433005304

999

WASHER BRACKET TO SUPPORT

999

WASHER , Replaced By: N000125004319

999

SCREW

999

SCREW , FROM CHASSIS: 000,002,010 037518 015 035157 100,102,103,110,112 085746 115 039046 UP TO CHASSIS: 015 200000 110 400000 115 200000

999

REPAIR KIT , Replaced By: A1118800097

999

GARNISH MOULDING TRANSVERSE

999

SEAL RING

999

WASHER , Replaced By: N000125008417

999

GARNISH MOULDING , Replaced By: A1118885385

999

GARNISH MOULDING , Replaced By: A1168880185

999

SPRING , UP TO CHASSIS: 007,008,015,017 257476 011 110343 060 121219 062 108533

999

SPRING , Replaced By: A1158880334

999

LICENSE PLATE MOULDING

999

LICENSE PLATE MOULDING , Replaced By: A1158170378

999

RADIATOR GRILLE SHELL , Replaced By: A1145860288

999

WASHER UPPER PARTS OF BUMPER TO FRONT BUMPERS

999

WASHER

999

SCREW BRACKET TO FENDER,K 104588

999

GARNISH MOULDING , Replaced By: A1168880185

999

GARNISH MOULDING , 024/025 UP TO CHASSIS 003544 EXCEPT FOR 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003543

999

SEAL , 010 UP TO CHASSIS 003573,012 UP TO CHASSIS 007747 DELIVER ADDITIONALLY:1X111 990 00 52,1X111 993 01 25

999

REPAIR KIT FRONT FENDER, 000,001,004,010 FROM CHASSIS 161050,002,003,005,011 FROM CHASSIS 016720,100,101,104,110 FROM CHASSIS 287154

999

RUBBER RING

999

RUBBER RING

999

WASHER

999

SEAL 770 MM ORDER BY THE METER

999

INTERMEDIATE LAYER , Replaced By: A1158810997

999

ENGINE HOOD CATCH , Replaced By: A1158800160

999

ENGINE HOOD CATCH , Replaced By: A1158870006

999

SUPPORT RIGHT

999

RUBBER BUFFER

999

RUBBER RING , Replaced By: A1109870741

999

RUBBER BUFFER

999

RUBBER BUFFER , Replaced By: A1089870240

999

PIN , Replaced By: A1085860088

999

HOOK , Replaced By: A1085860088

999

SLEEVE , Replaced By: A1085860088

999

MERCEDES STAR , Replaced By: A1085860388

999

LEVER RIGHT

999

SEAL , Replaced By: A1158870298

999

RAIL RIGHT

999

BRACKET INSIDE RIGHT

999

REAR BUMPER FACE BAR UPPER PART,RIGHT

999

BRACKET RIGHT

999

FRONT BUMPER FACE BAR UPPER PART,RIGHT

999

PARTITION PANEL RIGHT

999

INTERMEDIATE LAYER , Replaced By: A0039895485

999

REAR BUMPER FACE BAR RIGHT

999

GARNISH MOULDING RIGHT

999

GARNISH MOULDING LEFT

999

GARNISH MOULDING , Replaced By: A1088801282

999

GARNISH MOULDING , Replaced By: A1088801182

999

FRONT BUMPER FACE BAR RIGHT

999

SEAL RIGHT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010466, 019 FROM CHASSIS 010646

999

WELT RIGHT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

999

FRONT FENDER RIGHT

999

SEAL LEFT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010466, 019 FROM CHASSIS 010646

999

SEAL RIGHT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

999

RADIATOR GRILLE SHELL , Replaced By: A1085860188

999

SEAL LEFT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

999

MERCEDES STAR , Replaced By: A1085860088

999

FRONT FENDER , Replaced By: A1115860188

999

BRACKET RIGHT

999

FRONT FENDER , Replaced By: A1115860188

999

REPAIR KIT RADIATOR GRILLE SHELL MOUNTING MATERIAL

999

REPAIR KIT , Replaced By: A1155860288

999

LEVER , Replaced By: A1088870274

999

ADHESIVE TAPE , Replaced By: A0019875646

999

CLIP , 067966

999

CLIP , 007020

999

CLIP LICENSE PLATE LAMP TO BUMPER

999

SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER

999

LOCK

999

WASHER

999

PLATE , Replaced By: A0009902048

999

WASHER

999

FASTENER BUTTON

999

CLIP
