Mercedes A1233270160 - ПРОКЛАДКА

E 320 4MATIC 210.282 FROM MODEL YEAR CODE 800

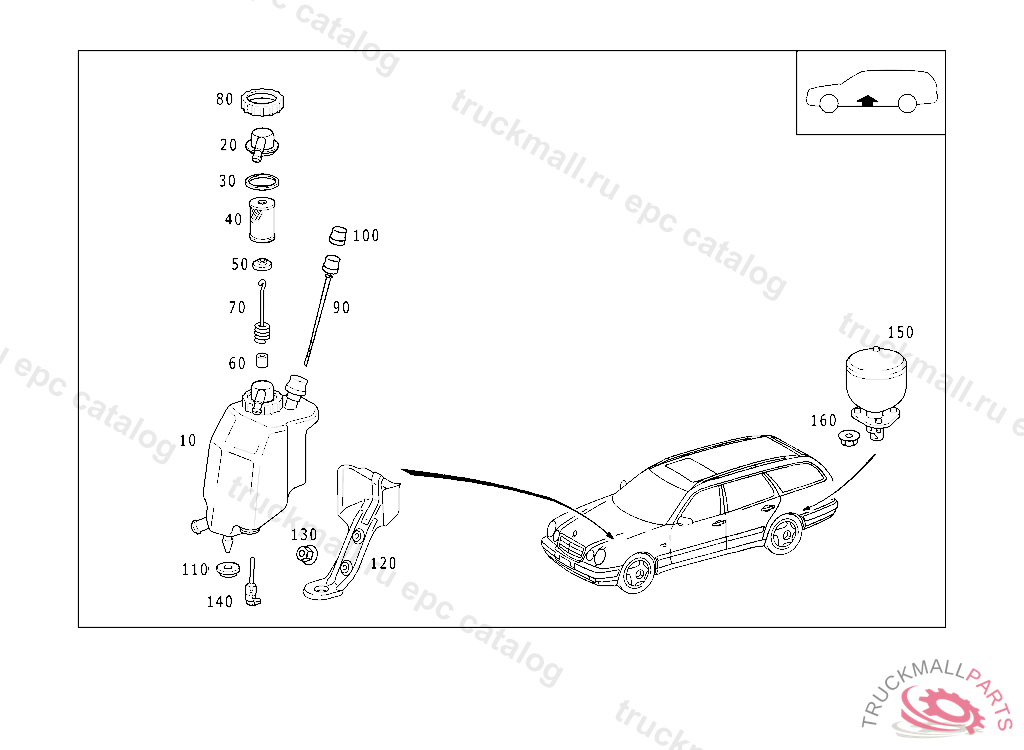

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 220 OIL TANK & VALVES OF SELF-LEVELLING DEVICE HYDRAULIC SYSTEM

Поз.
Артикул
Описание
10
A2103200114
OIL TANK SELF-LEVELLING DEVICE OIL RESERVOIR AND A S D
20
A2103270021
COVER SUPPLY TANK
30
A2103270060
SEAL RING
40
A0021845501
OIL FILTER
50
A1233270160
SEAL RING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
60
A1403270406
SPACER
70
A1239931101
SPRING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
80
A2103270072
NUT
90
A2103200059
OIL DIPSTICK
100
A1233270059
PROTECTIVE CAP
110
A1299971681
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
120
A2103271340
BRACKET OIL RESERVOIR TO LEFT FRONT WHEELHOUSE PANEL
130
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
140
A1295450224
SWITCH,AUTOMATIC EXPANSION TANK, A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
150
A1403280515
AIR RESERVOIR (SPRING LOAD ACCUMULATOR)
160
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
