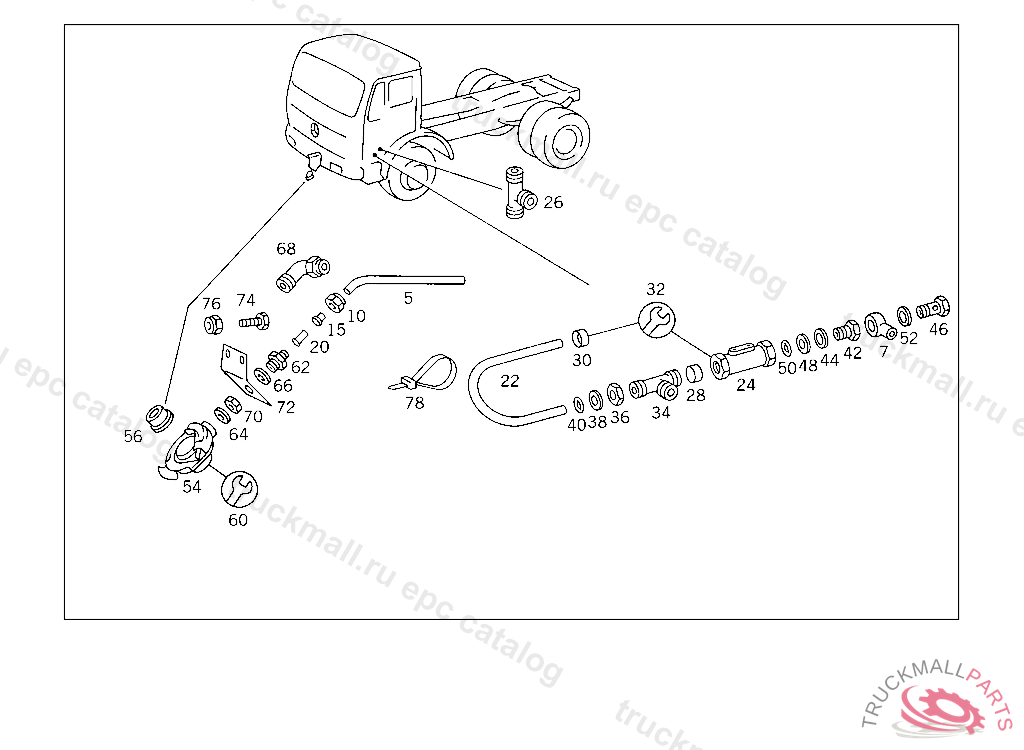

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
7
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
10
UNION NUT LINE CONNECTION
10
UNION NUT , Replaced By: N915017008100
15
GLAND LINE CONNECTION
20
SLEEVE LINE CONNECTION
20
SLEEVE , Replaced By: N915062006000
22
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
24
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
24
VALVE (CHECK VALVE)
26
VALVE , Replaced By: A0034296444
26
VALVE (CHECK VALVE),5 029362
28
VALVE SEAT RINGWABCO,5 433388
30
BUSHINGWABCO,5 433388
32
REPAIR KITWABCO
34
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
34
T-FITTING , Replaced By: N074317000100
36
NUT CHECK VALVE TO AIR RESERVOIR
38
THRUST RING CHECK VALVE TO AIR RESERVOIR
38
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
40
O-RING CHECK VALVE TO AIR RESERVOIR
42
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
44
SEAL RING LINE CONNECTION
46
HOLLOW SCREW FUEL LINE TO FEED PUMP
46
HOLLOW SCREW HEATING CONNECTION
46
HOLLOW SCREW , Replaced By: N915036010108
48
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
48
THRUST RING CHECK VALVE TO AIR RESERVOIR
50
O-RING CHECK VALVE TO AIR RESERVOIR
52
SEAL RING FUEL LINE TO FEED PUMP
52
SEAL RING LINE CONNECTION
52
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
54
BRAKE LINE COUPLING SUPPLY "WABCO"
54
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
54
BRAKE LINE COUPLING , Replaced By: A0004299630
54
BRAKE LINE COUPLING , Replaced By: A0004298030
54
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
54
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
54
BRAKE LINE COUPLING SUPPLY "KNORR"
56
SEAL RING"GRAU"
56
SEAL RING"WABCO"
56
SEAL RING30X2 MM,BOSCH
56
SEAL RING25X2 MM,BOSCH
60
REPAIR KIT"KNORR"
60
REPAIR KIT BRAKE LINE COUPLING "WABCO"
60
REPAIR KIT BRAKE LINE COUPLING "KNORR"
62
FITTING BRAKE LINE COUPLING,"SUPPLY"
64
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
66
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
68
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
70
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
72
BRACKET LEFT
74
SCREW , Replaced By: N304017008034
76
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
76
NUT , Replaced By: N913004008001
78
LOOM TIE LINE MOUNTING
999
VALVE TAPPET22X4 MM,BOSCH
999
BANJO UNION , Replaced By: N915052006013
999
DISTRIBUTOR AIR RESERVOIR
999
SEAL RING , Replaced By: A0049978240, +001A0004290483
999
SEAL RING22X4 MM,BOSCH
999
SEAL RING33X2.5 MM,BOSCH
