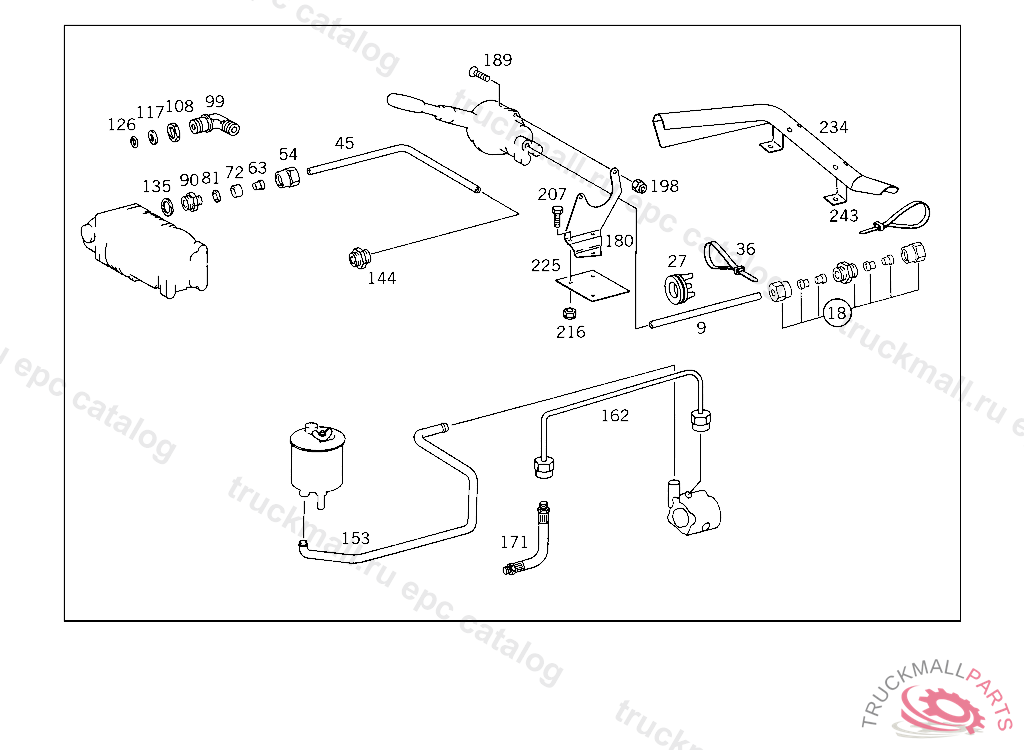

Поз.
Артикул
Описание
9
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
18
FITTING (PARTS KIT),LINE RUPTURE
18
FITTING , Replaced By: A0029905971
27
GROMMET
36
LOOM TIE LINE MOUNTING
45
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
54
UNION NUT BUTT SCREW CONNECTION
63
GLAND LINE CONNECTION
72
THRUST RING BUTT SCREW CONNECTION
81
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
81
SEAL RING , Replaced By: N007603012121
90
FITTING CONNECTION "2"
99
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
108
NUT SUCTION LINE TO OIL PUMP
117
THRUST RING SUCTION LINE TO OIL PUMP
126
SEAL RING LINE CONNECTION
135
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
144
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
153
LINE HOSE,CONNECTOR,STEERING
162
LINE HIGH PRESSURE HOSE,CONNECTOR,STEERING
171
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
171
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
171
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
180
BRACKET HAND BRAKE VALVE
189
SCREW ACCELERATOR PEDAL TO CAB M 6X20
198
NUT PUMP TO BRACKET
198
NUT , Replaced By: N913004006001
207
SCREW , Replaced By: N304017006020
207
SCREW LICENSE PLATE TO BRACKET
216
NUT PUMP TO BRACKET
216
NUT , Replaced By: N913004006001
225
PLATE BRACKET TO CAB FLOOR
234
PROTECTIVE PLATE COMPRESSED AIR LINE COVERING IN CAB
243
LOOM TIE LINE MOUNTING
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW CLAMP TO BRACKET
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW , Replaced By: N308676014020
999
SCREW , Replaced By: N304017008034
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET COMPRESSED AIR LINES
999
BRACKET BATTERY CABLE MOUNTING,5 193595
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 227952
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 227952
999
CLAMP , Replaced By: A6739950001
999
ANGLE LINE MOUNTING
999
HOSE , Replaced By: A0019972752
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING , Replaced By: N915045012100
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
