Mercedes N304017006016 - Винт M 6 X 16 8.8

1213 AKO 381.160

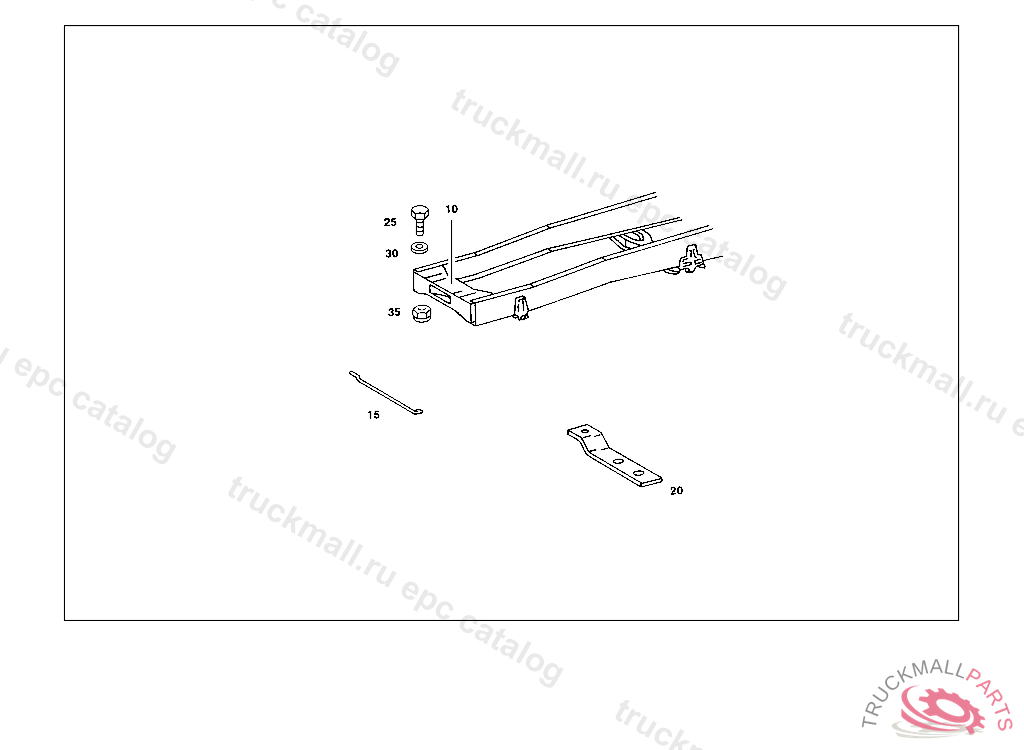

31 FRAME - 001 H.D. COUPLING MOUTH (FOR MODELS 625.1, 650-659, SEE STANDARD MICROFICHE)

Поз.
Артикул
Описание
10
A6523100322
CROSS MEMBER WITH COUPLING MOUTH
10
A6253100322
CROSS MEMBER WITH COUPLING MOUTH
10
A3873100522
CROSS MEMBER WITH COUPLING MOUTH
10
A6243100022
CROSS MEMBER WITH COUPLING MOUTH
15
A3873150031
LOCKING SPRING COUPLING MOUTH
20
A3878910398
SHIM FRAME
20
A3878910196
BASE , Replaced By: A3878910498
20
A3878910498
SHIM MOUNTING TO CONSOLE
25
N000933008152
SCREW , Replaced By: N304017008027
25
N304017008027
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
25
N000961012179
SCREW BRACKET TO SIDE MEMBER M 12X38
30
N000125013008
WASHER
35
N910113012002
NUT SUPPORT TO SIDE MEMBER
999
A3818851711
PLATE REAR CROSS MEMBER
999
A3873100422
CROSS MEMBER FRONT
999
A3873150106
COUPLING PIN FOR COUPLING MOUTH
999
A6523100022
CROSS MEMBER FRONT
999
A6523100222
CROSS MEMBER FRONT
999
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
999
N000933006183
SCREW , Replaced By: N304017006016
999
N304017006016
SCREW PUMP TO BRACKET
