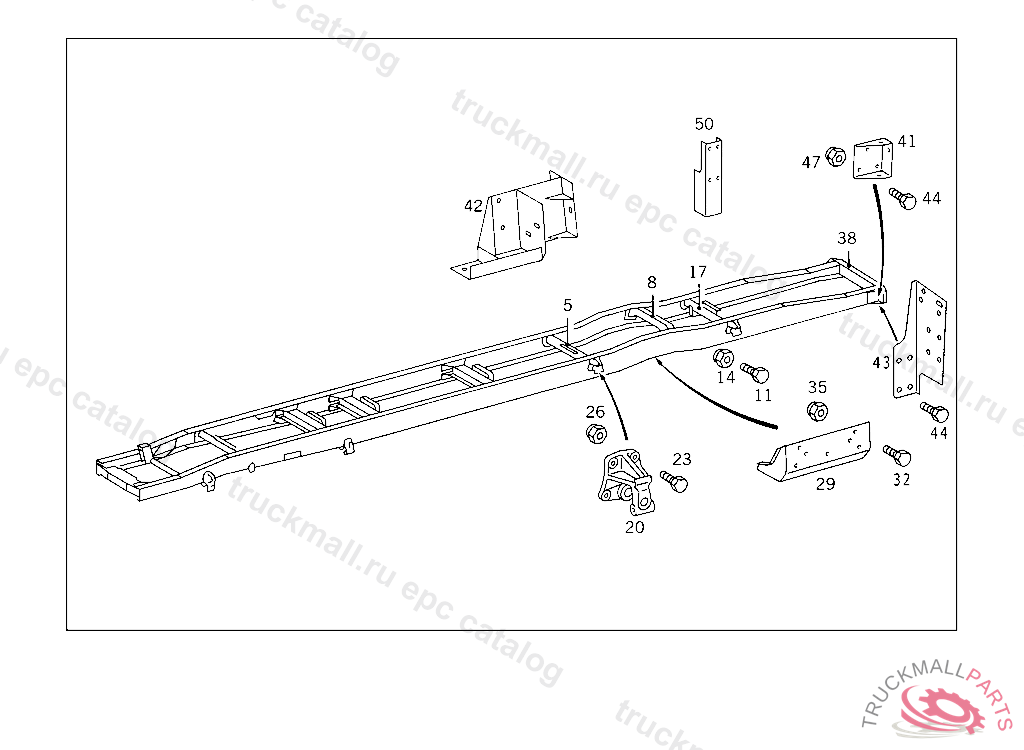

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING FRONT BRACKET NO.7
8
CROSS MEMBERNO.8
11
SCREW BRACKET TO SIDE MEMBER M10X30
14
NUT BRACKET TO SIDE MEMBER,XB209706
17
CROSS MEMBER REAR-SPRING REAR BRACKET NO. 9,D 100407D 246359
20
REAR SPRING BRACKET FRONT AND REAR
23
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
26
NUT , Replaced By: N910113014000
29
CONSOLE REAR RUBBER MOUNTING
29
CONSOLE , Replaced By: A3763110163
32
SCREW CONSOLE TO SIDE MEMBER
35
NUT SUPPORT TO SIDE MEMBER
38
CROSS MEMBER (REAR CROSS MEMBER) NO.11
41
CONSOLE (ENGINE CROSS MEMBER),REAR
41
CONSOLE (ENGINE CROSS MEMBER),REAR
44
SCREW BRACKET TO LEFT SIDE MEMBER
47
NUT SUPPORT TO SIDE MEMBER
