Поз.
Артикул
Описание
5

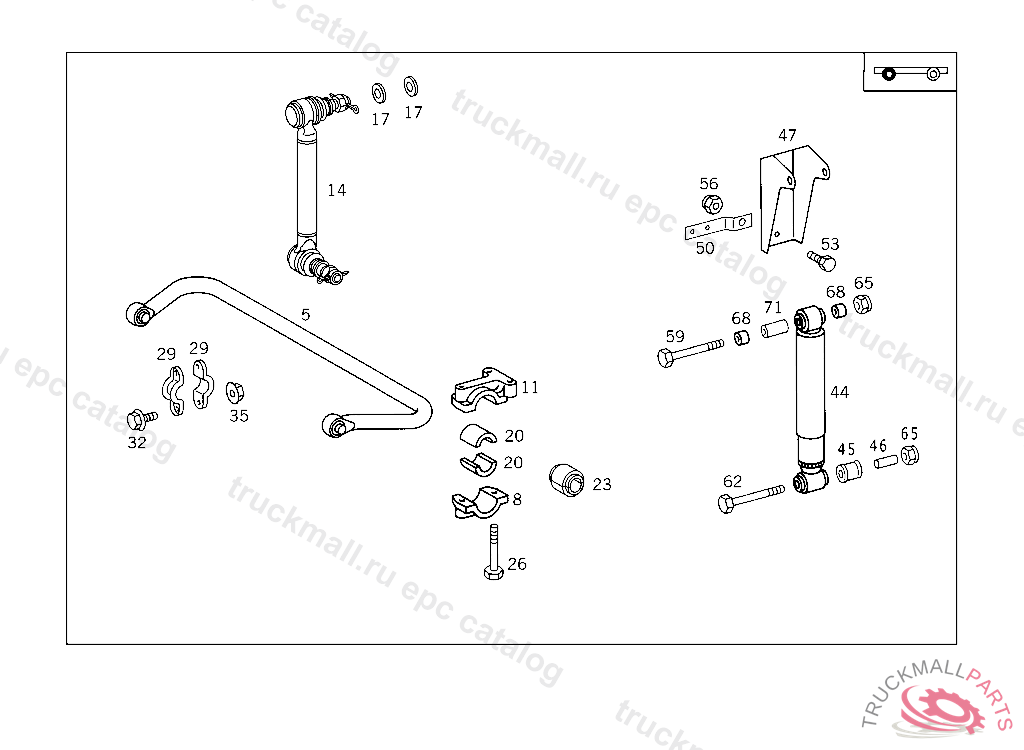

TORSION BAR FRONT AXLE
8
BEARING SHELL TORSION BAR TO BEARING BRACKET,K 054777
11
BEARING BRACKET TORSION BAR,FRONT,K 054777
14
LINK , Replaced By: A3823238016
14
LINK , Replaced By: A3823237916
14
LINK LEFT,D 209974
14
LINK RIGHT,D 209975
14
LINK , Replaced By: A3823230316
14
LINK LEFT,D 209975
17
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
23
RUBBER MOUNTING TORSION BAR,FRONT,K 054777
26
SCREW ENGINE TO ENGINE FRONT SUPPORT
29
BRACKET STABILIZER TO FRONT AXLE
32
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
35
NUT BRACKET TO SIDE MEMBER M12X1.5
44
SHOCK ABSORBER , Replaced By: A3823237300
44
SHOCK ABSORBER ,D 188805
44
SHOCK ABSORBER ,D 188804
45
RUBBER MOUNTING
46
BUSHING
47
SUPPORT LEFT
47
SUPPORT RIGHT
50
BRACKET BREATHER LINE TO REAR AXLE
53
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
56
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
59
SCREW SHOCK ABSORBER TO UPPER BEARING BRACKET,D 204382
62
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X95 MM
65
NUT , Replaced By: N910113016001
68
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET,D 204382
71
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET
