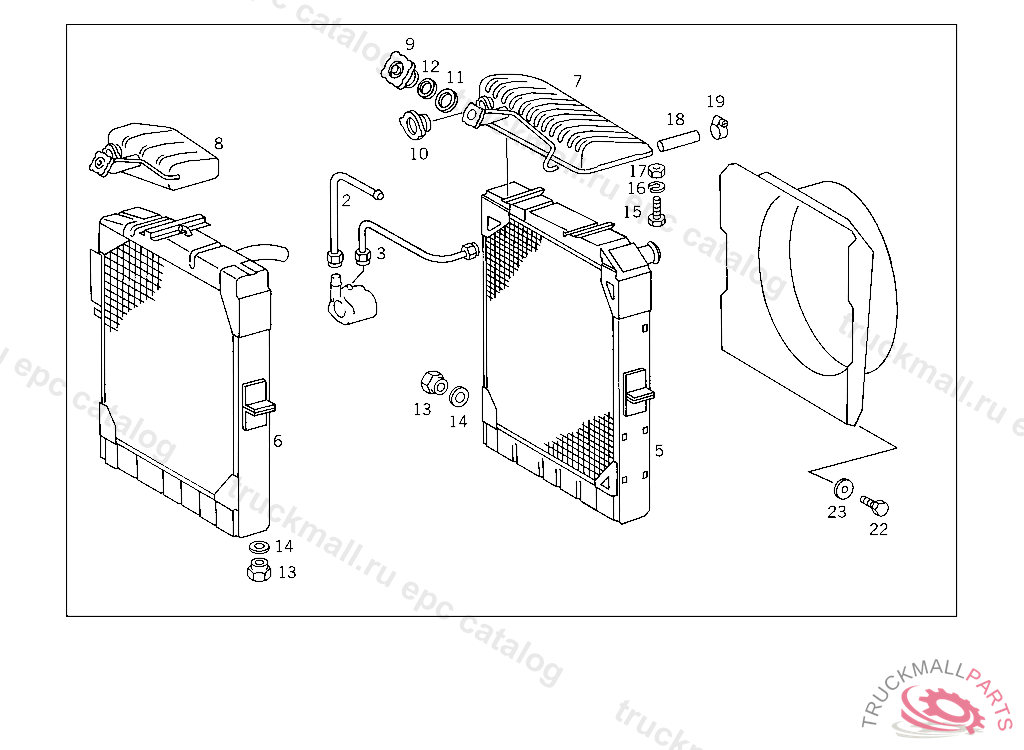

Поз.
Артикул
Описание
2
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP 22X1,5 MM,5 360280
3
TUBE FROM HIGH PRESSURE HOSE TO STEERING
3
LINE , Replaced By: A0005516156
5
RADIATORBEHR
6
RADIATORBEHR
7
TANK EXPANSION TANK
8
TANK COOLING WATER EXPANSION
9
RADIATOR CAP FILLER NECK
9
RADIATOR CAP FILLER NECK
10
RADIATOR CAP CENTRAL
10
RADIATOR CAP CENTRAL
11
GASKET O.D., 52 MM
12
GASKET O.D., 37 MM
13
SCREW PLUG WATER DRAIN
14
SEAL RING FUEL LINE TO FEED PUMP
15
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
15
SCREW , Replaced By: N304017008016
16
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER , Replaced By: N000125008443
18
HOSE OVERFLOW, EXPANSION TANK
19
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
19
CLAMP , Replaced By: N916017011001
22
SCREW COVER PLATE TO COVER PLATE M 6 X 12
22
SCREW , Replaced By: N304017006018
23
WASHER , Replaced By: N009021006208
23
WASHER COMPRESSED AIR LINE TO BRACKET
999
BOOT FAN SHROUD TO FAN RING
999
FLANGE HEATING AND VENTILATION
999
FAN SHROUD RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
999
RUBBER MOUNTING RADIATOR
999
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR MOUNTING,4 428845
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
CLAMP
999
RADIATOR , Replaced By: A0015010901
999
RADIATOR WATER BEHR
