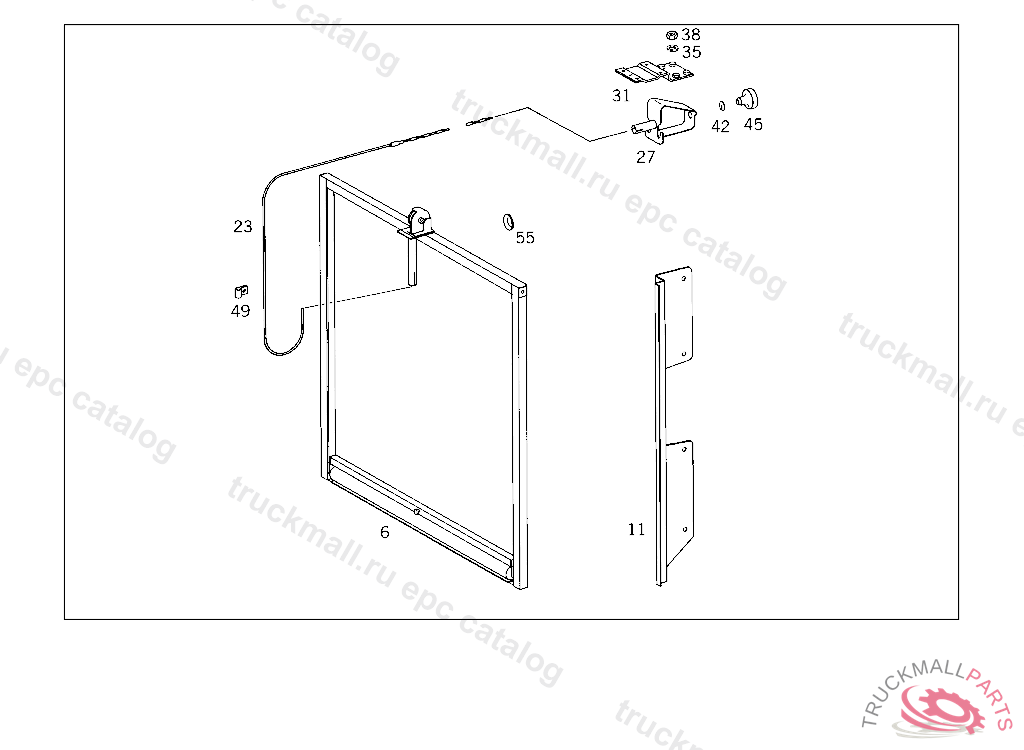

Поз.
Артикул
Описание
6
RADIATOR SHUTTER
11
MOUNTING PLATE LEFT
23
CABLE PULL
27
BRACKET
31
BRACKET
35
LOCK WASHER BRACKET TO STEERING COLUMN END
38
SCREW
42
WASHER
45
KNOB
49
CLAMP
55
CAP
999
CLAMP
999
BRACKET WIRE CABLE TO FIRE WALL, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET , Replaced By: A3833020840
999
MOUNTING PLATE RIGHT
999
FLEXIBLE METAL TUBE
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW STEERING COLUMN PANELLING M 5X12
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PIPE CLAMP
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
NUT TWO-WAY VALVE TO BRACKET,4 719029
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
