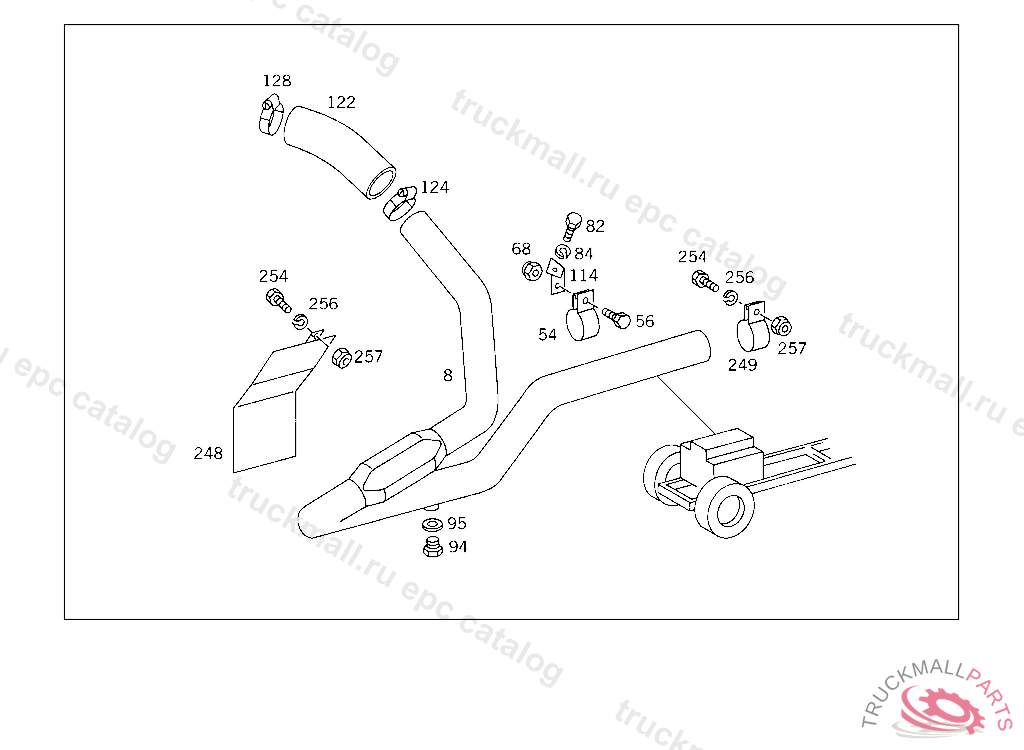

Поз.
Артикул
Описание
8
LINE RETURN
8
LINE RETURN
8
COOLING WATER PIPE RETURN
8
COOLING WATER PIPE RETURN
8
COOLING WATER PIPE RETURN
8
LINE RETURN
8
COOLING WATER PIPE RETURN
8
LINE RETURN
8
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 250518, Replaced By: A6175002672
8
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 341157, Replaced By: A6175003272
54
CLAMP LINE MOUNTING
54
CLAMP , Replaced By: N000000001641
54
CLAMP , Replaced By: A9424310043
56
SCREW , Replaced By: A0099900101
56
SCREW , Replaced By: N000933008337
56
SCREW , Replaced By: N304017016011
56
SCREW , Replaced By: N304017008034
56
SCREWM 16X25
56
SCREW BRACKET TO INTAKE MANIFOLD
56
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
68
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
NUT , Replaced By: N913004008001
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
82
SCREW , Replaced By: N304017008021
82
SCREW PIPE CLAMP
84
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
94
SCREW PLUG WATER DRAIN
95
SEAL RING FUEL LINE TO FEED PUMP
114
BRACKET RETURN
114
BRACKET FEED
114
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
114
BRACKET , Replaced By: A3184923441
122
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
124
CLAMP HOSE FASTENING 50-70X13 MM
124
CLAMP , Replaced By: N000000000672
128
CLAMP HOSE TO RETARDER 60-80X13 MM
128
CLAMP , Replaced By: N000000000673
248
PANELLING (HEAT SHIELD)
248
PANELLING (HEAT SHIELD)
249
CLAMP LINE MOUNTING
249
CLAMP , Replaced By: A9424310043
249
CLAMP , Replaced By: N000000001641
254
SCREW , Replaced By: N304017008021
254
SCREW , Replaced By: N304017008034
254
SCREW PIPE CLAMP
256
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
257
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
257
NUT , Replaced By: N913004008001
257
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
PIPE LINE
999
PIPE LINE , Replaced By: A3015010009
999
BRACKET
999
FLANGE HEATING AND BREATHING, 415 5 014668 416 5 000515 417 4 972023
999
FLANGE AT ENGINE, WITH 387.134 ON VEHICLES HAVING NO MERCEDES BENZ CAB UP TO CHASSIS 4 367398
999
FLANGE ENGINE BREATHING
999
HOSE
999
FLANGE HEATING AND VENTILATION
999
FLANGE ENGINE BREATHING
999
FLANGE DE-AERATION,5 301948
999
BRACKET LINES TO ENGINE
999
FLANGE DE-AERATION,5 301948
999
FLANGE FROM ENGINE TO EXPANSION TANK
999
FLANGE DE-AERATION,5 301948
999
BREATHER PIPE ENGINE BREATHING
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
