Поз.
Артикул
Описание

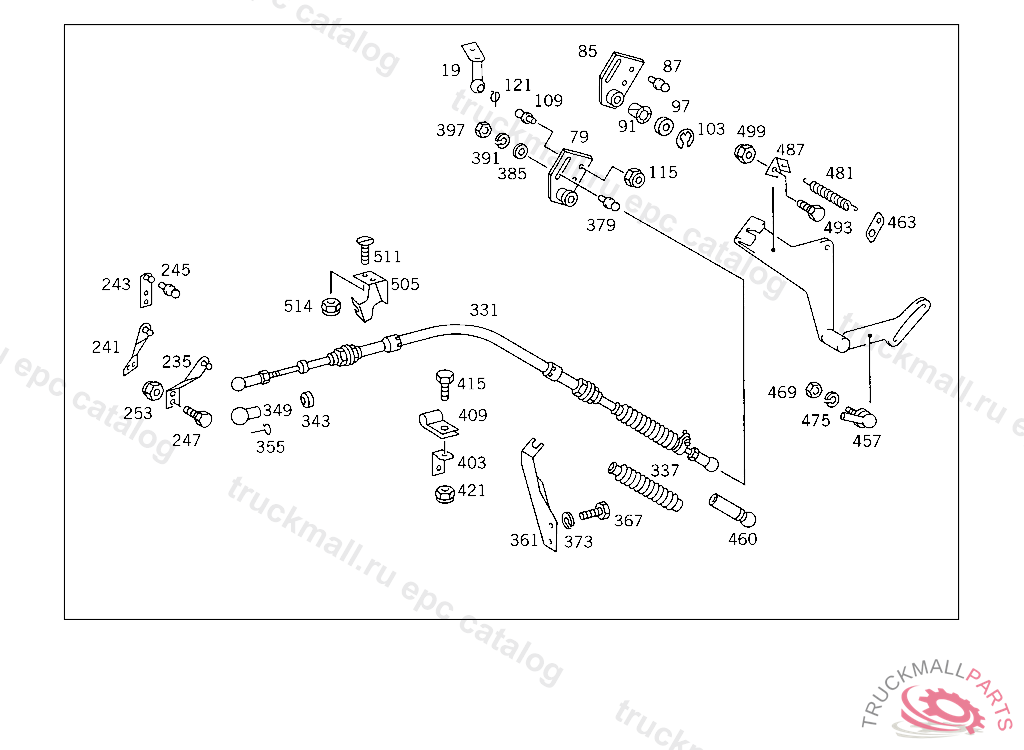

19
BRACKET MODULATOR
19
BRACKET MODULATOR
79
LEVER MODULATOR
85
LEVER MODULATOR
85
LEVER REAR CONTROL LEVER
87
BALL PIVOT
91
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
97
COVERING
97
COVERING INTERMEDIATE BEARING
103
LOCK PLATE INTERMEDIATE BEARING
109
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
109
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
115
NUT , Replaced By: N913004006001
115
NUT PUMP TO BRACKET
121
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
235
LEVER (CONTROL LEVER)
241
LEVER WIRE CABLE TO ENGINE CONTROL LEVER
243
LEVER (CONTROL LEVER)
245
BALL PIVOT LEVER
245
BALL PIVOT , Replaced By: A3129910120
247
SCREW BRACKET ON LOAD SENSOR
253
NUT PUMP TO BRACKET
253
NUT , Replaced By: N913004006001
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
331
WIRE CABLE MODULATOR CABLE TO ENGINE
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
331
WIRE CABLE FROM ENGINE TO TRANSMISSION
337
BOOT I.D., 8/13 MM
337
BOOT I.D., 4/8 MM
343
GROMMET
349
BALL SOCKET WIRE CABLE TO TRANSMISSION,5 264279
349
BALL SOCKET PULL ROD TO LEVER
355
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
361
BRACKET WIRE CABLE
367
SCREW BEARING BRACKET TO FRAME
367
SCREW , Replaced By: N000961012051
373
LOCK WASHER FITTING TO BRACKET
379
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
379
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
385
WASHER COMPRESSED AIR LINE TO BRACKET
385
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
391
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
397
NUT BALL PIVOT TO LEVER
403
ANGLE WIRE CABLE TO ENGINE
409
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
415
SCREW PUMP TO BRACKET
415
SCREW , Replaced By: N304017006016
421
NUT , Replaced By: N913004006001
421
NUT PUMP TO BRACKET
457
JOINT WIRE CABLE TO TRANSMISSION,5 264278
460
BALL SOCKET WIRE CABLE TO TRANSMISSION,5 264279
463
BRACKET MODULATOR
469
NUT BALL PIVOT TO LEVER
475
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
481
SPRING BOWDEN CABLE TO BRACKET
487
BRACKET RELEASE SPRING TO BOWDEN CABLE BRACKET
493
SCREW , Replaced By: N304017008034
499
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
499
NUT , Replaced By: N913004008001
505
BRACKET WIRE CABLE
505
BRACKET WIRE CABLE
511
SCREW LICENSE PLATE TO BRACKET
511
SCREW , Replaced By: N304017006020
514
NUT , Replaced By: N913004006001
514
NUT PUMP TO BRACKET
999
WIRE CABLE MODULATOR TO 000 300 03 62
999
SCREW WIRE CABLE TO TRANSMISSION
999
JOINT , Replaced By: A3009910022, +001A3073010060, +001N071803010102, +001N071805010403
999
BALL SOCKET FROM REVERSING LEVER TO CONTROL LEVER
999
COVERING , Replaced By: A6153010088
999
BRACKET FLYWHEEL HOUSING
999
ROD PULL ROD
999
LEVER , Replaced By: A6153000328
999
WIRE CABLE FROM ENGINE TO TRANSMISSION, NOT USED
999
BRACKET WIRE CABLE, NOT USED
999
LEVER , Replaced By: A6253000128
999
ROD PULL ROD
999
BRACKET WIRE CABLE, NOT USED
999
BRACKET WIRE CABLE, NOT USED
999
BRACKET WIRE CABLE TO ENGINE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
