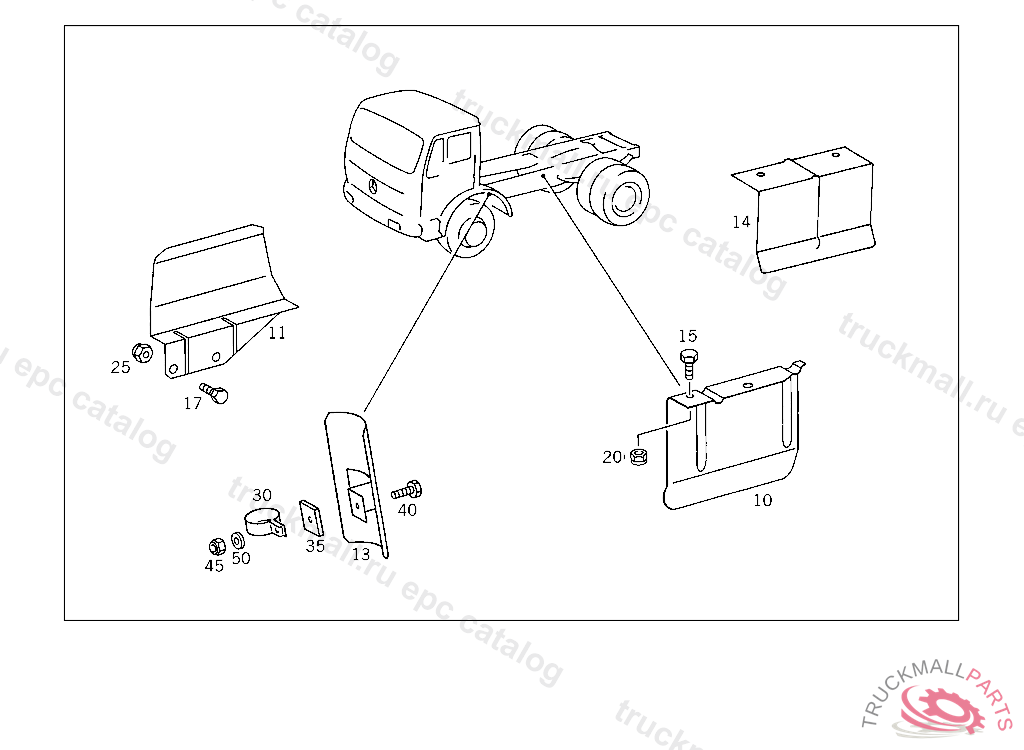

Поз.
Артикул
Описание
10
COVERING TRAILER CONTROL VALVE
10
COVERING TRAILER CONTROL VALVE
11
COVERING FRONT AXLE
11
COVERING FRONT AXLE
13
PROTECTIVE PLATE FUEL TANK
14
PROTECTIVE PLATE TRAILER CONTROL VALVE
15
SCREW BRACKET TO CROSS CONNECTION STRUT
15
SCREW , Replaced By: N304017008034
15
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
17
SCREW BRACKET TO FRAME SIDE MEMBER
20
NUT , Replaced By: N913004008001
20
NUT , Replaced By: N910113010000
20
NUT STRAP TO BRACKET
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
25
NUT END PIECE TO EXHAUST PIPE
30
CLAMP , Replaced By: N071555090502
30
CLAMP , Replaced By: N071555100501
30
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
30
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
35
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
35
INSULATING WASHER. INSULATION , Replaced By: A3094900037
40
SCREW BRACKET TO SIDE MEMBER
40
SCREW , Replaced By: N304017008040
45
NUT , Replaced By: N913004008001
45
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
WASHER EXHAUST MUFFLER TO STRAP
50
WASHER , Replaced By: N000125008443
