Поз.
Артикул
Описание

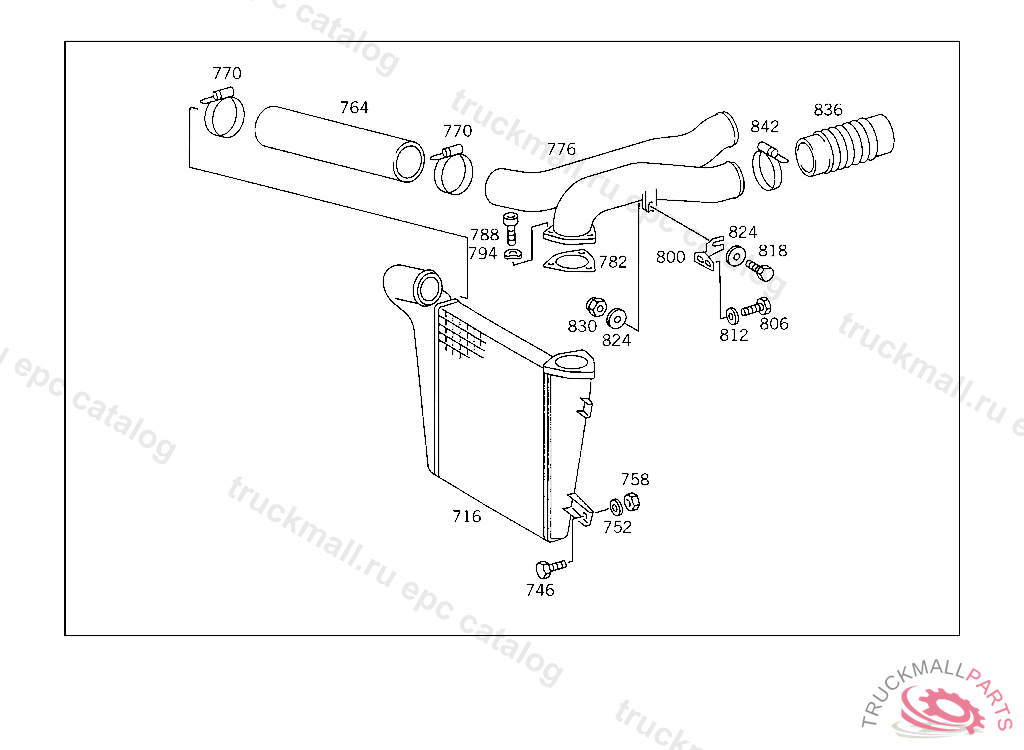

716
RADIATOR (CHARGING AIR INTERCOOLER)
746
SCREW CHARGING AIR INTERCOOLER TO RADIATOR,5 122084
746
SCREW CHARGING AIR INTERCOOLER TO RADIATOR,5 122083
752
WASHER EXHAUST MUFFLER TO STRAP
752
WASHER EXHAUST MUFFLER TO STRAP
752
WASHER , Replaced By: N000125008443
758
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
758
NUT , Replaced By: N913004008001
764
HOSE FROM CHARGING AIR INTERCOOLER TO PIPE ELBOW
764
HOSE , Replaced By: A0020941882
770
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
770
CLAMP , Replaced By: A0059972990
770
CLAMP , Replaced By: N000000000675
776
PIPE ELBOW CHARGE AIR INTERCOOLER
776
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE,5 195018
782
GASKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
782
GASKET , Replaced By: A6175280380
788
SCREW. CAP BOLT SEAT MOUNTING M8X35
788
SCREW , Replaced By: N000912008204
794
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
794
SPRING WASHER , Replaced By: N000137008212
800
BRACKET PIPE ELBOW
806
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
806
SCREW , Replaced By: N304017008039
812
WASHER EXHAUST MUFFLER TO STRAP
812
WASHER , Replaced By: N000125008443
818
SCREW BRACKET MOUNTING M6 X 20
818
SCREW BRACKET TO CROSS CONNECTION STRUT
818
SCREW , Replaced By: N304017008034
824
WASHER BRACKET TO LEFT SIDE MEMBER
824
WASHER , Replaced By: N009021008213
830
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
830
NUT , Replaced By: N913004008001
836
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER
836
HOSE , Replaced By: A6845010882
836
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER
836
HOSE , Replaced By: A6845011082
842
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
DRAIN PIPE
