Поз.
Артикул
Описание

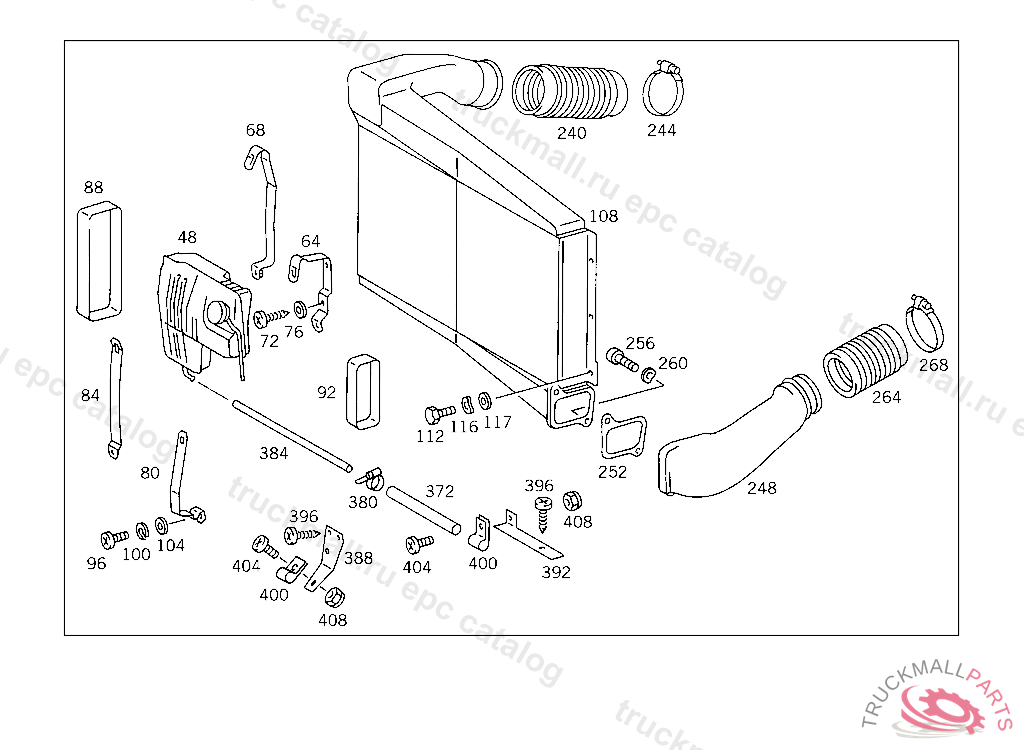

48
TANK CAB,FRONT,5 129373
64
BRACKET EXPANSION TANK,LEFT
68
BRACKET EXPANSION TANK,RIGHT
72
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
76
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
76
WASHER COMPRESSED AIR LINE TO BRACKET
80
STRAP EXPANSION TANK,LEFT
84
STRAP EXPANSION TANK,RIGHT
88
SHIM EXPANSION TANK,LEFT
92
SHIM EXPANSION TANK,RIGHT
96
SCREW CLAMP MOUNTING M 6X16
96
SCREW , Replaced By: N000000001146
100
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
104
WASHER COMPRESSED AIR LINE TO BRACKET
104
WASHER , Replaced By: N009021006208
372
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
372
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
380
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
380
CLAMP , Replaced By: N916017011001
384
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
384
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
388
BRACKET DE-AERATION LINE TO CAB
396
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
400
CLAMP , Replaced By: N916016008200
400
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
400
CLAMP ,K 147121, Replaced By: N000000000319
400
CLAMP , Replaced By: A3604300143
404
SCREW , Replaced By: N000000001146
404
SCREW CLAMP MOUNTING M 6X16
408
NUT , Replaced By: N913004006001
408
NUT PUMP TO BRACKET
999
SCREW , Replaced By: A4609900601
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
RUBBER MOUNTING , Replaced By: A6205040112
999
HOSE , Replaced By: A6555011282
999
HOSE , Replaced By: A6205012882
999
PIPE ELBOW , Replaced By: A6555010756
999
PIPE ELBOW , Replaced By: A6205010556
999
CONNECTOR , Replaced By: A6205010423
999
PIPE ELBOW AT WATER PUMP,5 193594
999
CONNECTOR , Replaced By: A6205010323
999
LINE , Replaced By: A6205003072
999
LINE , Replaced By: A6205002872
999
GASKET , Replaced By: A4422010480
999
HOSE
999
HOSE , Replaced By: A0139978682
999
HOSE , Replaced By: A0219977682
999
SCREW PLUG , Replaced By: N007604014101
999
CLAMP , Replaced By: N916017011000
