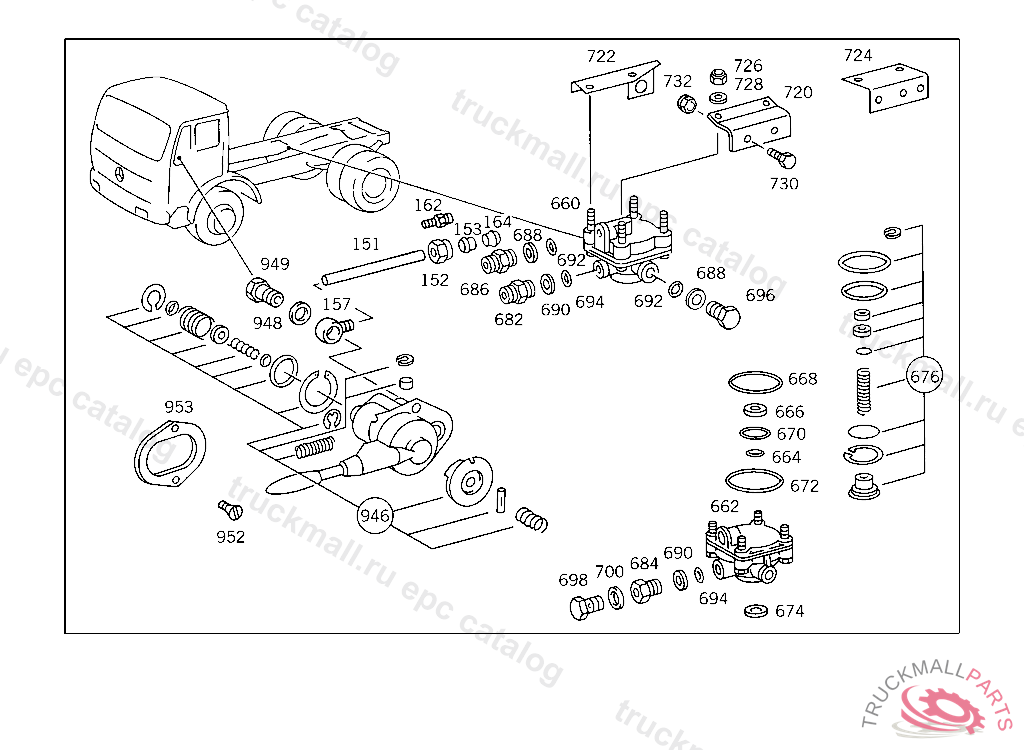

Поз.
Артикул
Описание
151
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
151
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
151
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
151
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
151
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
152
UNION NUT LINE CONNECTION
153
GLAND LINE CONNECTION
157
BANJO UNION HEATING CONNECTION,K 169122
162
FITTING
162
FITTING , Replaced By: N915059006000
164
SLEEVE LINE CONNECTION
164
SLEEVE , Replaced By: N915062006000
660
VALVE (RELAY VALVE) WABCO
660
VALVE (RELAY VALVE) KNORR
660
VALVE , Replaced By: A0034295344
660
VALVE (RELAY VALVE) BOSCH
662
VALVE (RELAY VALVE) GRAU
664
SEAL RING22.3X2.4 MM,GRAU
666
VALVE SEATGRAU
668
SEAL RINGTO 000 429 28 95,GRAU
670
SEAL RING28X2 MM,GRAU
672
SEAL RING86X2 MM,GRAU
674
GASKET34X2X6 MM,GRAU
676
REPAIR KITWABCO
684
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
688
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
690
THRUST RING CHECK VALVE TO AIR RESERVOIR
690
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
692
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
694
O-RING CHECK VALVE TO AIR RESERVOIR
696
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
698
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
700
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
724
BRACKET RELAY VALVE,5 030110
726
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
726
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
726
NUT , Replaced By: N913004008001
728
WASHER EXHAUST MUFFLER TO STRAP
728
WASHER , Replaced By: N000125008443
730
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
730
SCREW , Replaced By: N308676012011
732
NUT SUPPORT TO SIDE MEMBER
946
REPAIR KITTO 000 430 66 81,000 430 67 81, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
946
REPAIR KIT , Replaced By: A0034303881
946
REPAIR KITTO 000 430 56 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
946
REPAIR KIT , Replaced By: A0004305860
948
SEAL RING FUEL LINE TO FEED PUMP
949
HOLLOW SCREW FUEL LINE TO FEED PUMP
949
HOLLOW SCREW , Replaced By: N915036010108
952
SCREW PEDAL TO CAB FLOOR
952
SCREW ACCELERATOR PEDAL TO CAB M 6X25
953
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVETO 003 429 04 44,WABCO
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
VALVEBOSCH
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
GUIDE , Replaced By: N071752014000
999
CUPTO 007 420 68 18,WABCO
999
CUP , Replaced By: A0004213886
999
SEAL RINGKNORR
999
PROTECTIVE CAPTO 008 420 62 18,KNORR
999
VALVE TAPPETTO 002 429 96 44,VOSS
999
THRUST WASHERTO 003 429 12 44,SCHAEFER
999
SEAL CONETO 003 429 12 44,SCHAEFER
999
FILTER ELEMENTTO 000 429 25 95,BOSCH
999
DIAPHRAGMTO 000 429 25 95,BOSCH
999
SEAL RINGTO 002 429 96 44,VOSS
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT BRAKE POWER REGULATOR BOSCH
999
REPAIR KIT VALVE BOSCH
999
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT , Replaced By: A0024209524, +002A0024209424
999
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT , Replaced By: A0014300460
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT (SERVICE BRAKE VALVE) WABCO
999
BREATHER PIPETO 001 431 83 05,WABCO
999
TEST CONNECTION
999
FILLER RINGTO 001 431 83 05,WABCO
999
DIAPHRAGMTO 007 420 42 18,KNORR
999
DIAPHRAGMBOSCH,K 262627
999
VALVEWABCO
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
PISTONTO 001 431 83 05,WABCO
999
REPAIR KIT , Replaced By: A0004305760
999
SEALING CORDTO 000 429 27 95, WABCO
999
CROSS FITTING AIR RESERVOIRS I AND II,4 821954 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
CONNECTOR REPAIR SIZE
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
HANDLETO WABCO
999
HANDLETO BOSCH
999
HANDLEKNORR
999
PLUG
999
VALVE , Replaced By: A0034291644
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
REPAIR KIT TRISTOP CYLINDER TO 008 420 90 18, BOSCH
999
PROTECTIVE CAPKNORR
999
REPAIR KIT COVERING BOSCH
999
SEAL RING , Replaced By: A0009971548
999
VALVE , Replaced By: A0024310406
999
REPAIR KITTO 001 429 20 44,BOSCH
999
T-FITTING RIGHT SPRING LOAD ACCUMULATOR BRAKE CYLINDER,CONNECTION "1"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
SEAL RINGTO 000 429 25 95,BOSCH
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18, UP TO SCHAEFER CHARACTERISTIC NO.489
999
REPAIR KITKNORR
999
REPAIR KIT , Replaced By: A0004201071
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KITGRAU,5 148812
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
DISTRIBUTOR ,5 181111 10/50 620.111,112,113,162,163, 5 203556 620.015,016,0665 208196 20/60 620.015,016,066,111,112,113,162,1635 297633 620.110
999
ELBOW FITTING ,5 433281
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KITTO 001 430 56 81,001 430 57 81
999
SEAL RING BRAKE HOSE
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
SEAL RINGBOSCH
999
FITTING , Replaced By: A0029906171
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
999
SEAL RINGTO 001 431 43 05
999
SEAL RING , Replaced By: A0049970248
999
SEAL RINGTO 000 429 25 95,BOSCH
999
SEAL RINGTO 000 429 27 95, WABCO
999
CLAMP BRAKE HOSE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET HEAT SHIELD
999
BREATHER PIPE TWO-CIRCUIT BRAKE VALVE BLEEDING
999
BREATHER PIPE AT BRAKE VALVE
999
LOCK BRAKE HOSE TO ANGLE
999
BRACKET , Replaced By: A6164290140
999
BRACKET , NOT USED
999
BRACKET BRAKE POWER REGULATOR,5 0301115 234994
999
CLAMP BRAKE HOSE
999
GROMMET42/36 MM, NOT USED
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
BRACKET BRAKE POWER REGULATOR
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SCREW CLAMP MOUNTING M 6X16
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN STRAP TO SUPPORT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
SCREW , Replaced By: N308676016020
999
SCREW BRACKET TO SUPPORT
999
WASHER STRAP TO SUPPORT
999
CLAMPING SLEEVEKNORR
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SCREW , Replaced By: N000000001146
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
SCREW CONSOLE TO FRAME
999
NUT STRAP TO BRACKET
