Поз.
Артикул
Описание

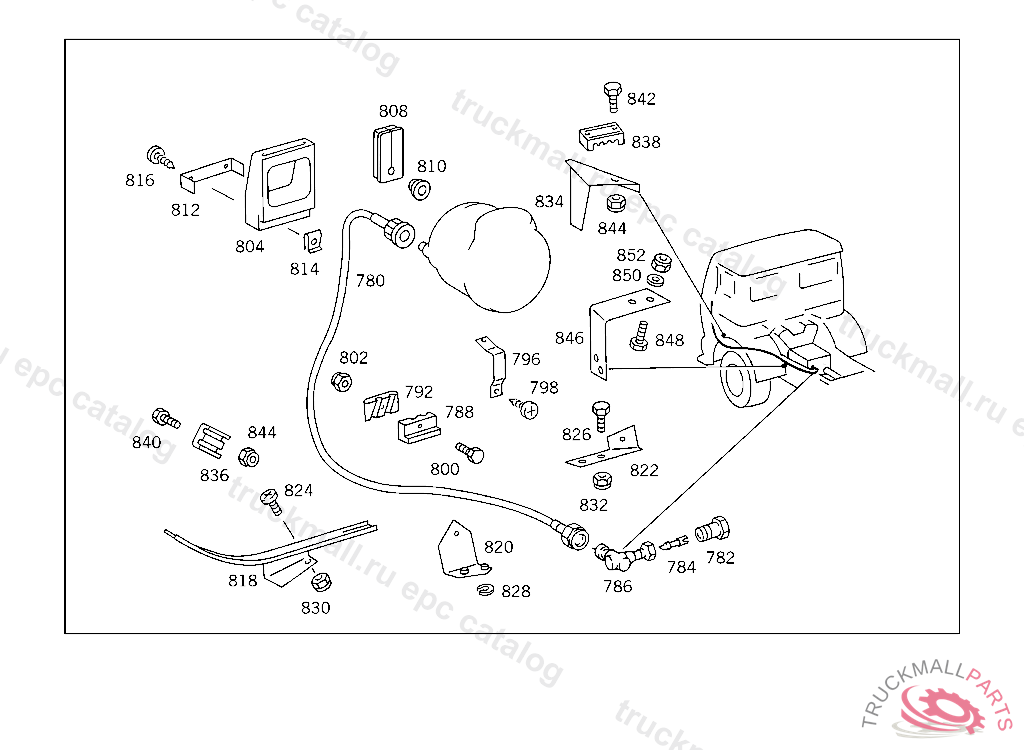

780
FLEXIBLE SHAFT3700 MM
780
FLEXIBLE SHAFT3950 MM,4 855703
782
CONNECTOR ANGLE DRIVE
784
COUPLER ANGLE DRIVE
786
ANGLE DRIVE TACHOGRAPH
788
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
788
CLAMPING PIECE , Replaced By: A6175460344
788
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
792
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL,4 895865
792
CLAMPING PIECE FLEXIBLE SHAFT TO FRAME SIDE MEMBER
796
BRACKET FLEXIBLE SHAFT TO CAB FIRE WALL,4 8958655 011459
798
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
798
SHEET METAL SCREW BRACKET TO FLOOR PLATE
800
SCREW CONNECTOR
802
NUT , Replaced By: N913004006001
802
NUT PUMP TO BRACKET
804
GROMMET ,4 940046 TO BE FILLED UP WITH SEALING MATERIAL TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005421181, +001A6155420140, +001A1139870044, +001A0019975086
804
GROMMET ELECTRIC CABLE THRU FIRE WALL,4 940047 415 5 014668 416 5 000515 417 4 972023
804
GROMMET ,4 940047 TO BE FILLED UP WITH SEALING MATERIAL5 187082, Replaced By: A0005421381, +001A0019975086
804
GROMMET ELECTRIC CABLE THRU FIRE WALL, TO BE FILLED UP WITH SEALING MATERIAL5 187083
808
GROMMET , Replaced By: A0019975086, +001A0005421381
808
PLUG ELECTRIC CABLE THRU FIRE WALL, TO BE FILLED UP WITH SEALING MATERIAL5 187083
810
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
812
BRACKET GROMMET TO CAB,4 940046
812
BRACKET GROMMET TO CAB,4 940047
814
LOCK GROMMET TO CAB,4 940046
816
SHEET METAL SCREW , Replaced By: N000000000878
816
SCREW GROMMET TO CAB
818
BRACKET FLEXIBLE SHAFT TO CAB FIRE WALL
822
BRACKET FLEXIBLE SHAFT TO BUMPER SUPPORT
824
SCREW , Replaced By: N000000001146
824
SCREW CLAMP MOUNTING M 6X16
826
SCREW , Replaced By: N304017008023
826
SCREW CABLE HARNESS MOUNTING
830
NUT , Replaced By: N913004006001
830
NUT PUMP TO BRACKET
832
NUT STRAP TO BRACKET
836
CLAMPING PIECE FLEXIBLE SHAFT TO BUMPER SUPPORT
840
SCREW LICENSE PLATE TO BRACKET
844
NUT PUMP TO BRACKET
999
GROMMET BATTERY CASE
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GROMMET BATTERY CASE
999
LENS
999
TACHOGRAPH
999
SOCKETTO 003 542 46 16,99 16
999
PLUG HOUSING 4-POLE, MODULE "V"
999
DIAGRAM PAPER SET100 PIECES
