Mercedes
TRUCK
1628 S,1633 S,1635 S, 2028 S
620.113

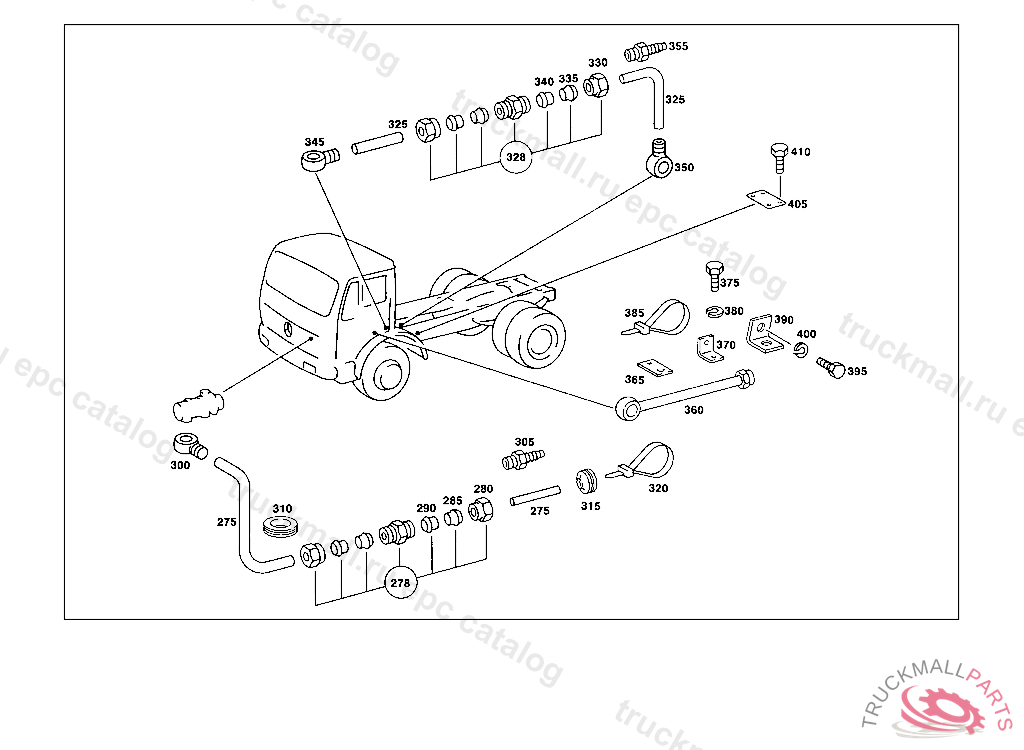

29 PEDAL ASSEMBLY
001 TRANSMISSION GEARSHIFT,TO 5S-110GP,OR 5K-110GP,WITH GV91 ADDITIONAL GEARBOX IL.3

Mercedes N915062006000 - Втулка

1628 S,1633 S,1635 S, 2028 S 620.113

29 PEDAL ASSEMBLY - 001 TRANSMISSION GEARSHIFT,TO 5S-110GP,OR 5K-110GP,WITH GV91 ADDITIONAL GEARBOX IL.3

Поз.
Артикул
Описание
275
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
275
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
275
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
275
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
275
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
275
A0089976082
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
278
A0039979172
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
280
N003870006108
UNION NUT LINE CONNECTIONS
285
N003861006008
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
290
N915062004000
SLEEVE LEAK LINE
290
A0009920105
BUSHING , Replaced By: N915062004000
300
N915052004016
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
305
N915059004001
FITTING LINE CONNECTION TO FIRE WALL,5 726664
305
A0019973572
FITTING , Replaced By: N915059004000
310
A0009973081
GROMMET
315
A1109970481
GROMMET
320
A0019978390
LOOM TIE LINE MOUNTING 280 MM
325
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
325
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
328
A0029905971
FITTING (PARTS KIT),LINE RUPTURE
328
A0039978972
FITTING , Replaced By: A0029905971
330
N915017006100
UNION NUT
335
A0019901667
SEAL CONE
335
N003861006007
GLAND , Replaced By: A0019901667
340
N915062006000
SLEEVE LINE CONNECTION
340
A0009921605
BUSHING , Replaced By: A0007630043
345
N915052006013
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
345
A0009906688
BANJO UNION , Replaced By: N915052006013
350
N915052006022
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
350
A0009907488
BANJO UNION , Replaced By: N915052006003
355
N915059006002
FITTING
355
A0019976772
FITTING , Replaced By: N915059006000
360
A4064207226
LINE FROM CLUTCH TO TRANSMISSION
360
A3094702565
LINE , Replaced By: A4064207226
365
A3874291440
BRACKET LINE MOUNTING
370
A3045460643
BRACKET AT CYLINDER BLOCK, REAR
370
A3604280243
ANGLE LINE MOUNTING
375
N304017008021
SCREW PIPE CLAMP
375
N000933008147
SCREW , Replaced By: N304017008021
380
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
385
A0019978490
LOOM TIE LINE MOUNTING
390
A6454310740
BRACKET FUEL LINE TO BELL HOUSING
390
A6454310740
BRACKET FUEL LINE TO BELL HOUSING
390
A3874760136
BRACKET , Replaced By: A6454310740
395
N304017010027
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
400
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
405
A6203121984
SHIM CROSS MEMBER TO SUPPORT
405
A3873120084
SHIM , Replaced By: A6203121984
410
N308676014020
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
410
N000961014050
SCREW , Replaced By: N308676014020
999
A0002602457
VALVE , Replaced By: A0002608157
999
A0002609557
VALVE , Replaced By: A0012602457
999
A3602600040
HANDLE (GEARSHIFT LEVER KNOB)
999
A3602600140
HANDLE , Replaced By: A3432600040
999
A3872640041
BRACKET SOLENOID VALVE,4 411810
999
A3872640641
BRACKET SOLENOID VALVE,4 411810
999
A3892680097
BOOT SHIFTING LEVER
999
A6202680042
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
A6202680097
BOOT SHIFTING ROD
999
A6202680142
KNOB , Replaced By: A6202600040
999
A6202680157
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
N000960018018
SCREW SHOCK ABSORBER TO RAIL M 18X70
