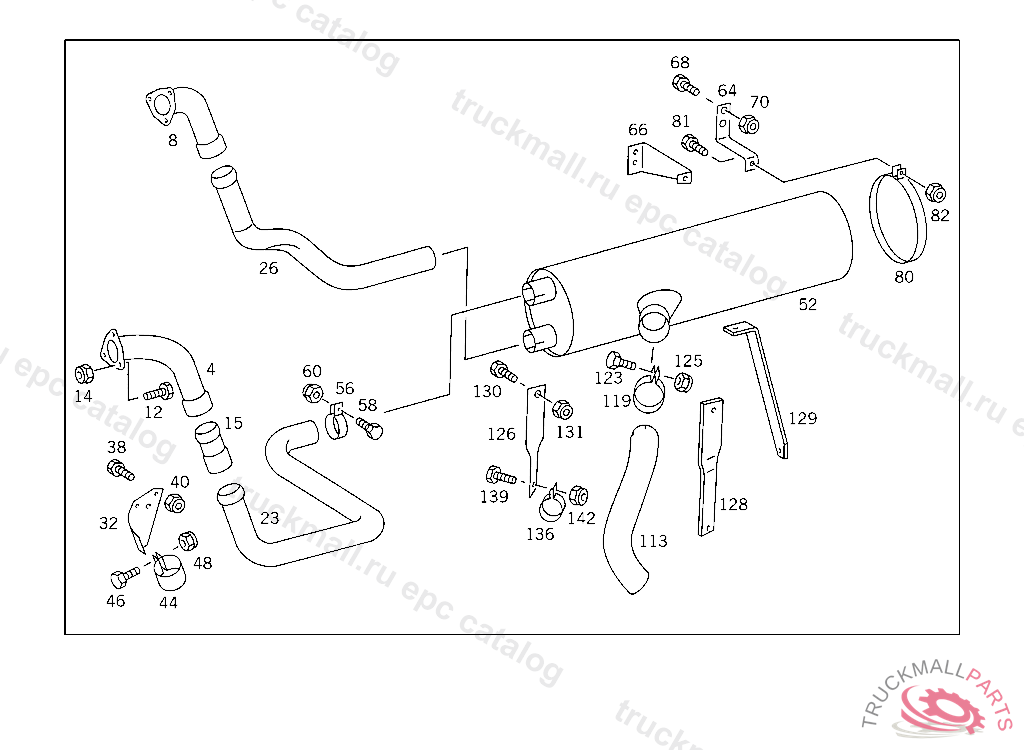

Поз.
Артикул
Описание
4
CONNECTOR LEFT
4
CONNECTOR , Replaced By: A3874902725
8
CONNECTOR RIGHT
8
CONNECTOR , Replaced By: A3874902625
12
SCREW CONNECTOR TO EXHAUST MANIFOLD
14
NUT CONNECTOR TO EXHAUST MANIFOLD
15
CONNECTOR INTERMEDIATE PIECE
23
EXHAUST PIPE FRONT,REAR LEFT PART
26
EXHAUST PIPE FRONT,REAR RIGHT PART
32
BRACKET RIGHT EXHAUST PIPE
32
BRACKET RIGHT EXHAUST PIPE
32
BRACKET LEFT EXHAUST PIPE
32
BRACKET LEFT EXHAUST PIPE
38
SCREW REAR EXHAUST PIPE TO MUFFLER
40
NUT STRAP TO BRACKET
40
NUT , Replaced By: N910113010000
44
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
44
CLAMP FRONT EXHAUST PIPE TO BRACKET,5 129244
46
SCREW BRACKET TO SIDE MEMBER
46
SCREW , Replaced By: N304017010002
46
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
48
NUT STRAP TO BRACKET
48
NUT , Replaced By: N910113010000
48
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
EXHAUST MUFFLER
52
EXHAUST MUFFLER
56
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
58
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
58
SCREW , Replaced By: N304017008027
60
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT , Replaced By: N913004008001
64
BRACKET FRONT AND REAR EXHAUST MUFFLERS
68
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
68
SCREW , Replaced By: N308676012026
70
NUT SUPPORT TO SIDE MEMBER
80
CLAMP EXHAUST MUFFLER TO BRACKET
80
CLAMP , Replaced By: A3874900041
81
SCREW BRACKET TO SIDE MEMBER
81
SCREW , Replaced By: N304017010002
82
NUT STRAP TO BRACKET
82
NUT , Replaced By: N910113010000
113
REAR EXHAUST PIPE ,4 876710
119
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
119
CLAMP , Replaced By: N071555090502
126
BRACKET EXHAUST PIPE SUSPENSION
129
BRACKET REAR EXHAUST PIPE
130
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
130
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
130
SCREW , Replaced By: N308676012026
131
NUT SUPPORT TO SIDE MEMBER
131
NUT SUPPORT TO SIDE MEMBER
136
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
136
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
139
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
142
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
