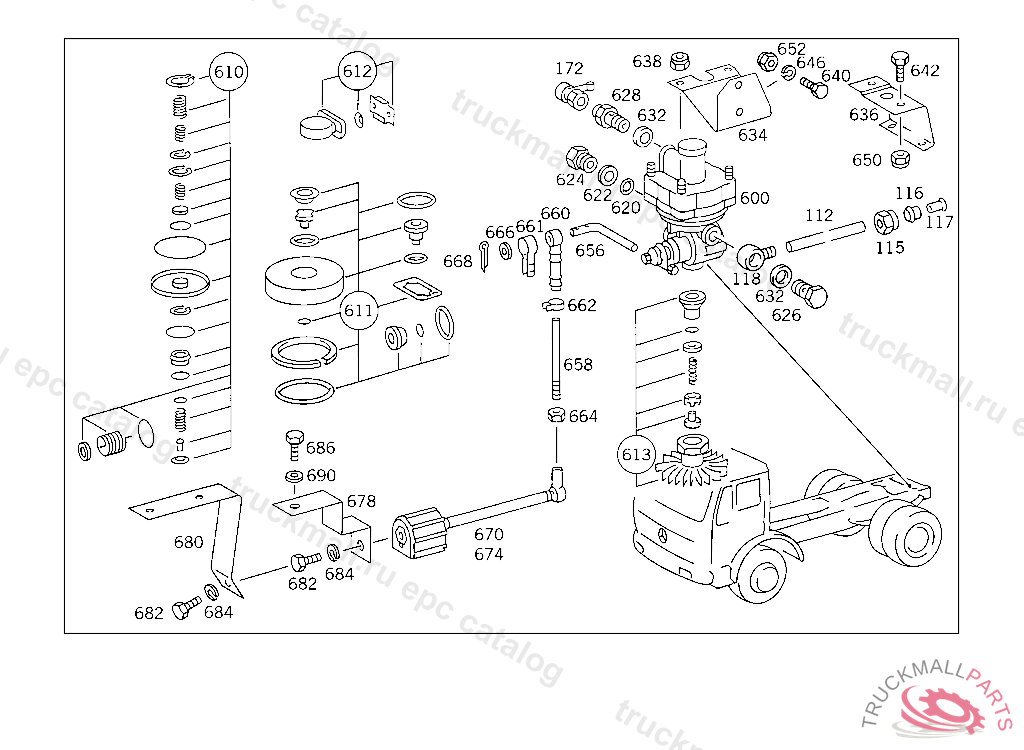

Поз.
Артикул
Описание
112
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
112
HOSE , Replaced By: A0009872827
112
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
112
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
112
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
115
UNION NUT LINE CONNECTION, Replaced By: N000000006239
115
UNION NUT LINE CONNECTION
116
GLAND , Replaced By: A0019901967
116
SEAL CONE LINE CONNECTION
117
SLEEVE LINE CONNECTION
118
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
172
TEST CONNECTION
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
172
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
600
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
600
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH
600
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
610
REPAIR KIT BRAKE POWER REGULATOR
610
REPAIR KIT BRAKE POWER REGULATOR WABCO
611
REPAIR KIT BRAKE POWER REGULATOR BOSCH
612
REPAIR KIT COVERING BOSCH
613
REPAIR KIT VALVE BOSCH
620
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
622
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
624
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
626
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
628
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
632
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
636
BRACKET BRAKE POWER REGULATOR,5 030110
638
NUT , Replaced By: N913004008001
638
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
638
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
642
SCREW , Replaced By: N308676012026
642
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
642
SCREW CONSOLE TO SIDE MEMBER
642
SCREW CONSOLE TO SIDE MEMBER
650
NUT SUPPORT TO SIDE MEMBER
652
NUT , Replaced By: N910113010000
652
NUT STRAP TO BRACKET
656
LEVER , Replaced By: A6204310839
656
LEVER , Replaced By: A6744310039
656
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
658
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
660
CONNECTOR PULL ROD TO LEVER
661
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
662
CLAMP , Replaced By: N000000000665
662
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
664
NUT
666
WASHER , Replaced By: N000125008443
666
WASHER EXHAUST MUFFLER TO STRAP
668
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
674
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL, NOT USED
674
METAL SPRING BELLOWS ,5 557359
680
BRACKET METAL SPRING BELLOWS,5 356525
682
SCREW METAL SPRING BELLOWS TO BRACKET,4 957941
682
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
684
LOCK WASHER FITTING TO BRACKET
999
GUIDE , Replaced By: N071752014000
999
CUPTO 007 420 68 18,WABCO
999
SEAL RINGKNORR
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
MUFFLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT TRISTOP CYLINDER TO 008 420 95 18, 008 420 97 18, BOSCH
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
REPAIR KIT SEAL RING BOSCH,209
999
BREATHER PIPETO 001 431 83 05,WABCO
999
DIAPHRAGM , Replaced By: A0004314128
999
DIAPHRAGM , Replaced By: A0004314128
999
VALVEWABCO
999
DIAPHRAGMTO 008 420 61 18,009 420 22 18
999
PISTONTO 001 431 83 05,WABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONNECTOR REPAIR SIZE
999
BUSHING , Replaced By: N915062009000
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
HANDLEKNORR
999
PLUGTO 009 420 22 18,008 420 20 18
999
PLUG
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
PROTECTIVE CAPKNORR
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
SPRINGBOSCH
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
PRESSURE REGULATORWABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 433281
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
SEAL RINGKNORR
999
ADHESIVE FOIL GUIDE SIGN
999
BRAKE HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
FITTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
BRACKET BRAKE POWER REGULATOR,5 0301115 234994
999
BRACKET BRAKE POWER REGULATOR
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
999
WASHER STRAP TO SUPPORT
999
CLAMPING SLEEVEKNORR
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
